Description

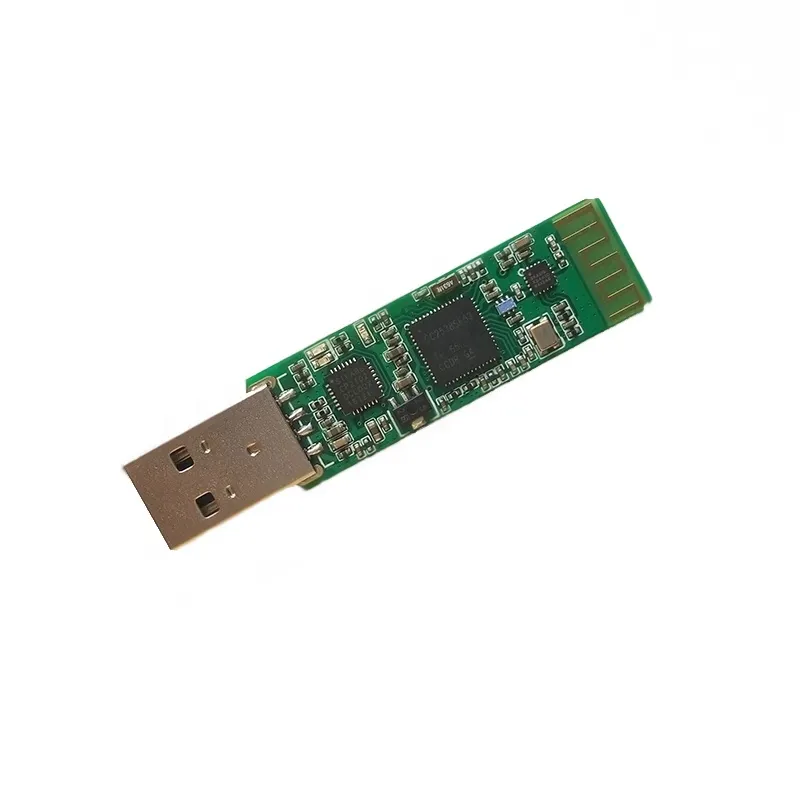

ZigBee USB Dongle Transmission CC2538+RFX2401 Zigbee Wireless Networking 2.4 ghz USB Dongle for PC Support Serial Port
Product Description
ZigBee Dongle products are simple, easy to use and practical. Plug in the computer is a serial device that supports serial port transmission. It can be used for the coordinator or for routing terminals, which is flexible and convenient. Easily enable wireless communication with multiple USB interface devices via zigBee Automatic networking, automatic routing Easy to use, one will learn One-to-one, one-to-many communication
First, product characteristics
Powerful ARM CortexTM M3, 512KB programmable Flash, 32KB RAM
USB 2.0 full speed device (12Mbps)
Built-in onboard PCB antenna
USB 2.0 full speed device (12Mbps)
Built-in onboard PCB antenna
Second, the application area:
IoT low-power wireless applications
Smart grid and home LAN
Industrial instrumentation wireless data acquisition and control
AMR (water, electricity, gas) three meters automatic meter reading
Home and building automation
Wireless alarm and security system
Wireless sensor network
Smart grid and home LAN
Industrial instrumentation wireless data acquisition and control
AMR (water, electricity, gas) three meters automatic meter reading
Home and building automation
Wireless alarm and security system
Wireless sensor network
|
Third, the hardware parameters
|
||
|
Wireless protocol
|
ZigBee IEEE802.15.4
|
|
|
Working frequency
|
2394-2507MHz
|
|
|
main chip
|
TI CC2538SF53,RXC240C,2450BM15A0002,CP2102
|
|
|
antenna
|
Onboard PCB antenna
|
|
|
Transmission rate
|
<250Kbps,Uart baud rate: 19200--115200
|
|
|
External Interface
|
USB: 1
Debug: 1 |
|
|
Transmit power
|
MAX: 4.5dbm
|
|
|
Communication distance
|
maximum visible distance 1000 meters
|
|
|
Dimensions
|
Length and width: 78*18*8mm
|
|
|
Power supply
|
Standard: DC5V, reference range: DC3.6V-5.5V)
|
|
|
Power consumption (current)
|
Less than 100mA
|
|
|
working environment
|
Operating temperature: -10°C~+75°C
Storage temperature: -20°C~+85C Humidity: 5%~95% , no condensation |
|
