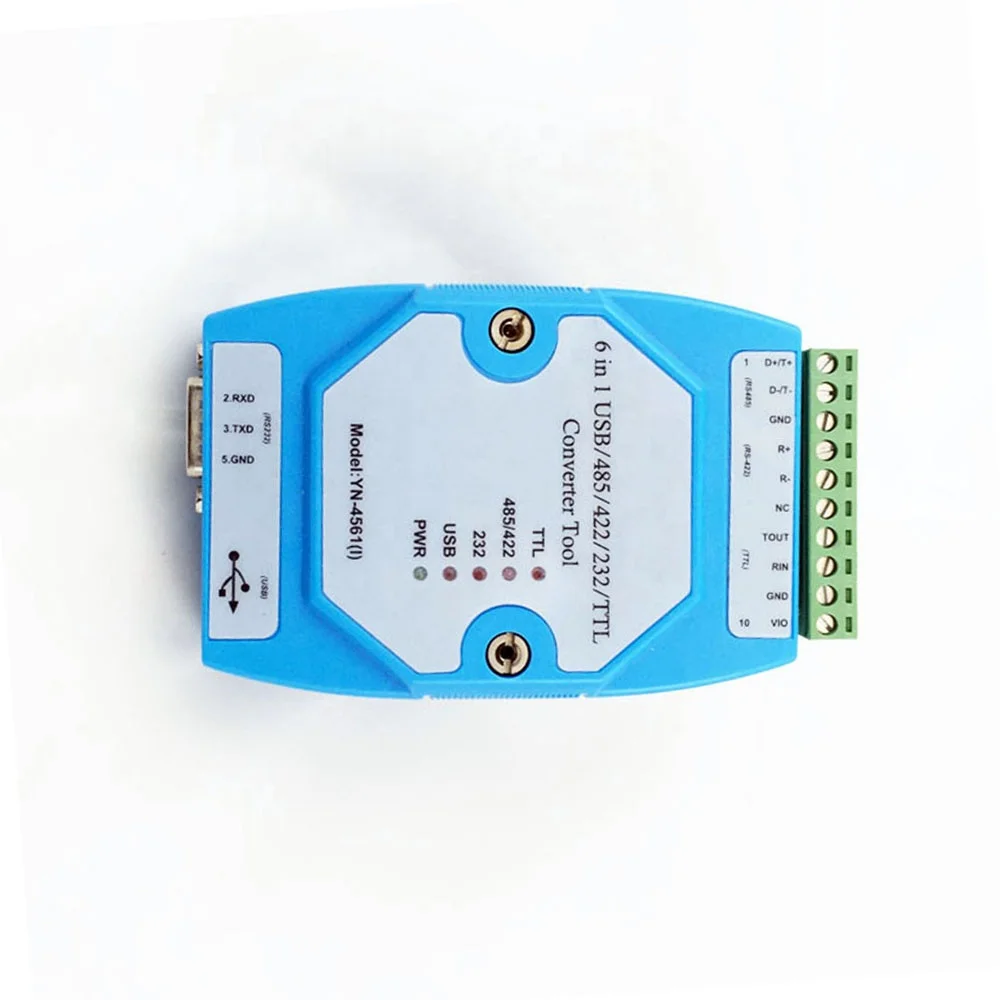

YN4561I CP2102 Converter USB/485/422/232/TTL Serial Port Module USB to RS485 Isolated Converter USB to Uart Adapter
Product Description
In embedded applications, the serial port is a widely used communication peripheral, but embedded engineers are inevitably troubled by the various standards and voltages of the serial port. Due to historical reasons, TTL level interfaces, RS232 level interfaces, and RS485 level interfaces have been formed. Different interfaces have their own characteristics, and the interface preferred by the device is also different.
Feature
· It can switch between USB, RS-232, RS-485 / 422, and TLL levels without the need for jumper dial switch settings. · Provide 1KV isolation between the four terminals to achieve safe isolation conversion. · Plug and play This product is compatible with USB2.0 standard and supports almost all operating systems. Just connect to your computer, install the driver and use it immediately. Data indicator for each data input · Automatic RS-485 data flow control · No external power required, fully powered by USB port
|
Parameter
|
||
|
1
|
Interface characteristics: Compliant with USB2.0 standard, support hot plug and plug and play compatible EIA / TIA RS-232, RS-485 standards support 5V and 3V TTL levels
|
|
|
2
|
Electrical interface: USB standard B-type square port, RS-485 plug-in connection terminal provided with the device RS-232 standard DB9 serial male TTL plug-in terminal block
|
|
|
3
|
Interface protection: RS485 / 232600W lightning surge protection TTL overvoltage and overcurrent protection
|
|
|
4
|
Transmission medium: twisted pair or shielded twisted pair
|
|
|
5
|
Number of nodes: RS-485 / 422 maximum 32 (customizable 128, contact customer service)
|
|
|
6
|
Terminal resistance: externally connected as required
|
|
|
7
|
Transmission rate: RS-232: 50ft (15m) @ 19.2Kbps RS-422, RS-485: 4000ft (1200m) @ 19.2Kbps TTL: 2ft (0.5m) @ 19.2Kbps
|
|
|
8
|
Isolation performance: 1000V photoelectric isolation between the four ports
|
|
|
9
|
Driver support: Windows XP / Server 2003 / Vista / 7/8 / 8.1, MAC, Linux, Android, Wince
|
|
|
10
|
Maximum transmission distance: 1200m (4000ft) @ 19.2kbps
|
|
|
11
|
Status indication: real-time display of on-board transceiver indicator
|
|
|
12
|
Working temperature: -20 ℃ ~ 65 ℃
|
|
|
13
|
Working humidity: 25% ~ 85% (non-condensing)
|
|
