YJ00314 and the Italian Amanero usb iis digital interface with the same solution ATSAM3U1C XC2C64A
Product Description:
All parts of this product are original authentic, unpretentious, pure quality; the use of high-quality original parts, not only the safety and quality are guaranteed, the service life is long, more important is to ensure that the actual performance can achieve the design goals. The pursuit of first-class quality is our consistent aim.
Product details:

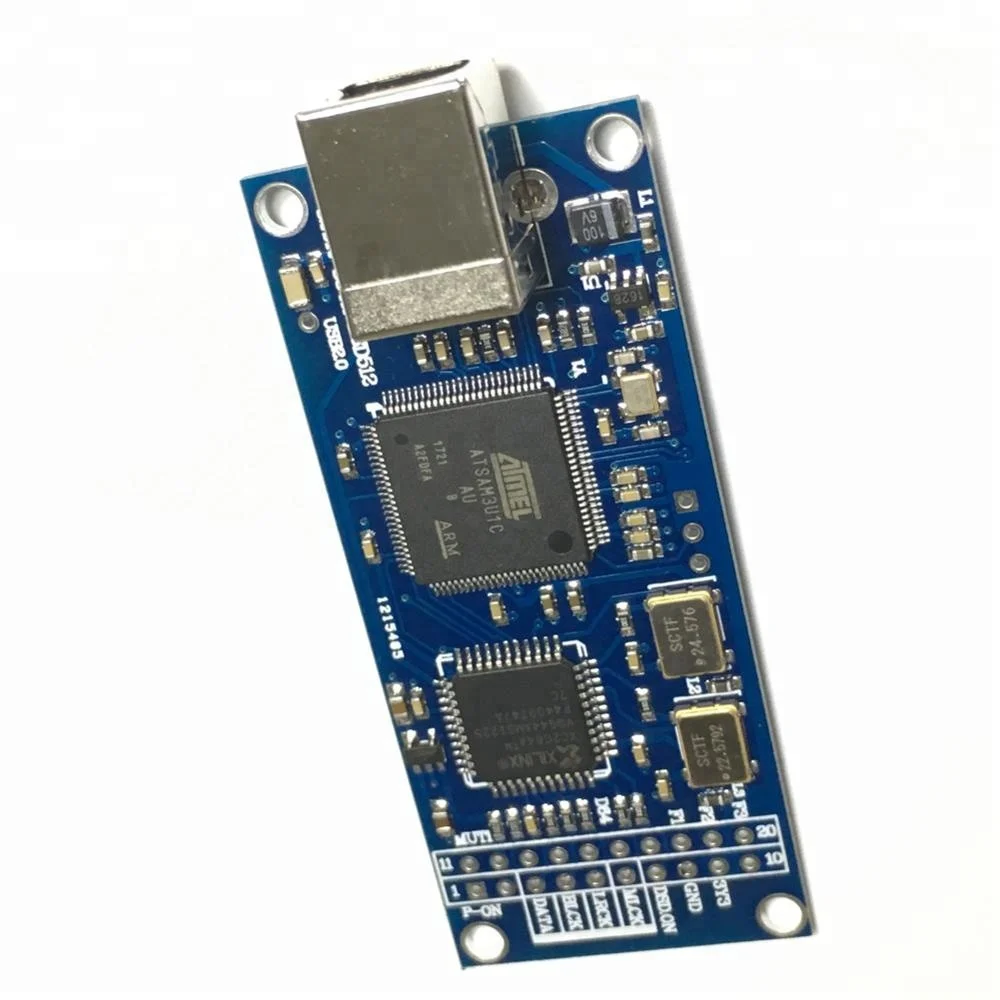

Adopt original ATSAM3U1C XC2C64A.
The resistor uses a chip resistor with an accuracy of ±1% to ensure a good signal-to-noise ratio.
The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current. First-class PCB quality.
This card supports I2S output (DSD format is also available)
Supported Sample Rates
44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz
Output Format
I2S 32bit or DSD64, DSD128 - On Windows DSD256, DSD512 too
Oscillators
2 Low Phase Noise TCXO
Dimension
30x69mm
Note
DSD output enable line to signal an incoming DSD stream.The card supports output mode only.
NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel.
KS/Wasapi/WDM/ASIO Drivers for MS OS XP to Win8 32-64bit included at no fee.
Upon Request
The user can provide a custom USB VID-PID, a custom Device Name and a custom CodeSign
Certificate for WDM drivers. For old applications the max sample rate can be configured to 192Khz
Technical indicators: DSD512, DXD 384k. Amanero supports DSD Native (source) and DoP dual mode.
DSD Native with ASIO can support the highest audio specifications, DoP is basically no need.
