Description
Product Description

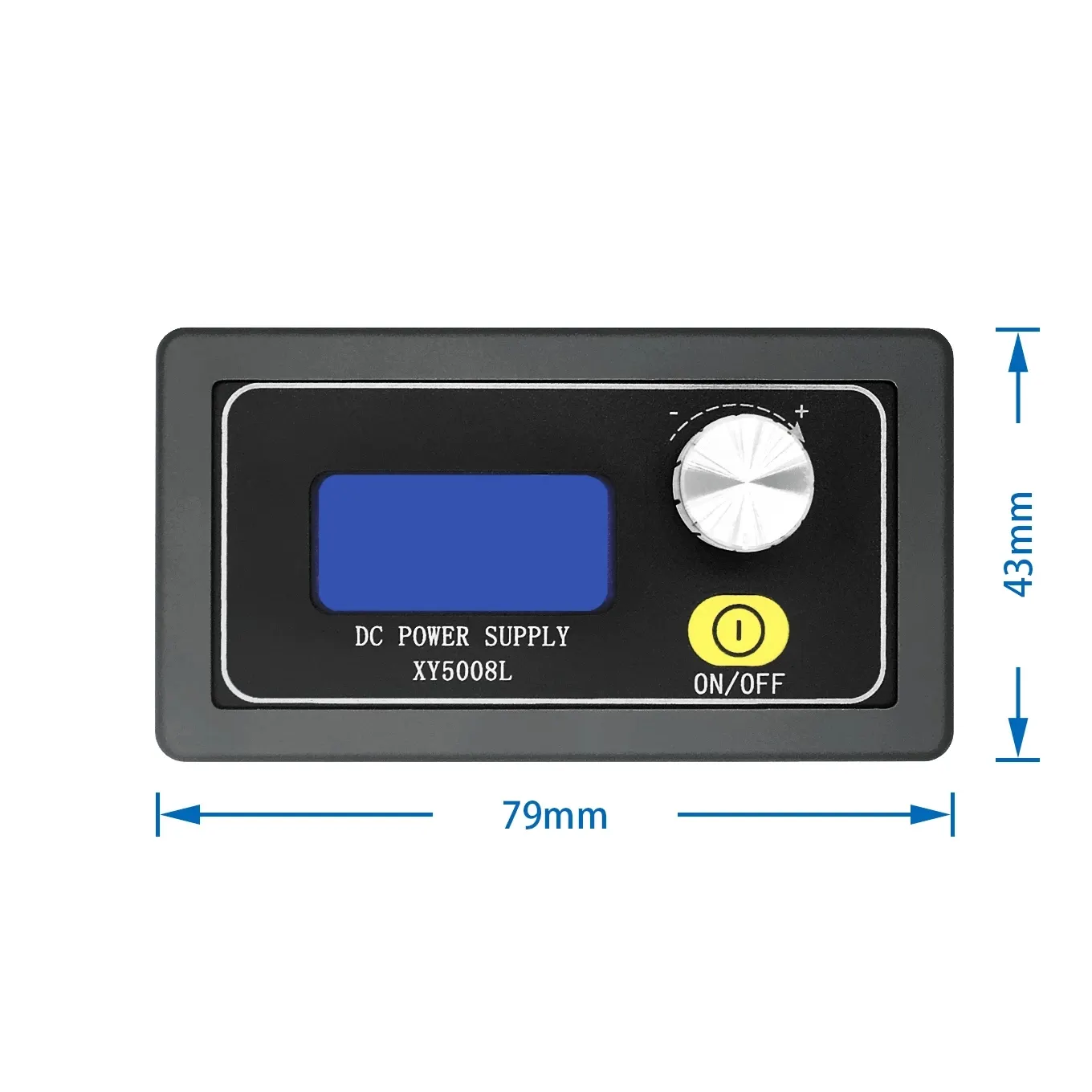

| XY5008L 8A 400W DC6.0-55V Power Supply CNC Adjustable Constant Voltage Current Regulator Step-Down Module Specification: Item Type: DC Power Supply Model: XY5008L Material: Plastic Purpose: Display power supply voltage rise and fall Input Voltage: DC6.0-55V (extreme low voltage 5.5V, extreme high voltage 60V) Output Voltage: DC0V-50V Output Current: 0A-8.1A Output Power: 0-400W Typical Output Ripple: Vpp-150mv Voltage Resolution: 0.01V Current Resolution: 0.001A Voltage Accuracy: ±0.4%+1 digits Current Accuracy: +0.5%+3 digits Capacity: 0-999999AH Energy: 0-999999WH Time: 0-1000 hours Product Size: Approx. 79 x 42mm / 3.1 x 1.7in Setting Interface(how to use): 1. Long press the encoder button for 3 seconds to enter the setting interface 2. Adjust the size of the parameter through the encoder potentiometer, support rapid rotation (rapid increase/decrease), short press the potentiometer button to switch the parameter to be adjusted 3. In the maximum capacity (OAH) / maximum energy (OPH) / maximum operating time (OHP) interface, short press the "ON/OFF" button to select the corresponding function on or off, if it is off, it will display "----" 4. In the maximum capacity (OAH)/maximum energy (OPH) parameter interface, long press the "ON/OFF" button to select the capacity range (9.999Ah/99.99Ah /999.9Ah/9999Ah, 9.999Wh/99.99Wh /999.9Wh/9999Wh ) 5. After setting the parameters, press and hold the encoder potentiometer button for 3 seconds to exit the setting interface, and the setting parameters are automatically saved |
