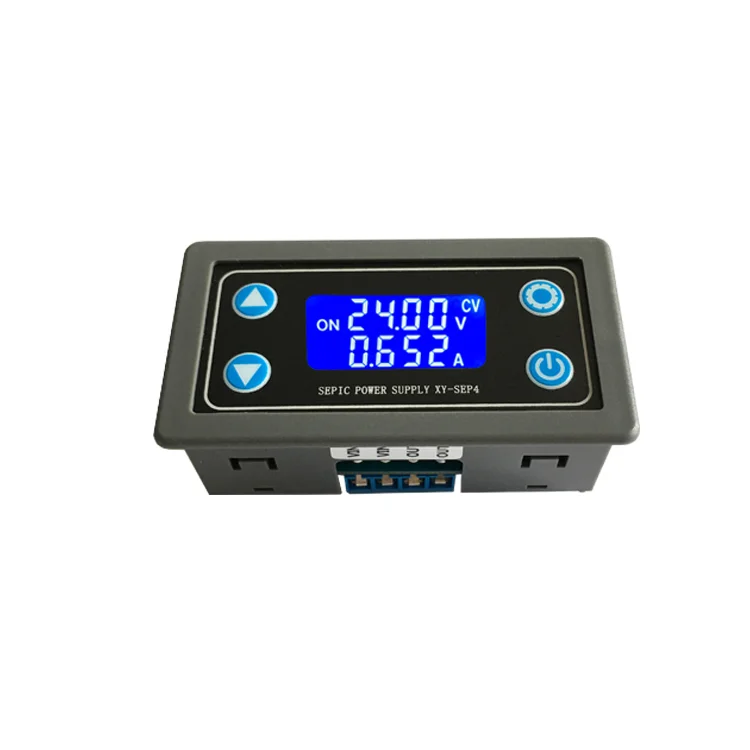

Product highlights:
The product LCD display has clear interface, simple operation and nearly perfect protection mechanism.
Hardware protection: anti-reverse connection protection at the input end, anti-reverse connection without burning; short circuit protection at the output end, anti-reverse injection protection at the output end, no anti-reverse diode is added when charging the battery;
Software Protection: Overvoltage Protection (OTP), Overcurrent Protection (OCP), Overpower Protection (OPP), Overtemperature Protection (OTP), Input Undervoltage Protection (LVP);
Full use of materials, stable performance, wide range of uses.
1. Product parameters:
Input voltage: DC5.0V-30V (less than 4.7V with under-voltage protection LVP)
Output voltage: DC0.5V-30V
Output current: 0-4.0 A
Output power: 35W under natural heat dissipation and 50W under air cooling
Voltage accuracy: ±1%+1 word, resolution: 0.01V, self-calibration
Current accuracy: ±1.5%+3 words, resolution: 0.001A, self-calibration
Conversion efficiency: about 88%.
Soft Start:
Input Reverse Connection Protection: Yes, Reverse Connection No Burning
Output anti-backfilling: Yes, it can be directly connected to the battery.
Output Short Circuit Protection: Yes, it can be directly connected to the output terminal.
Temperature Protection (OTP): Yes, 100 C.
Working frequency: 180KHZ
