Description
Products Description

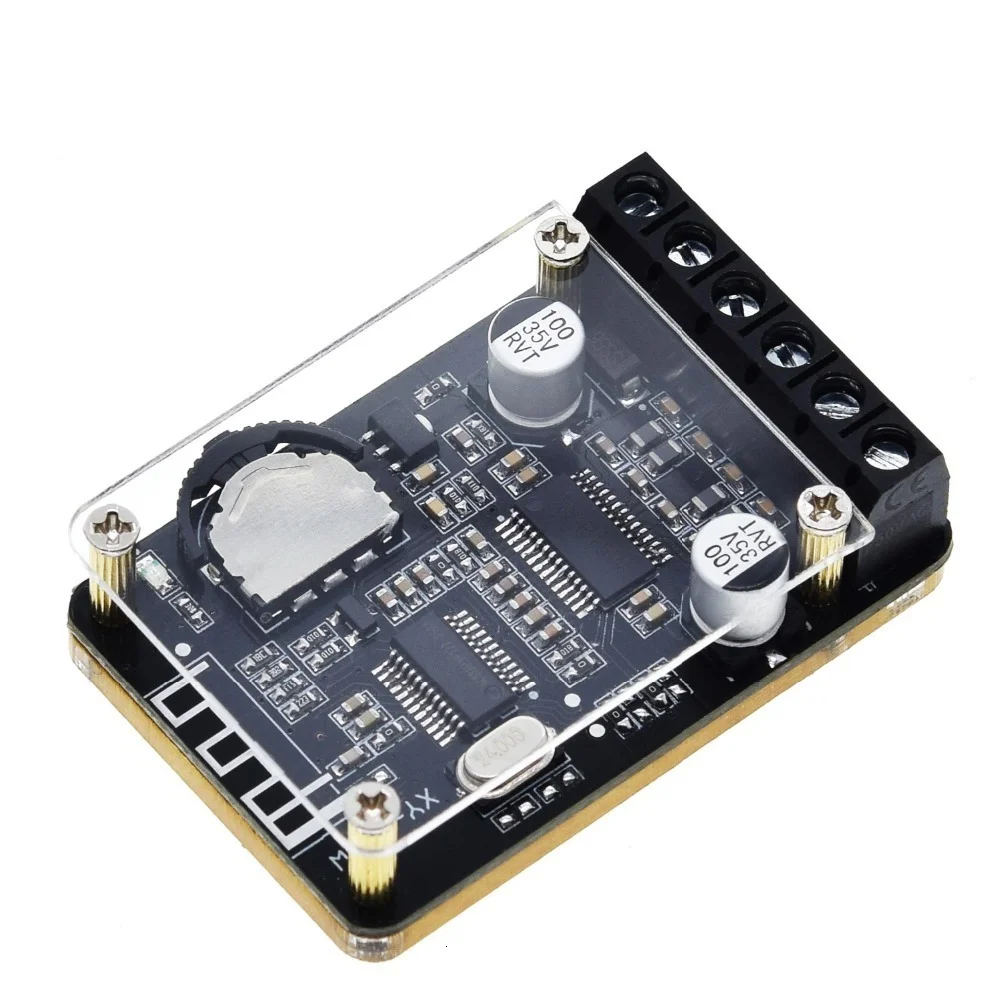

10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V High Power Digital Power Amplifier Module XY-P15W
Name:Bluetooth Digital Power Amplifier Module Model:P15W Working voltage:DC:8-24V Bluetooth Version:5.0 Transmission distance:15m (visible occlusion) Number of vocal tracts:Dual Channel (Stereo) Output power(@1KHz): 16W*2 @12V 42 10W*2 @12V 82 15W*2 @16V 82 20W*2 @20V 82 30W*2 @24V 82(Need to add radiator) Adapted horn: 4Ω(8-12V Power supply) 8Ω(8-24V Power supply) 16Ω(8-24V Power supply) Modular protection mechanism: Back-connection protection of power supply Short circuit protection Self-recovery overheating protection
USE PRECAUTIONS 1,Use power amplifier board as far away from WIFl signal as possible (router) 2,Recommended supply voltage is 8-24V, over 26V, the chip will burn out. 3,The power supply shall not exceed 12V for 492 speakers and 24V for 8ohm speakers. 4,Power supply current recommendation more than 2A 5,The working power of the module exceeds 20W*2, and the radiator is needed. 6,Horn line should not be too long to ensure that 1 meter is suitable 7,Pay attention to electrostatic protection, contact between power amplifierboards need to release the hand electrostatic, to avoid electrostatic chipbreakdown,Bluetooth chip is more sensitive to electrostatic. 8,lt is suggested that the rated power of the horn be adapted to 30 W or moreto avoid the burning of the horn due to heat. 9,There is a protective film on acrylic.Please tear it off when assembling
