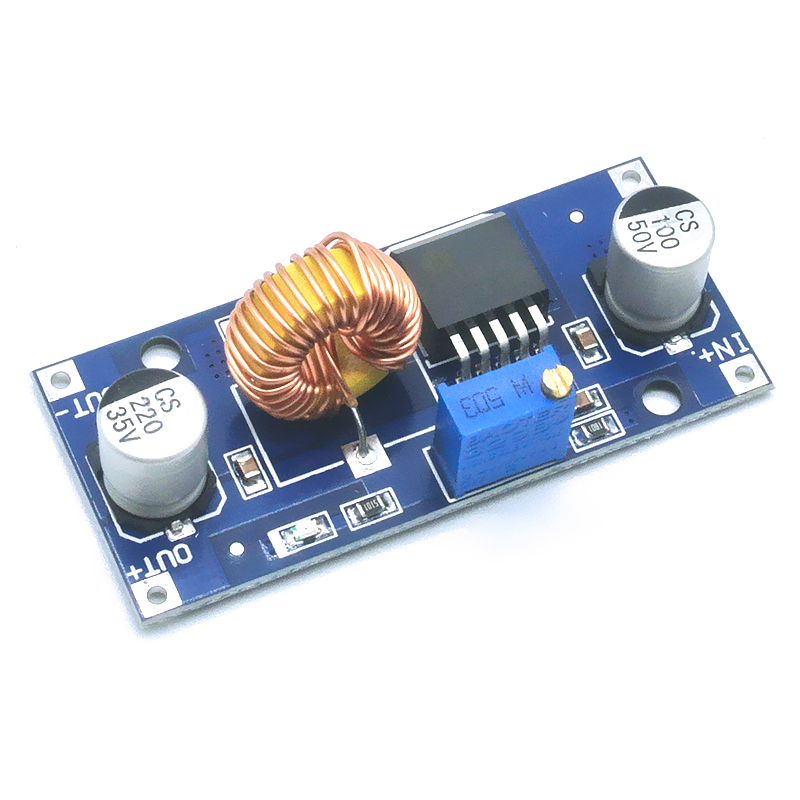

XL4015 5A DC 4~38V 96% Efficiency DC Buck Converter Module Adjustable Step down Power Supply Module
The vast majority of 2596 on the market can be promoted to 3.0A current, in fact, it can be 1.8A, the total power is about 15W, in many cases the power can not meet the requirements; The step-down module can easily reach 4.5A, power up to 75W, has a very high cost performance!
Module highlights: 5A high power high efficiency low ripple strip power indicator light free heat sink! Module performance and characteristics: Module nature: Non-isolated step-down module (BUCK) Input voltage: 4-38V (Input please try not to exceed 38V) Output voltage: 1.25-36V continuously adjustable Output current: 0-5A Output power: 75W Operating temperature: -40~+85 degrees Operating frequency: 180KHz Conversion efficiency: 96% Load adjustment rate: S (I) ≤ 0.8% (input 24V, output 12V, measured when the load changes from 1 to 4.5A) Voltage adjustment rate: S (u) ≤ 0.8% (measured when the voltage changes from 18 to 32V when the output is 12V and 4A) Power indicator: Yes Short circuit protection: have (limited current 8A) Overtemperature protection: there is (automatically shut off output after overtemperature) Input backconnection protection: none (if necessary, please insert high current diode in the input string) Installation: 2 3mm screws Connection mode: Welding, with V-IN as input and V-OUT as output Module size: 54mm long, 23mm wide and 15mm high
Product Description
Scope of application:
This module can be used in the input voltage is higher than the output voltage of the step-down field, such
as battery, power transformer, DIY adjustable voltage regulator power supply, 24V vehicle pen meter this power supply, industrial
equipment step-down, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc.
as battery, power transformer, DIY adjustable voltage regulator power supply, 24V vehicle pen meter this power supply, industrial
equipment step-down, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc.
Certificates & Production Processes
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
