Description
Products Description

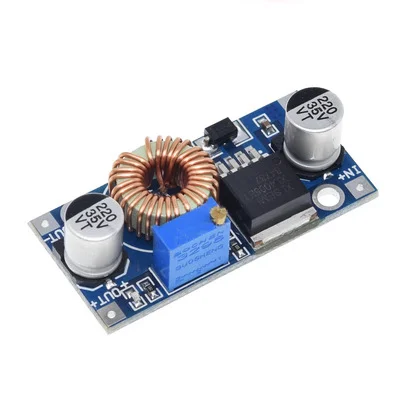

XL4005 DC-DC adjustable step-down 5A 75W power Supply module
1/ Model Name:DC-DC 5A high current step-down power supply module
2/ Module nature:Non-isolated buck
3/ Rectification method:Asynchronous rectification
4/ Input voltage:5V-32V
5/ The output voltage:0.8V-24V
6/ Output current:Peak value 5A (work above 3.5A should strengthen heat dissipation)
7/ Conversion efficiency:Up to 90%
8/ Operating frequency:300KHz
9/ Output ripple:30mV (when no load)
10/ Load Regulation:±0.5%
11/ Voltage regulation rate:±2.5%
12/ Operating temperature:-40℃ to +85℃
13/ Peripheral size:42*21*14 (length * width * height) (mm)
2/ Module nature:Non-isolated buck
3/ Rectification method:Asynchronous rectification
4/ Input voltage:5V-32V
5/ The output voltage:0.8V-24V
6/ Output current:Peak value 5A (work above 3.5A should strengthen heat dissipation)
7/ Conversion efficiency:Up to 90%
8/ Operating frequency:300KHz
9/ Output ripple:30mV (when no load)
10/ Load Regulation:±0.5%
11/ Voltage regulation rate:±2.5%
12/ Operating temperature:-40℃ to +85℃
13/ Peripheral size:42*21*14 (length * width * height) (mm)
Features: Using high-power magnetic surround inductor and high-current control chip, small size, high power and high efficiency.
Certificates & Production Processes
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
