W20:100W pure step-down version



Note: The W20 module is a pure buck module, there is no boost function, if you want to use 20V output, you must use 21V DC power supply above

100W output power can only be reached at PD output (PD20V, 5A)



Built-in fast charge chip with V00*C, support 5V version V00*C mobile phone low voltage fast charge, support 7P fast charge (only support V00*C version below 20W)

Does not support the 30W version of VOO*C4.0 new version of WACRP, etc., only support One Plus /ODDO these mobile phones below 20 watts V00*C fast charge



PD broadcast: Input voltage higher than 19V can broadcast 20V PD (need stable output 20V PD voltage please use 21V or more power supply, the circuit has voltage drop)

Single input version: DC5.5x2.5 input (voltage range 12-28V)



Dual input version: (Only one port can be used at a time)

DC5.5x2.5 input (voltage range 12-28V)

TYPE-C PD input (voltage range 12~20V)



Both versions have 2 outlets

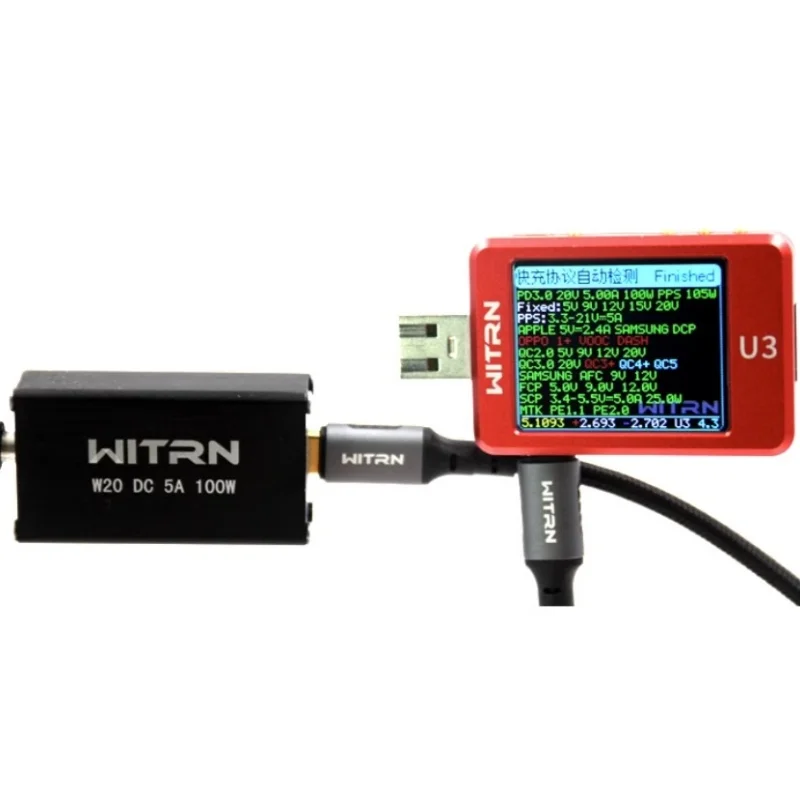

A Output: Can output the fast charge protocol in the figure above

C output: PD and PPS output



The load is inserted into the two output outlets at the same time, and the output is only 5V
