Description

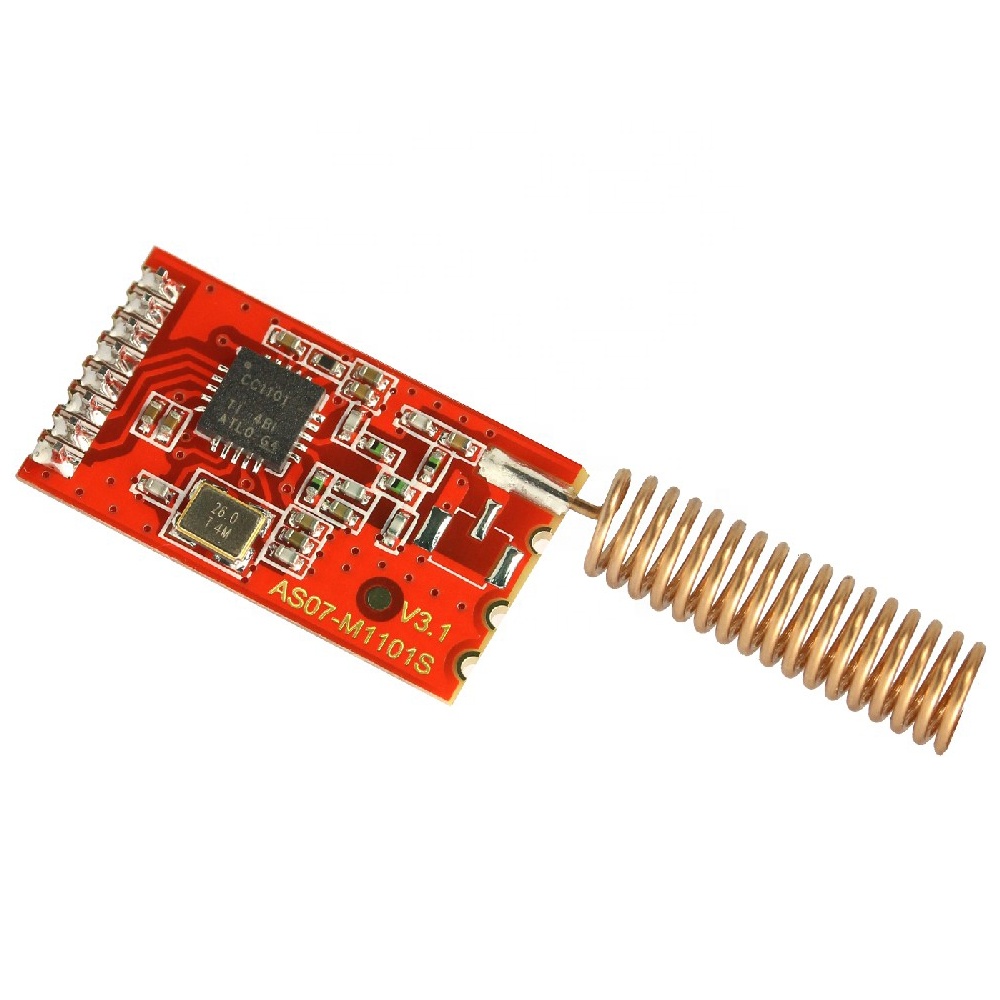

Wireless RF Transceiver Module 433M CC1101 Data Transmission NRF905 SX1212 si4432 with PA and LNA Power Amplifier Chip
Product Description
Feature
1, This module is a micro-power wireless data transmission module (meet the industrial temperature and humidity requirements) 2. This module is designed for mature and stable mass production, suitable for a variety of application scenarios 3, The module uses a high-quality spring antenna, and its performance is very similar to that of the external antenna. Users can also choose the SMA external antenna version. 4, Ultra-small size. All 0402 components are used, making the module smaller in size and better in performance than 0603. Interface compatible with all nRF24L01P wireless modules 5. Using high-quality imported components, all the resistance-capacitance senses are imported 10ppm, small-volume packaging, and the overall performance is very good 6. Support low power consumption mode, through proper configuration of CC1101 module, the current of the whole board can be controlled to a minimum of 0.5uA
Specification
|
item
|
value
|
|
Product model
|
AS07-M1101S
|
|
RF chip
|
CC1101
|
|
Center frequency
|
433M
|
|
Maximum power
|
10mW
|
|
Communication distance
|
1000 meters
|
|
Module features
|
All industrial-grade components, superior performance, ultra-small size, super compatibility
|
Installation Instructions
Pin description
1, VDD, power supply, must be between 1.9-3.6V 2, GDO0, module information output pin, see CC1101 manual for details 3, CSN, input, module chip select pin, used to start a SPI communication 4, SCK, input, module SPI bus clock 5, MOSI, input, module SPI data input pin 6, MISO/GDO1, input, module SPI data output pin 7, GDO2, output, module information output pin, see CC1101 manual for details 8, GND, output, ground, connect to the power reference ground
