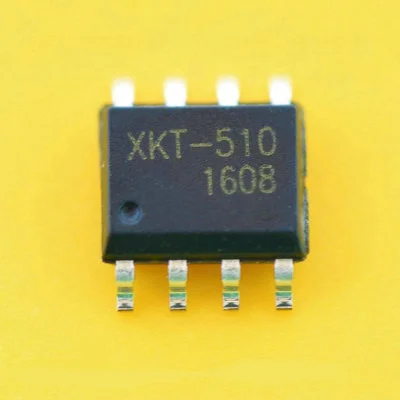

Wireless Charging Battery Management IC Wireless Power Transmission Chip XKT-510 Wireless Power Supply Chip
Product Description
XKT-510 series integrated circuit is specially used in wireless sensor intelligent charging and power supply management system, and the reliability is good. XKT-510 is responsible for processing the radio energy transmission function in the system, adopting the principle of electromagnetic energy conversion and matching the receiving part for energy conversion and real-time monitoring of the circuit; responsible for the intelligent control of fast charging of various batteries, XKT-510 only needs a small amount of The external components can be made into a wireless fast charger and wireless power supply.
Characteristics
* Automatically adapt to the power supply voltage adjustment function enable it to work over a wide range of voltages
*Automatic frequency lock
*Automatic negative detection load
*Automatic power control
*Intelligent detection system, free of debugging
*Working voltage: DC 3~12V
*Working frequency: 0~5MHZ
*Integrated, requires several ordinary peripheral components
*Automatic frequency lock
*Automatic negative detection load
*Automatic power control
*Intelligent detection system, free of debugging
*Working voltage: DC 3~12V
*Working frequency: 0~5MHZ
*Integrated, requires several ordinary peripheral components
Application
Battery charging, wireless direct power supply for medical products, security products, waterproof products, toy products, adult products, digital products, MP3, MP4, mobile phones, handheld household appliances, etc.
The upper limit of work
Working temperature: -55°Cto+125°C Storage temperature: -65°Cto+150°C Working voltage: 15V Output drive current: 800mA
Specification
|
Pin No.
|
Function
|
Description
|
|
1
|
VDD
|
Power Positive
|
|
2
|
NC
|
Empty
|
|
3
|
OUT
|
Function adjustment
|
|
4
|
GND
|
ground
|
|
5
|
NC
|
Empty
|
|
6
|
AO
|
Function adjust
|
|
7
|
AIN
|
voltage detection
|
|
8
|
FIN
|
Frequency detection
|
