Description
Wireless batterless RFID Temperature sensor Monitor Tags for Industry use busbars voltage electricity
This is a Demo Kit for RFID Temperature sensor Monitor Tags:
It includes:
Reader writer 1set Circularly polarized antenna 1PCS power adapter 1PCS radio frequency extension cable 1PCS Serial communication cable LTU31 chip ×3pcs 30*30 ceramic tag 1pcs 25*9*3 ceramic tag 1pcs 19*9*3 ceramic tag 1pcs FPC Temperature Tag 1pcs PCB Temperature Tag 1pcs Electricity Temperature Tag 3pcs LED FPC Temperature Tag 1pcs Demo software 1set
Features:
PCB RFID Temperature Sensor Tag Feature 1. Long Read Range 2. High Accuracy temperature sensoring 3. Suitable for non-metallic application

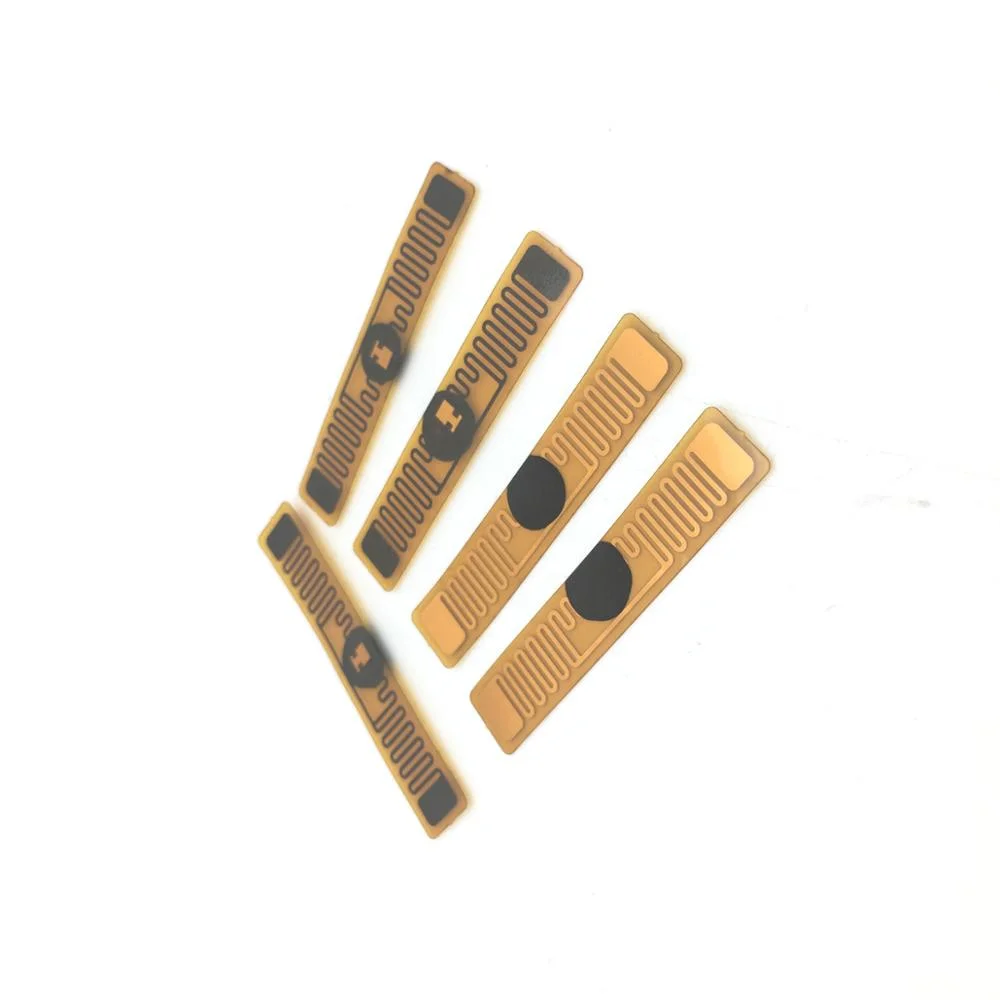

FPC RFID Temperature Sensor Tag Feature 1. Long Read Range 2. High Accuracy temperature sensoring 3. Small size 4. Flexible installation 5. Suitable for single product in fresh food, cold chain, vaccine inspectation application etc
Product Name
GETSMART UHF RFID Temperature Sensor Tag
Material
PCB, FPC
Dimension
84*22*1.5mm, 60*20*0.1mm
Protocol
EPC Class 1 Gen 2 V1.2
Working Frequency
902Mhz~928Mhz
Read Range
PCB, about 7-8m; FPC about 3.5m
Chip
LTU27-WF2
TID memory capacity
64 bits
Epc Memory capacity
96 bits
User Memory capacity
288 bits (192bits for read&write, the rest for read only
Working Temperature
from -25℃~+125℃
Storage Temperature
from -25℃~+225℃
IP level
IP65
FAQ
Q: Are you trading company or manufacturer ?
A: We are a leading manufacturer and exporter of Smart Cards, RFIDcards, RFID tags, NFC Tags and
PVC cards.
More than 10 years' experience in smart card and RFID card manufacturing More than 10 years of experience in International trade, serving customers with more than 100 countries and regions Strong technical strength, can quickly resolve customer problems OEM/ODM service are available.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the existing sample for free charge but do not pay the cost of freight.
Q:How long is your lead time?
A: It takes about 8-12 work days.
Q: How long is your delivery time?
A: It depends which forwarder do you prefer. Usually we choose excellent forward such as UPS, DHL and so on and it takes 3-8 working days. We also can find cheaper forward for you.
Q: What is your terms of payment ?
A: 100% T/T, Western Union in advance, paypal If you have another question, pls feel free to contact us.
