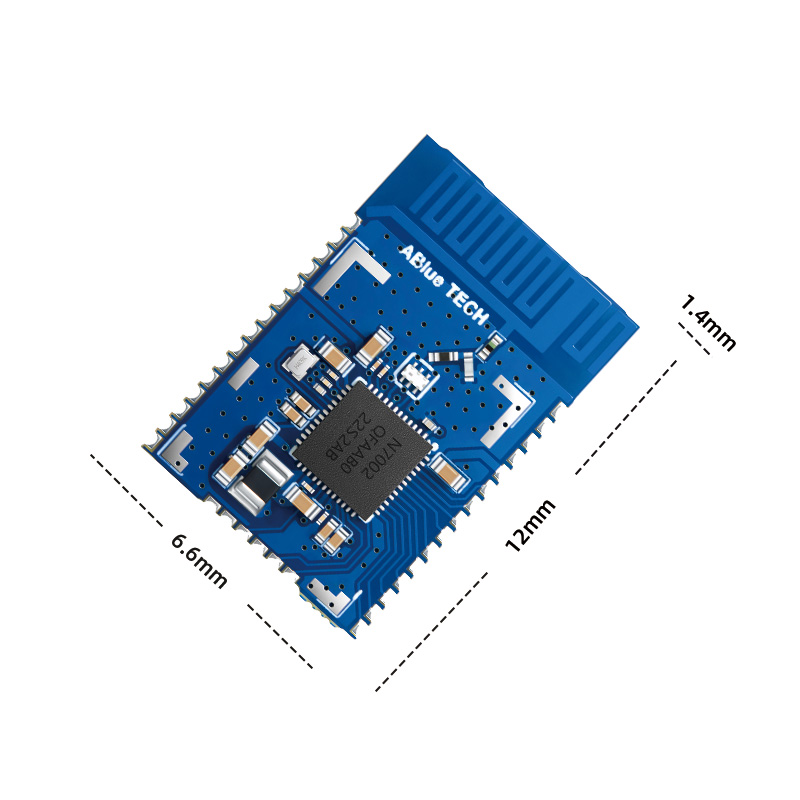

WiFi 6 2.4G 5G Dual Band IEEE 802.11 ax and IEEE 802.11 a/b/g/n/ac WiFi Module

WiFi 6 2.4G 5G Dual Band IEEE 802.11 ax and IEEE 802.11 a/b/g/n/ac WiFi Module

WiFi Module
$10.90
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.

Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China

Support Department

Email: support@rfid-life.com

Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed
Description
Specification
Chipset
Nordic nRF7002
Bluetooth
WiFi6
Dimension
25.8*17.5*2mm
Antenna Type
2.4G/ 5G Dual Band Antenna
Protocol
IEE802.11.ax(Wi-Fi6)/IEE802.11.a/b/g/n/ac
Transmit Power
+5~+19 dBm@2.4G/+5~+15 dBm@5G
Receiver Sensitivity
-96.5dBm@2.4G /-90.5dBm@5G
RX(2.4G)
~56mA
TX(2.4G+15dBm)
~165mA
RX(5G)
~59mA
TX(5G+15dBm)
~244mA
VBAT Power Supply
2.9~4.5V
VDDIO Power Supply
1.62~3.3V
Operating Temperature
-25~+85°C
* Supports conjunction with non-Nordic host devices. * Supports all wireless protocols used in Matter, Bluetooth LE for commissioning,Thread for low power mesh, and Wi-Fi for high-throughput
* Supports 20 MHz wide channels, 1x1 (SISO) operation and can provide a PHY bandwidth of up to 86 Mbps (MCS7)
* Supports tation and Wi-Fi Direct operation modes as well as Soft AP (Wi-Fi 4 operation only)and simultaneous Station + Soft AP/Wi-Fi Direct/Station modes.
* Supports Target Wake Time(TWT),Orthogonal Frequency Division Multiple Access (OFDMA), BSS Coloring
* Supports Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED a/b/g/n/ac, Wi-Fi Enhanced Open
* Supports WMM, WMM - Power Save, Wi-Fi Agile Multiband , Wi-Fi Direct
* Base on Nordic nRF7002 Wi-Fi6 companion IC with integrated RF
* Maximum output power +19 dBm
* Adjustable output power from +5 to +19 dBm * Single-ended 50 antenna port(s) * 56 mA RX 2.4 GHZ,58 mA RX 5 GHZ * SPl or QSPI
host interface, 3 or 4-wire coexistence interface
* 165mA@+15dBm,2.4GHZ,VBAT=3.6V; 244mA@+15dBm,5GHZVBAT=3.6V
