Description
Wideband Synthesizer with Integrated VCO Lock Detect ADF4351 Phase Locked Loops MCU Control PLL Frequency Synthesizer
Product Description

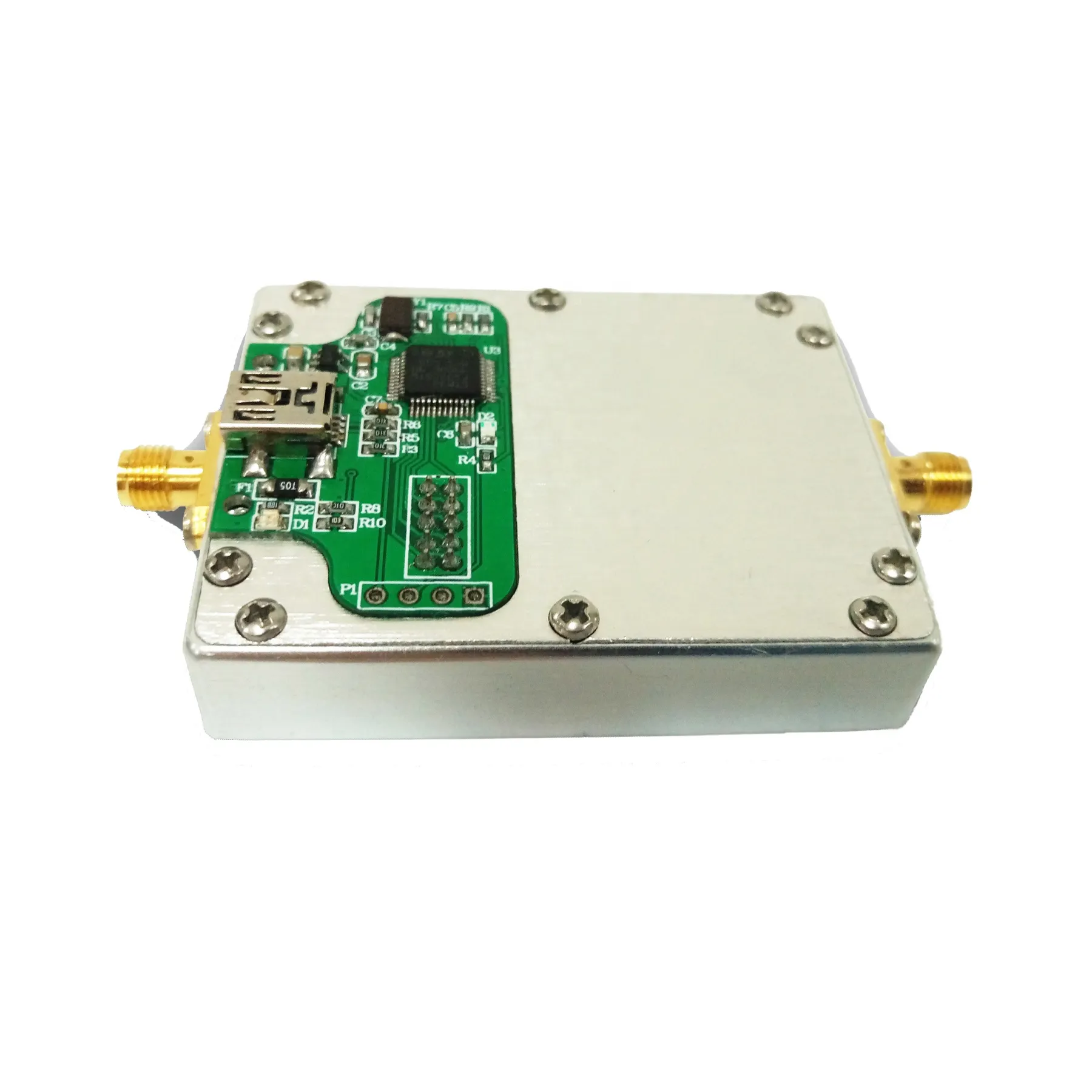

The phase-locked loop has a cavity box, and the STM32 single-chip microcomputer main control module is externally attached, which fits well with the cavity box, is beautiful and easy to use. The internal phase-locked loop is powered by a linear voltage regulator chip, has a low ripple, and can effectively control the spurious signals, so that the spectral purity and the phase-locked loop frequency stability are better.
When used with an external loop filter and an external reference frequency, the ADF4351 can implement a fractional-N or an integer-N phase-locked loop (PLL) frequency synthesizer. The ADF4351 features an integrated voltage-controlled oscillator (VCO) with a fundamental output frequency range of 2200 MHz to 4400 MHz. In addition, the 1/2/4/8/16/32/64 divider circuit allows the user to generate as low as possible. 35 MHz RF output frequency. For applications requiring isolation, the RF output can be muted.
The mute function can be controlled either by pins or software. An auxiliary RF output is also provided and can be turned off when not in use. All on-chip registers are controlled through a simple three-wire interface. The device uses a 3.0V to 3.6V supply and can be turned off when not in use.
When used with an external loop filter and an external reference frequency, the ADF4351 can implement a fractional-N or an integer-N phase-locked loop (PLL) frequency synthesizer. The ADF4351 features an integrated voltage-controlled oscillator (VCO) with a fundamental output frequency range of 2200 MHz to 4400 MHz. In addition, the 1/2/4/8/16/32/64 divider circuit allows the user to generate as low as possible. 35 MHz RF output frequency. For applications requiring isolation, the RF output can be muted.
The mute function can be controlled either by pins or software. An auxiliary RF output is also provided and can be turned off when not in use. All on-chip registers are controlled through a simple three-wire interface. The device uses a 3.0V to 3.6V supply and can be turned off when not in use.
Product Paramenters
|
Module model
|
ADF4351-cavity
|
|
Module type
|
broadband PLL frequency source
|
|
Power supply voltage
|
DC-5V
|
|
Module current
|
210mA (MAX)
|
|
Module communication interface
|
USB
|
|
Module communication protocol
|
serial port instruction
|
|
Module control mode
|
upper computer instruction
|
|
Module reference frequency
|
100MHz (default); external input clock
|
|
Reference frequency signal amplitude
|
700mVpp(MIN)
|
|
Frequency stability
|
greater than 25PPM
|
|
Phase noise
|
different frequency phase noise
|
|
Module output frequency range
|
35MHz-4.4GHz
|
|
Frequency control step
|
0.1MHz
|
|
Frequency sweep step time
|
1mS(MIN)
|
|
Module output power
|
7dBm (MAX); different frequency output power is different
|
|
Module output interface
|
SMA; 24-hour salt spray anti-oxidation
|
|
Module output signal
|
sine wave or square wave
|
|
Module output channel
|
1 way
|
|
Module output impedance
|
50 ohm matching
|
|
Signal characteristics of the module
|
35MHZ--2.2GHz square wave (fundamental frequency division) 2.2GHZ--4.4GHz sine wave (fundamental wave)
|
|
Module features
|
host computer USB communication port, host computer software control phase-locked loop module, the module can achieve 35MHz-4.4GHz frequency output, frequency, frequency sweep, frequency hopping and other basic functions
|
|
Application
|
RF signal frequency generator, sensor excitation source, line loss attenuation detection, scanning clock signal generator
|
|
Module specifications
|
61*47*13mm; length*width*height-PCB size
|
|
Module working temperature
|
0-75℃; civil grade
|
