Description
Product Description
Product name
Access control reader
Power Supply
DC 12V（±5%）
Consumed Current
45mA(standby ) 70mA(Work）
Support Cards
S50 / S70 etc.
Operating Distance
Card:30--100mm , Keychain:30-40mm
Reader Time
<200ms
Format
Wiegand 26 & Wiegand 34 (Setting by yourself)
Distance of transmission
100M
Service Temperature
-10℃~+60℃
Size
86mm×86mm×21mm
Weight
About 170G
Status Indication
1PC LED (Red means standby, Green means reader success)
Built-in horn
buzzer, can control LED and buzzer

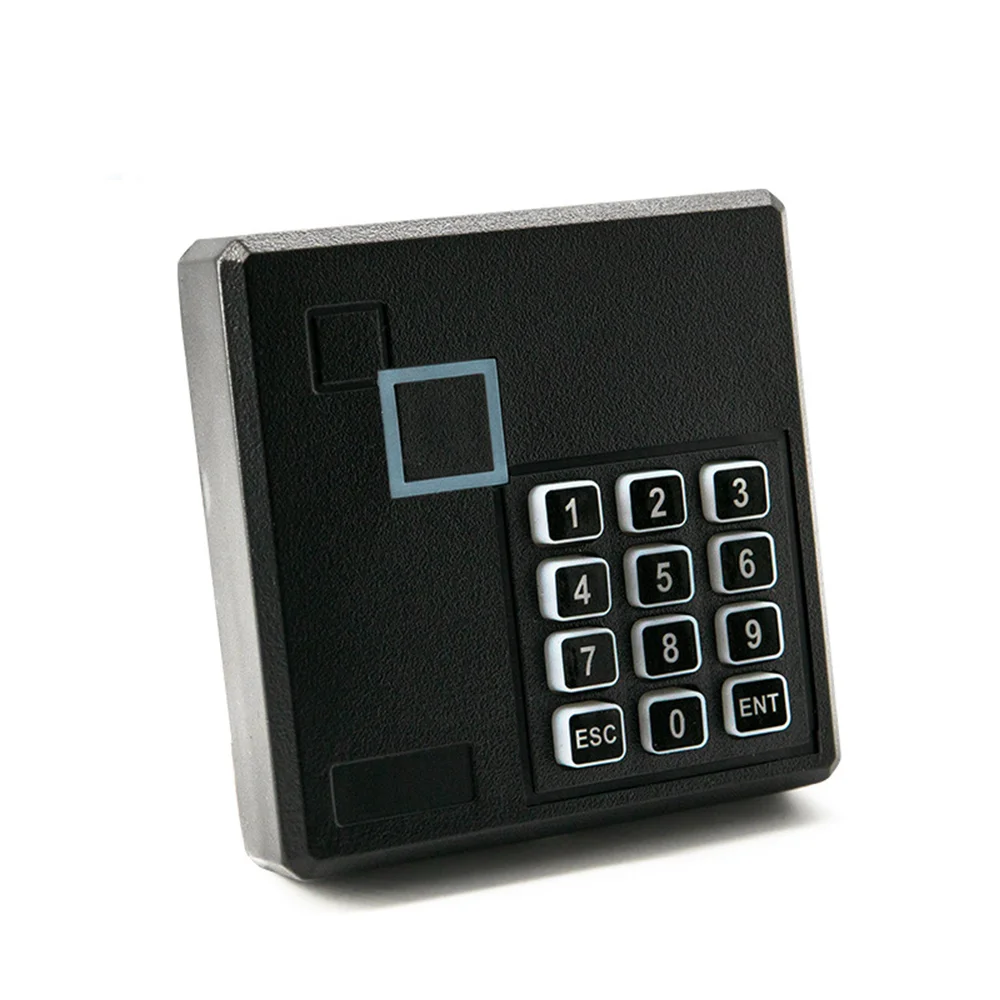

R304E(13.56MHz) is a password key access contronl card-reader. You can open the door by password or IC card. It's a high performance, inexpensive 13.56MHz RFID access control reader. You can select the output formats，such as Wiegand 26 or Wiegand 34. It suitable for access control, attendance, fees, security, patrol and other RFID applications.
