Description

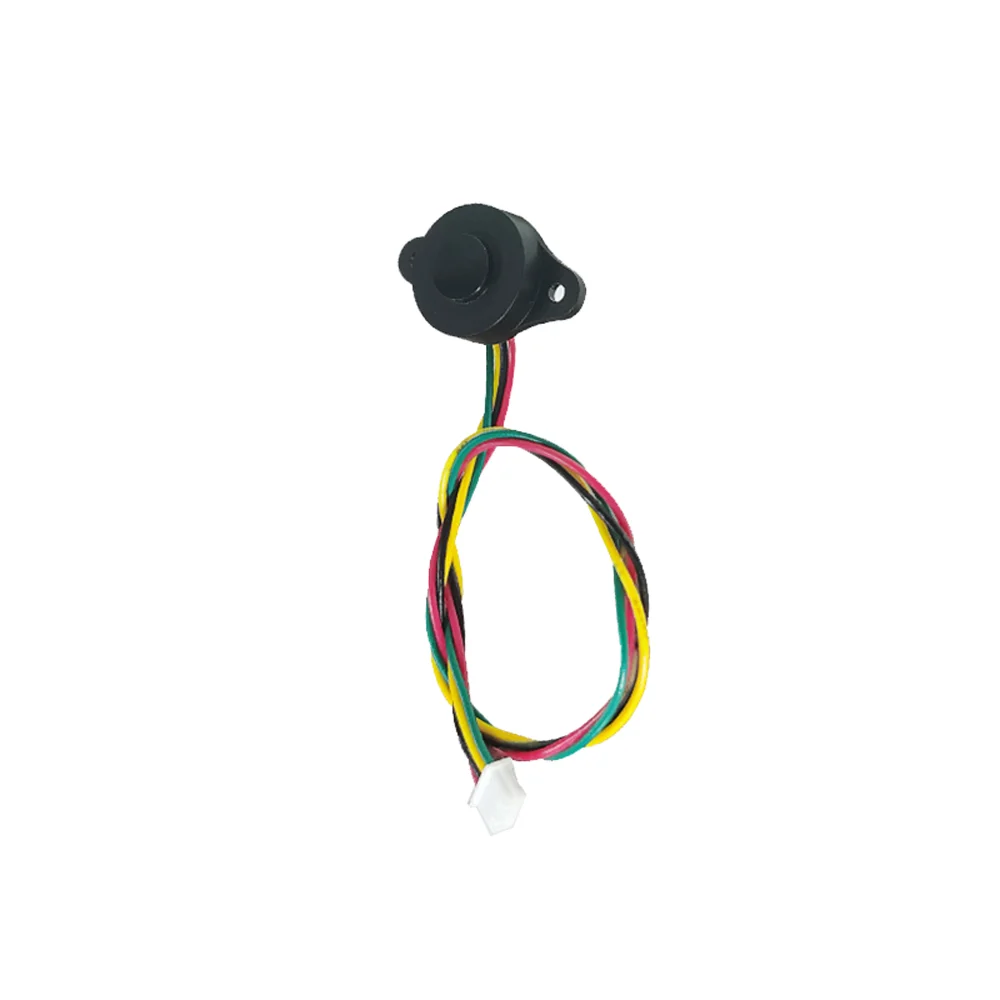

Waterproof UART IIC Switching Mini Laser Range Finder Hunting Lase Measure Distance Meter Lidar Laser Range Sensor
Product Description
1. Normal temperature measurement accuracy When the distance value is less than or equal to 25CM: 1CM When the distance value is ≥25CM: S*4%CM 2. Small blind spot The blind spot is as small as 2cm "close" in front of the eyes 3. Small FOV detection angle The maximum measurement angle is about ~19° (7.5×100CM white PVC pipe at 100CM) 4. Fast response MS-level response time, typical data output time 30MS
Specification
item
value
Working voltage
DC3.3 to 5V
Empty current
<5mA
Working current
<19mA
Blind spot
2CM
Range measure
2 to 400cm
Angle
19 degree
Output
UART automatic/ UART controlled/ Switch/ IIC
Application
Robot obstacle avoidance\horizontal ranging\human body sensing\object approach and presence detection
