Description
Products Description

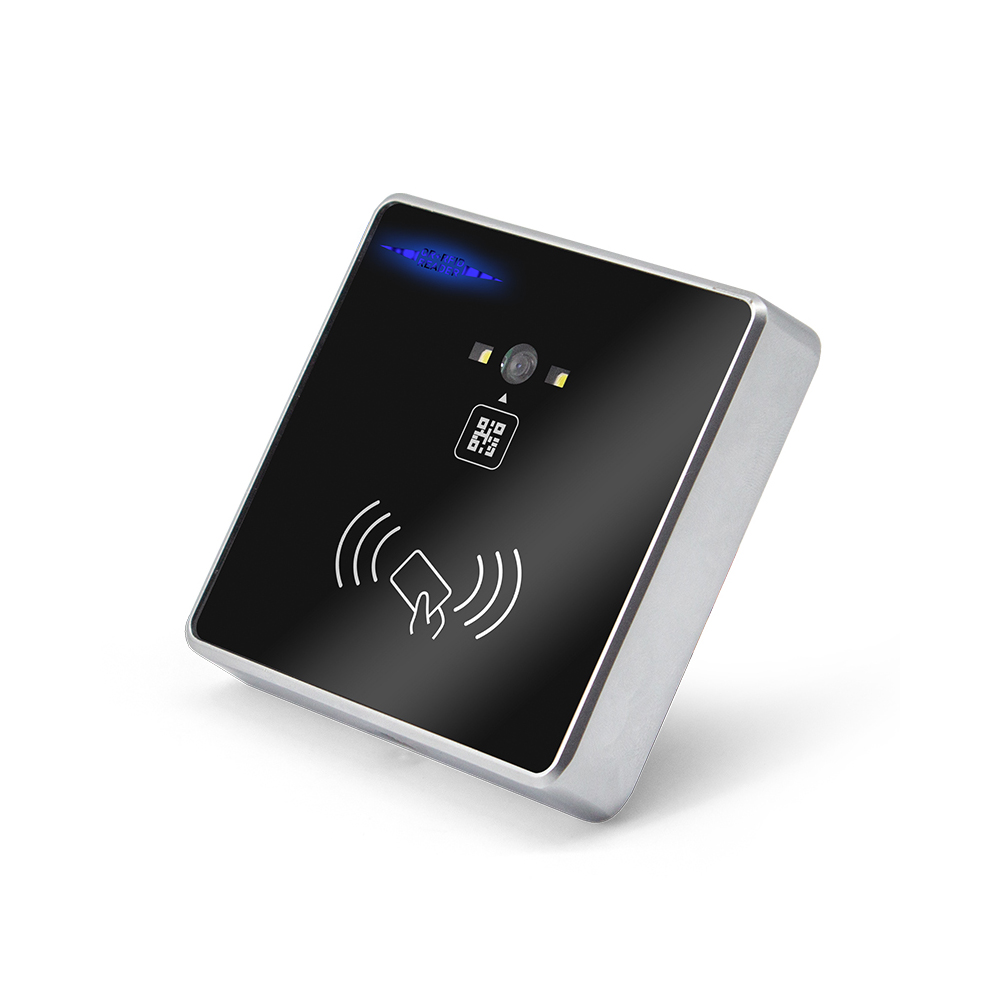

Two-dimensional code (QR) + RFID access control reader is a new generation of multi-functional reader developed by our company. The appearance of the product adopts the standard 86 box industrial standard, with fast scanning speed, high recognition rate and strong compatibility. It can be connected to any controller supporting Wiegand input, and is suitable for various application scenarios.
At present, it is widely used in business office building visitor entry personnel management, scenic spot tourism personnel management, community visitor access management, administrative hall access control management, supporting gate, access control, visitor machine, smart home and so on; to achieve a perfect upgrade for the traditional card swiping system of various industries.
Dimensions
|
86mm×86mm×18mm
|
||||||
Weight
|
150g
|
||||||
Color
|
White And Black
|
||||||
Working voltage
|
DC8~12V ,Support Custom
|
||||||
Operating Frequency
|
13.56mhz
|
||||||
Operating Distance
|
2-5cm (RFID),QR code :1-20cm
|
||||||
Communication interface
|
RS232, RS485 , Wiegand 26-34
|
||||||
Working current
|
800mA
|
||||||
Reading Speed
|
<200ms
|
||||||
Operating System
|
WindowsXP/7/8/10)、Linux
|
||||||
Indicator lights
|
red working light, green feedback light, emerald green network light
|
||||||
Material
|
PC and tempered glass (scanner window)
|
||||||
Remarks
|
Insert sharp object into Reet hole behind the two-dimensional code reade and automatically restart and release the reader.
|
Output format description:
1) 10-bit decimal (4-byte conversion after ID): 0287484603
2) 10 bit decimal reverse output (4-byte conversion after ID): 3148489233
3) 8-bit hexadecimal: 1122AABB 4) 8-bit hexadecimal reverse output: BBAA2211 5)8-bit decimal (3-byte conversion after ID):02271931 6) 00 + 8-bit decimal (3-byte conversion after ID): 0002271931 7) 8-bit decimal (4-byte conversion after ID): 87484603 8) 5-digit decimal (last 5 digits on the card): 43707 9) 18 digit decimal system (all numbers on the card): 028748460303443707 10) 13 bit decimal (id5 byte to decimal): 0000287484603 11) 10 bit hexadecimal: 001122AABB 12)2H4D+2H4D:0438643707 13) 8-digit decimal system (last 8 digits on the card): 03443707 USB part outputs 8h10d usb card number:
3) 8-bit hexadecimal: 1122AABB 4) 8-bit hexadecimal reverse output: BBAA2211 5)8-bit decimal (3-byte conversion after ID):02271931 6) 00 + 8-bit decimal (3-byte conversion after ID): 0002271931 7) 8-bit decimal (4-byte conversion after ID): 87484603 8) 5-digit decimal (last 5 digits on the card): 43707 9) 18 digit decimal system (all numbers on the card): 028748460303443707 10) 13 bit decimal (id5 byte to decimal): 0000287484603 11) 10 bit hexadecimal: 001122AABB 12)2H4D+2H4D:0438643707 13) 8-digit decimal system (last 8 digits on the card): 03443707 USB part outputs 8h10d usb card number:
Serial port-485 outputs card number, for example, 10 bit card number 1234567890, and the reader outputs 31 32 33 34 35 36 37 39 300 D 0A. The first 10 bytes are physical card number 0d, carriage return 0A and line feed
Details Images
Widely Application
FAQ
Question 1:
Question 4:
Question 5:
Is there stock for your products?
Answer: There is stock for different products in different periods. Please tell us what products you need, then we will check the stock for the products you need.
Question 2:
Question 2:
Do you offer samples?
Answer: Yes, Samples for the best is necessary for project calculate and test
Answer: Yes, Samples for the best is necessary for project calculate and test
Question 3:
Can Do OEM and LOGO brand ?
Answer: Yes ,We are factory and we support OEM , you can tell me the details requirement and we will make the calculate and make the exactly quotation
Answer: Yes ,We are factory and we support OEM , you can tell me the details requirement and we will make the calculate and make the exactly quotation
Question 4:
Can you do the whole solution including the hardware and software ?
Answer: Yes , we can . if you have the ability to docking/developing the software we will offer you the SDK /API /DEMO and communication protocol and user guide even the technical support . If you need we do the whole system ,we will done based on your requirement
Answer: Yes , we can . if you have the ability to docking/developing the software we will offer you the SDK /API /DEMO and communication protocol and user guide even the technical support . If you need we do the whole system ,we will done based on your requirement
Question 5:
What shipping way is adopted? What is the lead time?
Answer: By Express, Air, Sea.Depends on clients' specific requirements and order quantity. Generally, the shipping time is 3-5 working days if have stock here .The production time is different indifferent periods for different orders. Please consult us according to your specific
requirements of your order.
Answer: By Express, Air, Sea.Depends on clients' specific requirements and order quantity. Generally, the shipping time is 3-5 working days if have stock here .The production time is different indifferent periods for different orders. Please consult us according to your specific
requirements of your order.
Question 6:
What payment do you adopt?
Answer: Western Union, Money Gram TT, Paypal. Paypal is just accepted for small amount.
Answer: Western Union, Money Gram TT, Paypal. Paypal is just accepted for small amount.
