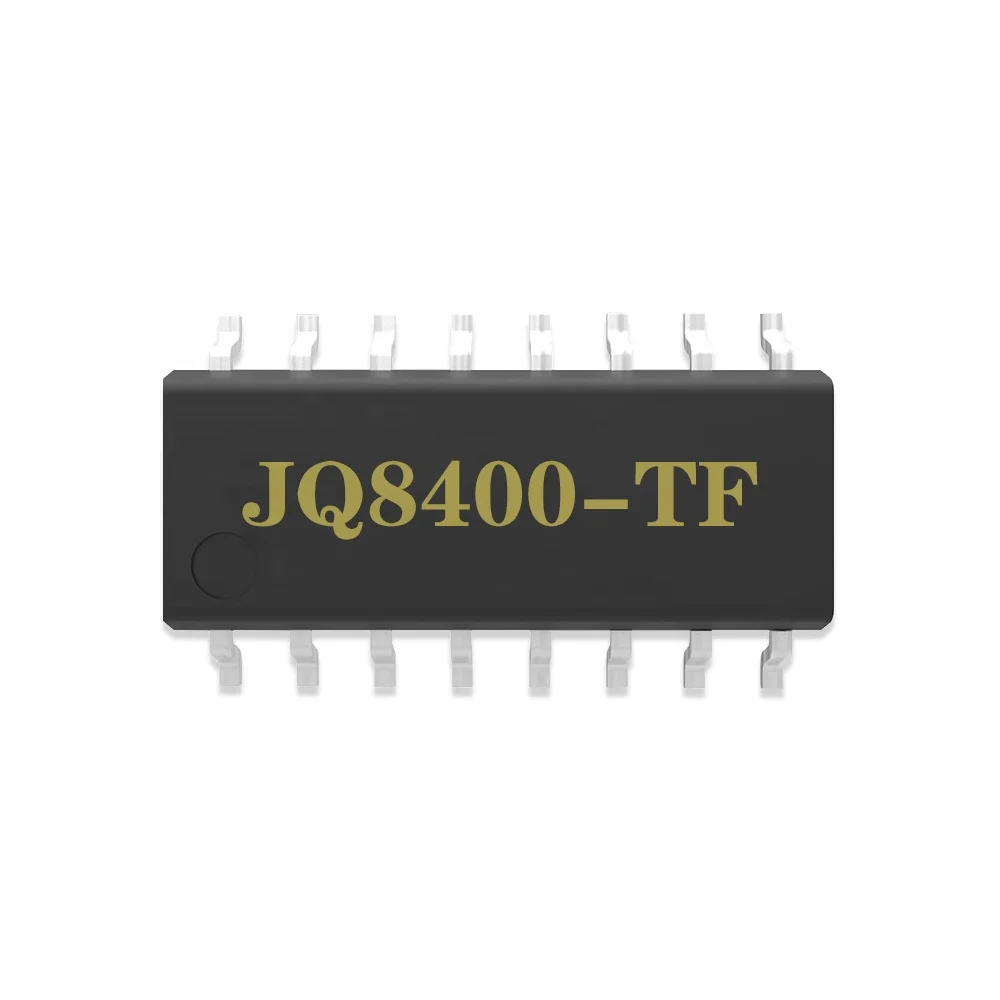

Voice Broadcast Control Module Chip IC Synthesis Custom Recording MP3 Serial Port Recordable Sound Chip JQ8400-TF
Product Description
Chip characteristics
1. Support MP3WAV hardware decoding 2. Support FAT file system 3. Support sampling rate (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48 4. The 24-bit DAC output uses DSP hardware decoding, non-PWM output, dynamic range support 90dB, and signal ratio 85dB 5. Multiple control modes, two-wire serial port mode, and one-wire serial port control 6, support the previous song, the next song, play, pause, stop, song selection, and other common function controls 7. Support to obtain the serial number of the playing track, the total track and the total track list and other information 8. Support various information inquiries and easily obtain the current state of the voice chip 9. Support the insertion of the specified track, that is, you can pause the currently playing music, play the inserted track, and return to the original track breakpoint after playing 10. Support Chinese and English path insertion, in addition to the specified track insertion, also support the specified path insertion, only need to send the insertion path can be easily achieved 11. Support to specify Chinese and English path playback, without knowing the serial number of the content to be played, just send the path. 12. Support intelligent combination playback, the combination of songs in a specific folder can be combined by sending the track name. 13. Support 30-level volume adjustment 14. Support 5 kinds of EQ adjustment 15. Support 7 kinds of playback mode control, can adapt to different applications 16. Support cycle-by-time setting, more applications, more user-friendly 17. Support system deep sleep, the current is as low as 600 microamperes after sleep, and can be woken up by a string and command IO 18. Support fast forward and backward at specified time 19. Support repeating in specified time period 20. Support to start playing from the specified time 21. Special BUSY signal output indicator 22. Mature instructions and instruction analysis to make the application more stable
Parameter
MP3 file format 1. Support all bit rate 11172-3 and IS013813-3layer3 audio decoding 2. Sampling rate support (KHZ): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 483, support Norma1, Jazz, Classic, Pop, Rock and other sound USB interface: 2.0 standard UART interface: one-line serial port, standard serial port, TTL level Input voltage: DC3.3-5.2V, recommended 5V power supply; IO level is 3.3V Rated current: sleep current: 500uA; working current: 10MA IC package: Standard SOP16 Working temperature: -40 degrees -85 degrees Humidity: 5% -95%
Application
1. Car navigation voice broadcast; 2. Highway transportation inspection, voice prompts at toll stations; 3. Voice prompts for security inspections at train stations and bus stations; 4. Voice prompts for power, communications, and financial business halls; 5. Voice prompts for vehicle entry and exit channel verification; 6. Voice prompt for the channel of public security border inspection; 7. Multi-channel voice alarm or device operation guidance voice; 8. Voice notice for safe driving of electric sightseeing cars; 9. Automatic alarm for mechanical and electrical equipment failure; 10. Fire alarm prompt; 11. Automatic broadcast equipment, regular broadcast; 12. Treadmill voice navigation;
|
Pin Description
|
||
|
P01
|
SD_DAT
|
|
|
P00
|
SD_CMD
|
|
|
P35
|
SD_CLK
|
|
|
P02
|
Busy signal pin, high during playback, other low
|
|
|
USBDM
|
USB DM pin
|
|
|
USBDP
|
USB DP pin
|
|
|
VCOM
|
Audio decoupling capacitor
|
|
|
AGND
|
Analog ground
|
|
|
DACL
|
DAC audio output left channel
|
|
|
DACR
|
DAC audio output right channel
|
|
|
3.3V
|
Internal LDO output 3.3v, current 100mA
|
|
|
VWICU
|
Chip power supply pin, DC3.3-5.2V, recommended 5v power supply;
|
|
|
GND
|
Power ground
|
|
|
P24
|
The serial port sending pin of the chip is connected to the RX pin of the MCU
|
|
|
P25
|
chip serial port receiving pin, connected to TX pin of MCU
|
|
|
VPP
|
first-line serial port pin
|
|
