Introduction

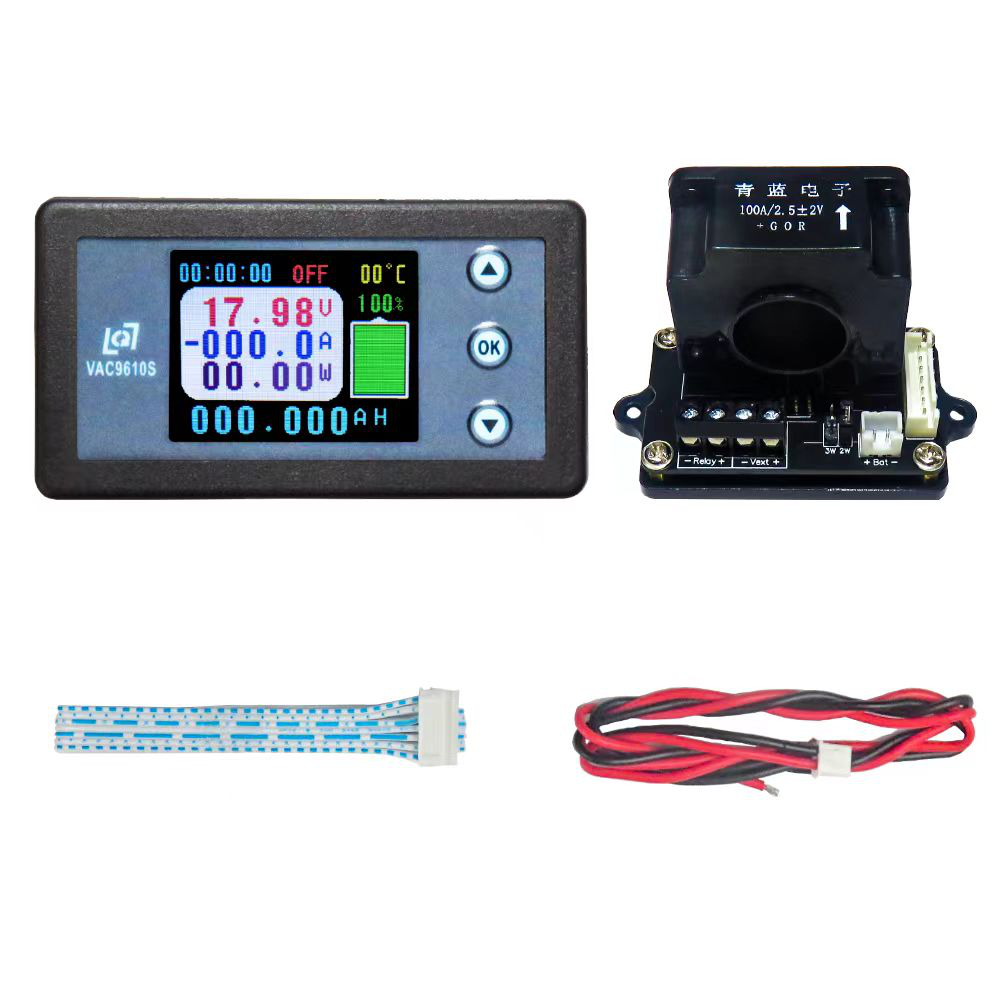

VAC9610S is a multi-function instrument that can display various physical parameters such as voltage, current, power, capacity, energy, temperature, and running time in real time, and the method of collecting current is to collect current through a non-contact Hall sensor, which is safe and stable. , The wiring is convenient, and the over-power, over-voltage, under-voltage, over-current protection and temperature control functions can be realized through the reserved relay interface. Moreover, the instrument uses a 1.8-inch color LCD as the display, which displays more comprehensive, clear, and easy-to-observe data. This meter is very suitable for applications that need to monitor the output voltage and current, and charge and discharge the battery.
characteristic
Two-way detection of current, users who detect charge and discharge can easily detect two-way current without changing the wiring direction;
Using high-performance DC Hall sensor to collect current, safe, convenient and accurate;
Power-off memory function, after power-off, the ampere hour (AH) before power-off can be memorized, which is convenient for observation and measurement;
The ampere hour (AH) count can be filled or cleared by one key, which does not affect the direct charging and discharging measurement;
Voltage, current, ampere-hour, watt-hour, time, power, and temperature are displayed at the same time, and the display information is comprehensive and clear;
With the output shutdown function key, the output can be flexibly turned on or off;
With over-voltage, over-current, over-power, under-voltage protection and temperature control functions;
It can be calibrated online to facilitate customers to correct errors in time;
The LCD screen can automatically turn off and turn on automatically, reducing product power consumption;
Switchable voltage and current waveform display function, more intuitive observation of the voltage and current curve;
The relay port can be switched to the buzzer port to realize the sound alarm function;
The under-voltage capacity can be automatically cleared, and the over-voltage capacity can be automatically filled to facilitate long-term cycle use by customers, and automatically correct errors;
Communication description
The display board of this instrument is equipped with TTL serial communication function by default;
The instrument can add 485 communication function to the display board. If you want to use the 485 communication function, please contact customer service. The default does not have the 485 communication function;
Product parameter
Model: VAC9610S
Input voltage: when self-powered, measuring range: 10V~85V, when externally powered, measuring range: 0~120V
Measuring range
Voltage: 0.01V~120V
Current: 0.1A~50A / 0.2A~100A /0.3A~200A/ 0.4A~300A/ 0.5A~500A
Capacity: 0.001AH~99999AH
Energy: 0.00WH~99999.9WH
Time: 0~100 hours
Power value: 60KW
Temperature: 1~100℃
Accuracy
Voltage: ±1%+2 words
Current: ±2%+5 words
Temperature: ±2℃
External power supply voltage: 12-60V
Display mode: 1.8 inch color LCD display
Power consumption: screen on state: 0.5W screen off state: 0.2W
Communication baud rate: 9600bps
Measurement rate: 20 times/sec
Type and scope of protection
OVP (over voltage protection): 0.01V~120V
LVP (undervoltage protection): 0.01~120V
OCP (Charge Overcurrent Protection): 0-500A
NCP (discharge overcurrent protection): 0-500A
OPP (over power protection): 0-60KW
OTP (over temperature protection): 1-100℃
Product net weight: 173.6g
Head size: 7.9*4.3*2.5cm
