Product Description

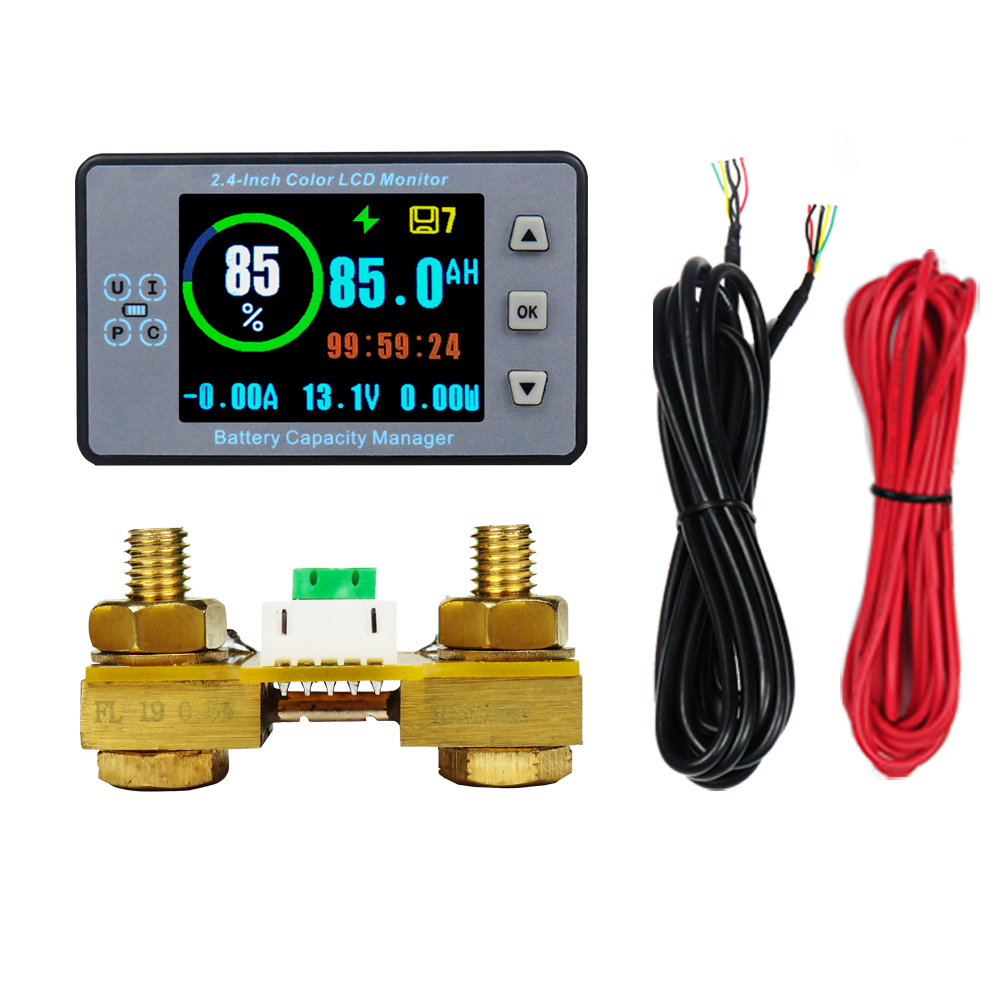

VA9810 2.4inch Color LCD Battery Capacity Tester Detector Voltage Current Power Meter Electric Car Coulometer DC8-100V 100A 500A
Description:
1. Use high-quality materials, durable
2. It can display various physical parameters such as voltage, real-time current, real-time power, residual capacity and service time in real time
3. The instrument uses 2.4-inch color LCD as the display, and the display data is comprehensive, clear and easy to observe
4. Users who detect charge and discharge can easily detect bidirectional current without changing wiring direction
5. It is safe, convenient and accurate to collect current with pure copper shunt
6. This instrument is very suitable for applications that need to monitor the output voltage and current, as well as battery charging and discharging
Parameters:
Voltage: DC8-100V
Current: 0.05~100A 0.1A~200A 0.15A~300A 0.2A~500A (optional)
Capacity: 0.1AH~99999AH
Power value: 50KW
Voltage accuracy: ± 1%+2 words
Current accuracy: ± 0.5%+2 words
Display mode: 2.4-inch color LCD display
Power consumption: On screen status: 0.3W Off screen status: 0.2W
Communication baud rate: 9600bps
Measurement rate: 20 times/second
Display board size: (length * width * height) 86 * 53 * 17 (mm)
Measuring plate size: (length * width * height) 56 * 36 * 34 (mm)
Wiring instructions:
1. Connect the positive pole of the battery to the BAT+of the diverter board, and the negative pole of the power supply to the position marked "-" on the diverter board;
2. The shunt must be connected in series between the battery and the load;
3. Connect the instrument display and acquisition module with shielded wire;
4. The sampling module should preferably be placed in a ventilated place and fixed;
