Description

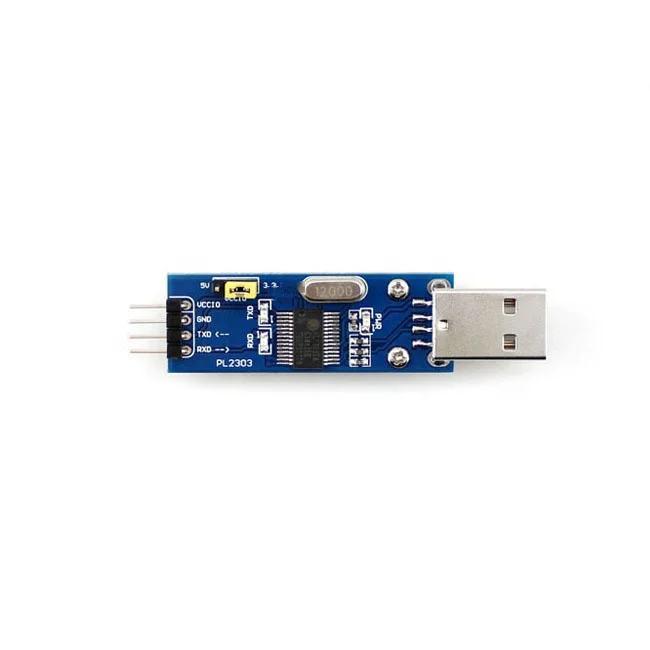

USB to Serial Bridge Controller USB to Serial 3.3V USB to TTL Converter Compatible with PL2303HXA Brush Line PL2303TA
Product Description
The PL2303TA is a low cost and high performance USB-to-Serial Bridge Controller. The PL2303TA provides a convenient solution for connecting an RS-232 like full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. The PL2303TA highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready. The PL2303TA is exclusively designed for mobile and embedded solutions in mind, providing a small footprint that could easily fit in to any connectors and handheld devices. With very small power consumption in either operating or suspend mode, the PL2303TA is perfect for bus powered operation with plenty of power left for the attached devices. PL2303TA is Pin-to-Pin compatible with PL-2303HXA and PL-2303XA.
Product Features
Using PL2303TA (compatible with PL2303HXA) Support windows XP / 7/8 / 8.1 / 10 / ... Support 3 power supply modes: 5V external power supply; 3.3V external power supply; external power supply (requires 3.3V-5V) With 3 LEDs: TXD LED, RXD LED, POWER LED
Instructions for use: (Take the MCU as an example)
|
VCCIO
|
output 3.3V or 5V (module is powered by USB, jumper cap must be jumped to 3.3V or 5V)
|
|
GND
|
Connect to GND
|
|
TXD
|
Connect to MCU.RX (signal flow: MCU.RX << PL2303 << PC.TX)
|
|
RXD
|
Connect to MCU.TX (signal flow: MCU.TX >> PL2303 >> PC.RX)
|
Product compatibility notes
Compatible with direct access to the following products: Open051C Open103C Open103R Open103V Open103Z Open107V Open1114 Open11C14 Open1343 Open16F877A Open1768 Open1788 Open18F4520 Open207I-C Open207V-C Open207Z-C Open2440 Open32F0-D Open32F3-D Open32L-D Open3S250E Open3S500E Open407C-C Open407V-D4 OpenEP2C8-C OpenEP3C16 OpenEP3C16-C OpenEP4CE10-C OpenEP4CE6-C OpenEPM1270 OpenM128
DIAGRAM
