Description

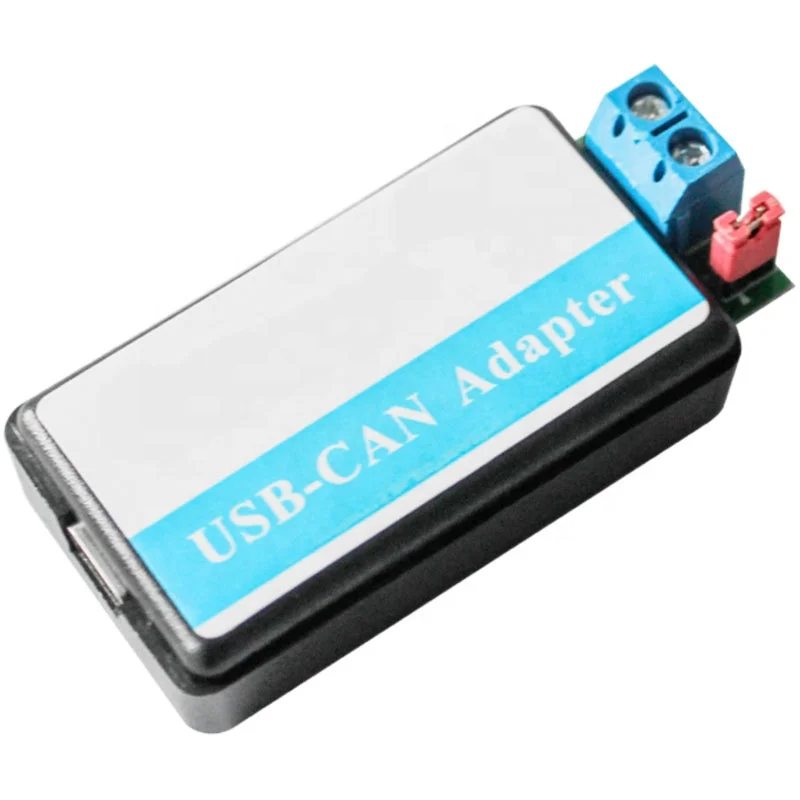

USB to CAN Analyzer USB CAN Bus Debugger Adapter with USB 2.0 CAN Emulator Bus Analyzer
Product Description
USB-CAN debugger is a CAN bus debugger with USB2.0 interface and CAN interface. Through the USB-CAN debugger, the computer can be connected to the standard CAN network through the USB interface, which can transfer, collect, and process data conveniently, quickly and accurately. The USB-CAN debugger supports any baud rate between 5Kbps-1Mbps, and is widely used in the construction of fieldbus test laboratories, industrial control, intelligent buildings, automotive electronics and other fields. At the same time, the USB-CAN debugger has the characteristics of small size, plug-and-play, safe and reliable, and good stability. It is a good choice for portable system users.
Performance
◆USB interface supports USB2.0, compatible with USB 1.1 ◆ Protocol conversion between USB and CAN bus; ◆Support CAN protocol 2.0A and 2.0B active mode; ◆Support two-way transmission, CAN transceiver; ◆Support CAN identifier standard format (11 bits) and extended format (29 bits); ◆Support data frame, remote frame format; ◆The CAN controller baud rate is up to 1Mbps and can be configured by software; ◆Support automatic retransmission mode, which can be configured through software; ◆Support automatic offline management mode, which can be configured through software; ◆Support 14 filters, which can be configured through software; ◆The host computer software supports graphical multi-channel curve display, which can replace the logic analyzer to improve the efficiency of debugging and finding problems; ◆Provide user programming instructions and communication library source files (VC++), support secondary development; ◆Support WINXP/7/10 32/64 bit.
Application
◆CAN network teaching, development and testing; ◆Fast CAN network data collection and data analysis; ◆CAN network replaces RS485 network; ◆Large flow, high-speed CAN communication network; ◆CAN network data monitoring in industrial field.
Installation Instructions
|
USB-CAN interface definition table
|
||||
|
interface
|
Pin name
|
Description
|
||
|
USB interface
|
USB
|
USB interface
|
||
|
CAN interface
|
CANH
|
CAN logic high
|
||
|
CANL
|
CAN logic low
|
|||
|
Jumper
|
Connect the device to the CAN network through a 120 ohm resistance jumper cap
|
|||
|
Indicator light
|
Instructions
|
Indicate the communication status, it is always on when it is powered on and not communicating; it is flashing when there is data communication; it is off when the power is off
|
||
Details Images
