Description

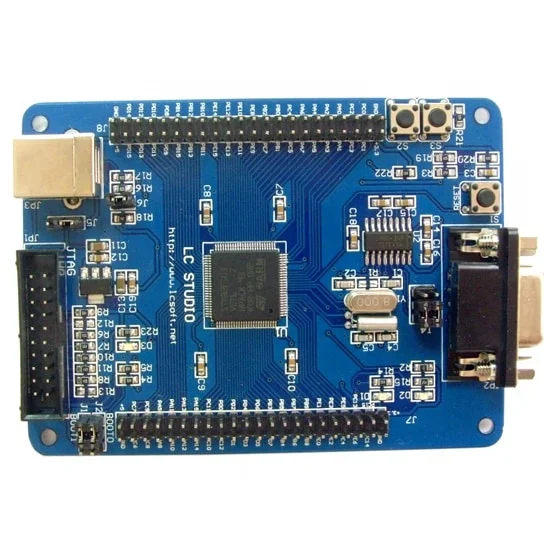

USB/Klink On Power Supply STM32F103VET6 Microcontroller Learning Board RS232 Cable STM32 Development Board
Product Description
Core − ARM 32-bit CortexTM-M3CPU − 72MHz, up to 90DMips, 1.25DMips/MHz − Single-cycle hardware multiplication and division – speed up calculations
Memory − from 32K bytes to 128K bytes of Flash program memory − from 6K bytes to 20K bytes of SRAM − Multiple bootstrap function
Clock, Reset, and Power Management − 2.0 to 3.6 V Power and I/O Pins − Power-On/Power-Down Reset (POR/PDR), Programmable Voltage Monitor (PVD), Power-Down Monitor − Embedded 4 to 16 MHz High Speed Crystal Oscillator − Embedded factory-tuned 8MHz RC oscillator − Embedded 40kHz RC oscillator − Embedded PLL to supply CPU clock − Embedded RTC oscillator with external 32kHz crystal
Memory − from 32K bytes to 128K bytes of Flash program memory − from 6K bytes to 20K bytes of SRAM − Multiple bootstrap function
Clock, Reset, and Power Management − 2.0 to 3.6 V Power and I/O Pins − Power-On/Power-Down Reset (POR/PDR), Programmable Voltage Monitor (PVD), Power-Down Monitor − Embedded 4 to 16 MHz High Speed Crystal Oscillator − Embedded factory-tuned 8MHz RC oscillator − Embedded 40kHz RC oscillator − Embedded PLL to supply CPU clock − Embedded RTC oscillator with external 32kHz crystal
Low power consumption − 3 power saving modes: sleep, stop and standby mode − VBAT supplies power to RTC and backup registers
Two 12-bit A/D converters with 1us conversion time (16 channels) − Conversion range is 0 to 3.6V − Double sampling and hold function − Temperature sensor
Debug mode − Serial Wire Debug (SWD) and JTAG Interface
DMA − 7-Channel DMA Controller − Supported Peripherals: Timer, ADC, SPI, I2C, and USART
Up to 80 fast I/O ports − 26/36/51/80 multi-function bidirectional 5V compatible I/O ports − All I/O ports can be mapped to 16 external interrupts
Up to 7 timers - Up to 3 simultaneous 16-bit timers, each with up to 4 channels for input capture/output compare/PWM or pulse counts - 16-bit 6-channel advanced control timer − Up to 6 PWM outputs − Dead band control, edge/intermediate alignment waveform and emergency braking − 2 watchdog timers (independent and window type) − System time timer: 24-bit with autoload functional
Up to 9 communication interfaces − Up to 2 I2C interfaces (SMBus/PMBus) − Up to 3 USART interfaces supporting ISO7816, LIN, IrDA interface and modem control − Up to 2 SPI synchronous serial interfaces (18 Megabits per second) − CAN interface (2.0B active) − USB 2.0 full speed interface ECOPACK® package
Debug mode − Serial Wire Debug (SWD) and JTAG Interface
DMA − 7-Channel DMA Controller − Supported Peripherals: Timer, ADC, SPI, I2C, and USART
Up to 80 fast I/O ports − 26/36/51/80 multi-function bidirectional 5V compatible I/O ports − All I/O ports can be mapped to 16 external interrupts
Up to 7 timers - Up to 3 simultaneous 16-bit timers, each with up to 4 channels for input capture/output compare/PWM or pulse counts - 16-bit 6-channel advanced control timer − Up to 6 PWM outputs − Dead band control, edge/intermediate alignment waveform and emergency braking − 2 watchdog timers (independent and window type) − System time timer: 24-bit with autoload functional
Up to 9 communication interfaces − Up to 2 I2C interfaces (SMBus/PMBus) − Up to 3 USART interfaces supporting ISO7816, LIN, IrDA interface and modem control − Up to 2 SPI synchronous serial interfaces (18 Megabits per second) − CAN interface (2.0B active) − USB 2.0 full speed interface ECOPACK® package
Specification
|
1
|
On-board STM32F103VET6 chip.
|
|
2
|
On-board JTAG interface and reset button.
|
|
3
|
On-board 32.768KHZ and 8MHZ crystal.
|
|
4
|
With 5V to3.3V chip AMS1117-3.3.
|
|
5
|
With a grout serial RS232, UART1 and UART2 can set by jumper.
|
|
6
|
All IO are leaded out and marked.
|
|
7
|
Support USB power supply and Klink On power supply mode.
|
|
8
|
Size 71(mm) x 99(mm)
|
Details Images
