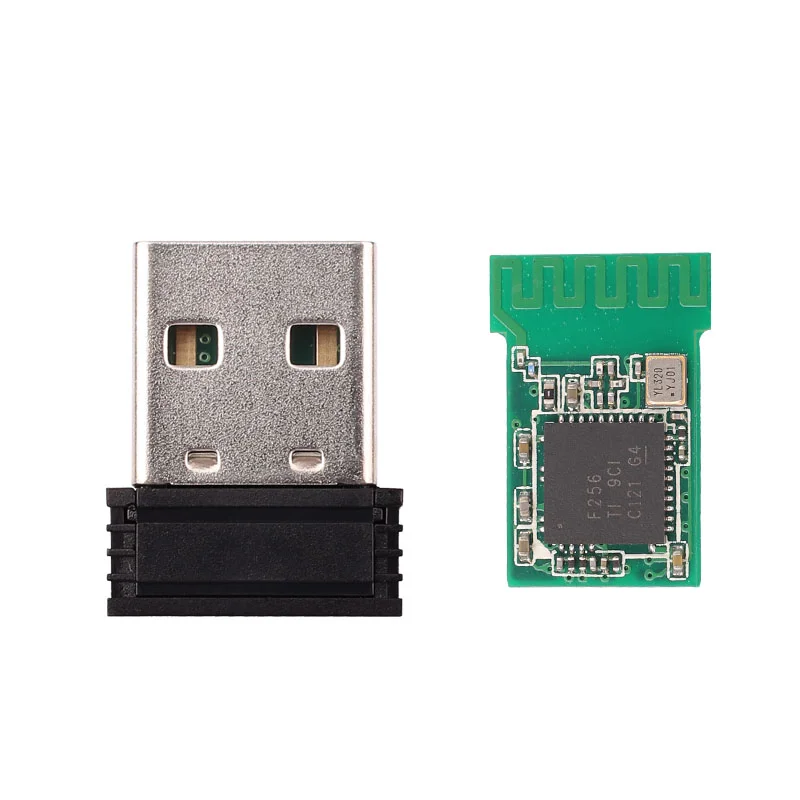

Radioland Factory Price Ble 5.0 Wireless Usb iBeacon
The power supply by USB
Parameters can be modified by APP:
1.Name 2.UUID 3.MAC 4.Transmission power 5.Broadcast interval 6.Major 7.Minor
Overview
Technical Parameters
|
Specifications |
Parament |
Remark |
|
Operating Voltage |
DC 5.0V |
|
|
working frequency |
2402~2480MHz |
|
|
Channel |
40 |
|
|
Modulation |
GFSK |
|
|
Output Power |
-20dBm ~+4 dBm |
Can changed by software |
|
Electric current |
24mA |
POWER:-6dBm |
|
Receiver sensitivity |
-93dBm |
High-gain |
|
Receiving current |
19.6mA |
High-gain |
|
Standby Current |
0.4uA |
Deep sleep |
|
Transmission rate |
1Mbps | |
| Flash memory chip | 256KB | 128KB can chose |
| Chip RAM | 8KB | |
| Antenna Type | PCB antenna | |
| Communication distance | >30m | +4dBm output power |
|
storage temperature |
-40 ~ 125 °C |
|
|
Operating temperature |
-20 ~ 75 °C |
|
|
Dimensions |
18.0*14.0*3.1mm |
Remark:
1.Supply voltage module can affect the transmit power within the operating voltage range, the lower the voltage,
the smaller transmission power.
2.The module operating temperature changes, the center frequency will change, they do not exceed the operating
temperature range, does not affect the application.
Feature
1.BLE Smart stack GAP,GATT,L2CAP and SMP support BLE Smart profiles
2.Radio performance
TX power: +4dBm ~ -23dBm
RX sensitivity :-93dBm
3.USB host interface
Support USB/CDC( Vircual COM)
4.8051 microcontroller
5.8bit8051kernal,8k SRAM,Flash 256kB
6.Support BLE Device Moniter ,Btool ,Packet Sniffer
Target Applications
1.Human Interface Decice hosts
2.Sports and Fitness
3.PC end BLE unlocked
4.Low Energy BLE connection
5.USB interface software protection
6.Consumer Electronics
Our services
- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.
