Product features.
With infrared function, can test like TV, air conditioner, water heater, amplifier, etc., remote control good or bad or lack of power.

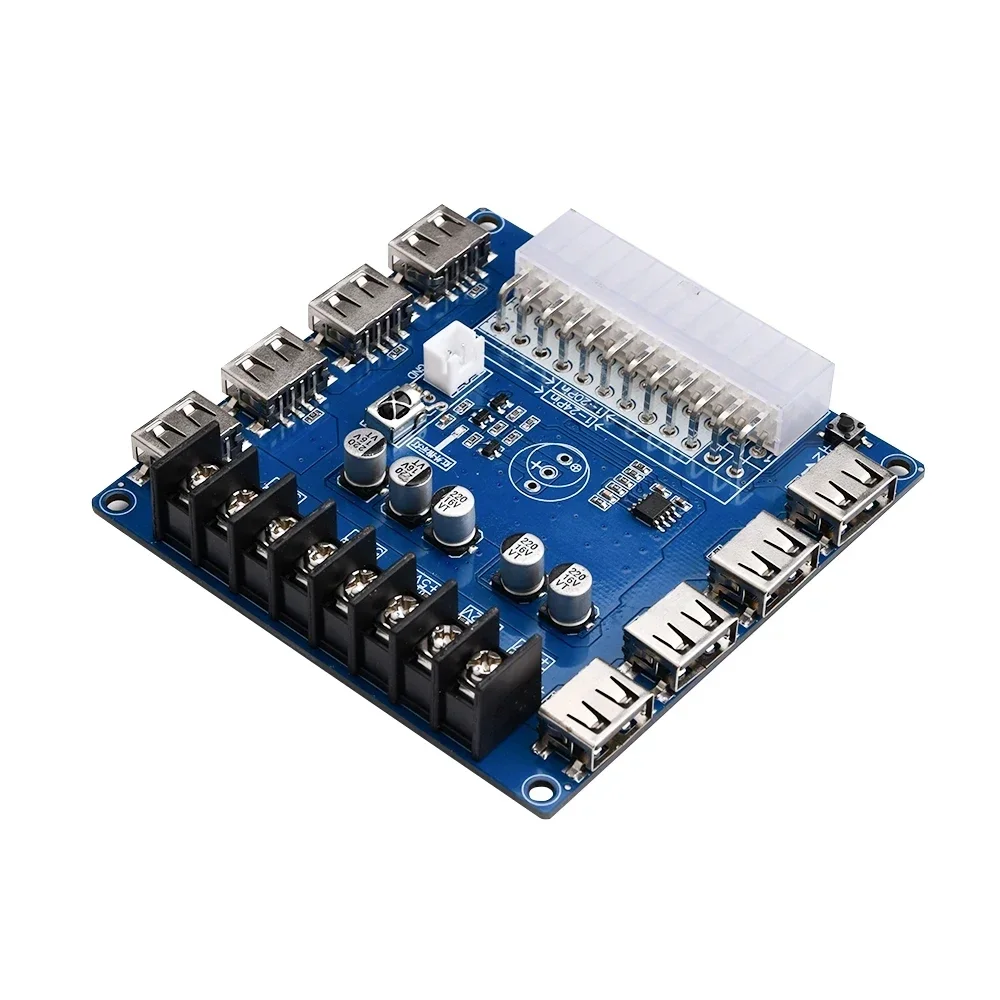

Module board is compatible with all 20Pin and 24Pin ATx computer power supply.
Adopt light touch switch with 550,000 times service life, more convenient operation.
Reserved XH2.54-2P terminal (overhang), can be external two lines using the microcontroller Io port (5V) or switch to control the ATX power supply switch (easy to add a shell to modify).
On-board 8 USB ports, each USB port can output 5V, MAX = 2.1A current, can be powered to cell phones, tablets, mobile power, flashlights, electronic products aging, etc..
Module using high current terminals (terminal voltage 300V / can pass 20A current), to solve the terminal block, screw type terminals caused by the wiring is not solid, bad wiring problems.
Module output +12V, -12v, +5V, 5VSB, 3.3V after power on a total of 5 groups of power, can make you better use of ATX power supply, convenient for your use.
Product parameters.
Output: 5V/2A
Wiring terminal:Maximum 20A output
USB interface: 8 groups
5 power outputs: +12V, -12v, +5V, 5VSB, 3.3V
5 kinds of power output indicator:
+12v normal output=display blue
-12V normal output=display blue
+5V normal output=display red
5VSB normal output=display red
3.3V normal output=display red
Compatible: Compatible with all 20-pin and 24-pin computer power supplies
Product List.
Adaptor board X1
