Description
Product Description

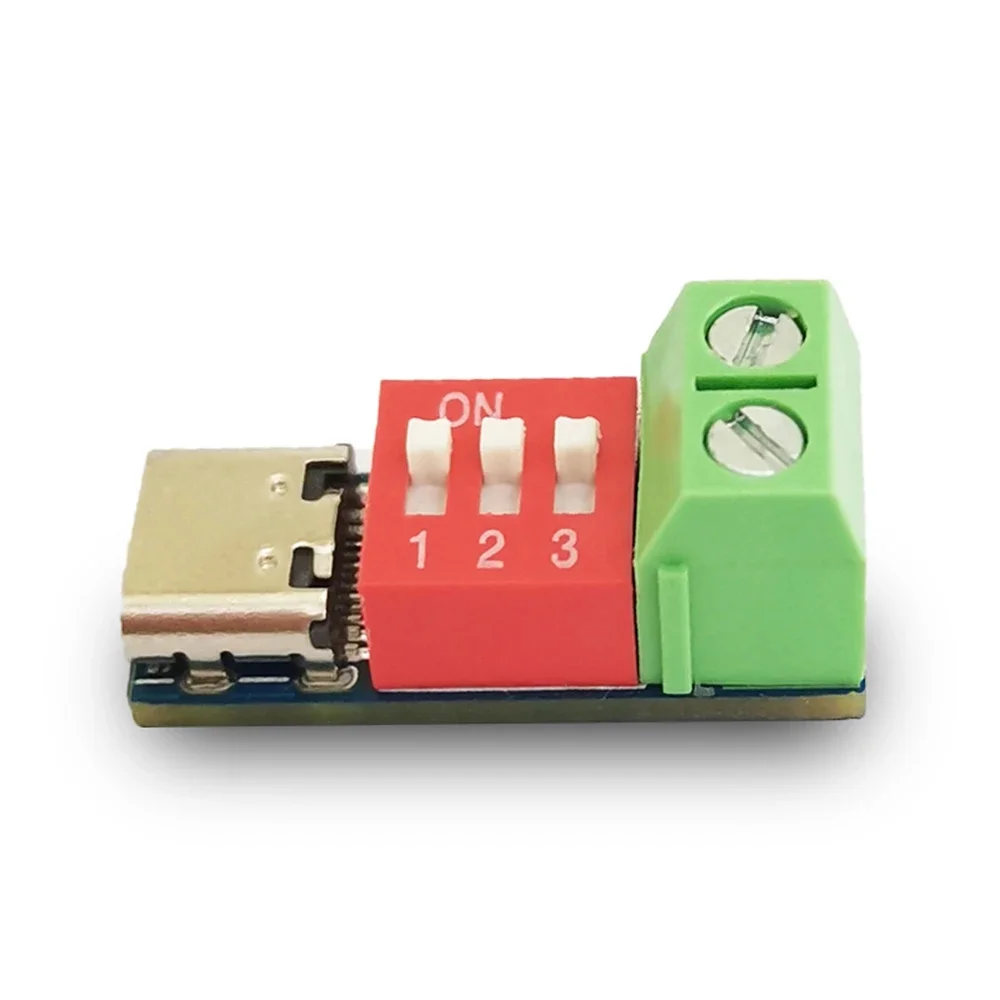

USB-C PD Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c to 12v High Speed Charger Power Delivery Boost Module
Introdction
Features: 1. The PD decoy supports PD3.0/2.0, BC1.2 and other boost fast charging protocols, supports up to 10ow power, and provides functions such as over-temperature and over-voltage protection. 2. The voltage can be adjusted by the dial switch, and the output voltage is up to 20V. 3. Support PD3.0/2.0, BC1.2 and other fast charging protocols 4. Support USB Type-C PD, support positive and negative insertion detection and automatic switching 5. Support 4V to 22V input voltage
Parameters: Input voltage: support 4V to 22V Output voltage: up to 20V Interface: Support USB Type-C PD Power: up to 100W Product size: 11*25.7mm
Instructions for use: CFG1 corresponds to DIP switch 1 CFG2 corresponds to DIP switch 2 CFG3 corresponds to DIP switch 3 Dial down to 1, dial up to 0. Toggle switch to request the appropriate voltage according to the charger protocol
