Description

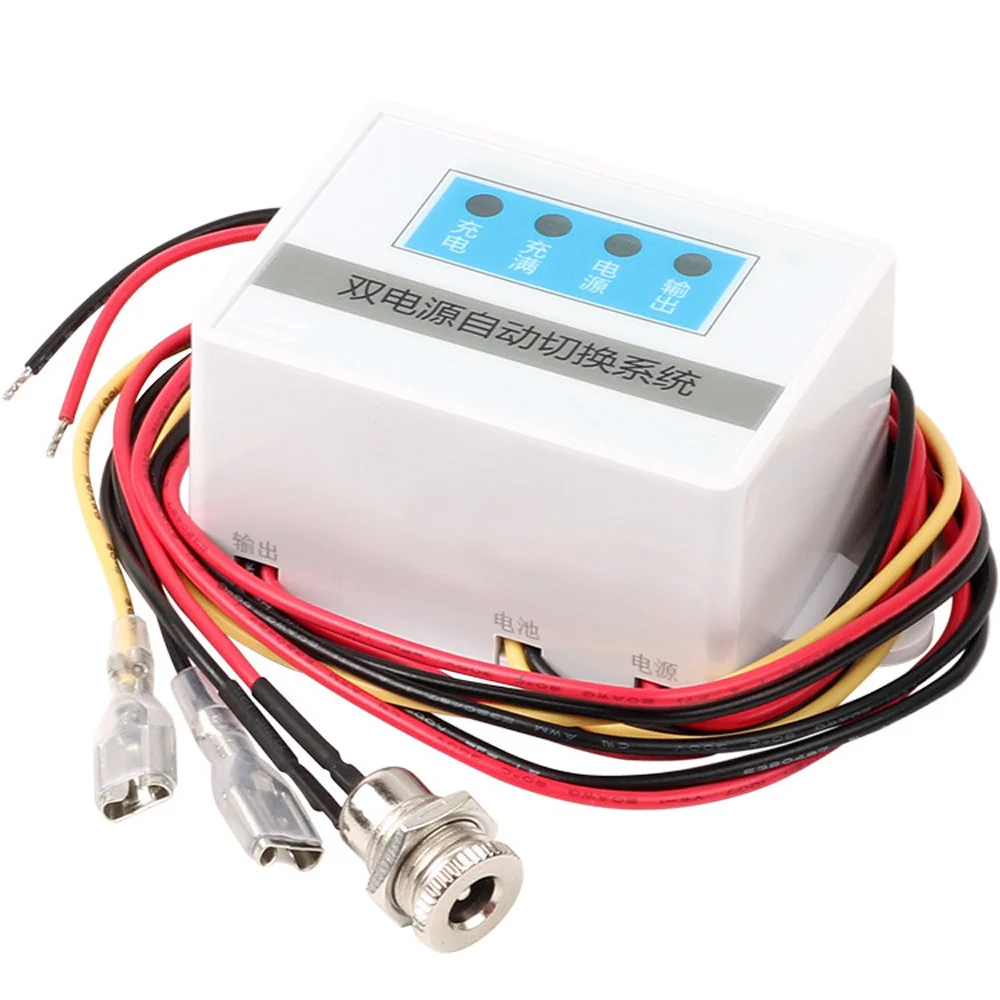

UPS Emergency Power Off Battery Switching Inverter Automatic Battery Cutoff Switch Dual Power Auto Transfer Switch
Product Description
The purpose of the dual power automatic transfer switch is to use one way of normal power one way of reserve power. When the normal power supply suddenly fails or the power is cut off, the dual power supply automatic transfer switch is automatically put into the reserve power supply to make the device continue to operate normally. When the normal power supply is normal, it will automatically switch to the normal switch regardless of whether there is any power in the spare. If there is power at both ends,the normal power supply will be the main one.
Specification
item
value
Model Number
DC power switching Module
Output Type
DUAL
Input Voltage
12V
Output Current
8A
Output Power
<100W
Power supply
DC12V
Max load
100W
Load current
10A
Size
60*45*31mm
Instructions for use
Charging indicator light: When the battery needs to be charged, the red light is on. Full indicator light: When the battery is fully charged, the green light is on. Power indicator light: When the external DC12V is connected, the red light is on. Output indicator light: Light on means there is voltage, light off means no voltage. Power terminal: connect to 12V adapter, red to positive pole, black to negative pole. Battery terminal: connect to 12V battery, yellow to positive pole, black to negative pole. Output terminal: connected to 12V load equipment, red connected to positive pole and black negative pole.
