Description

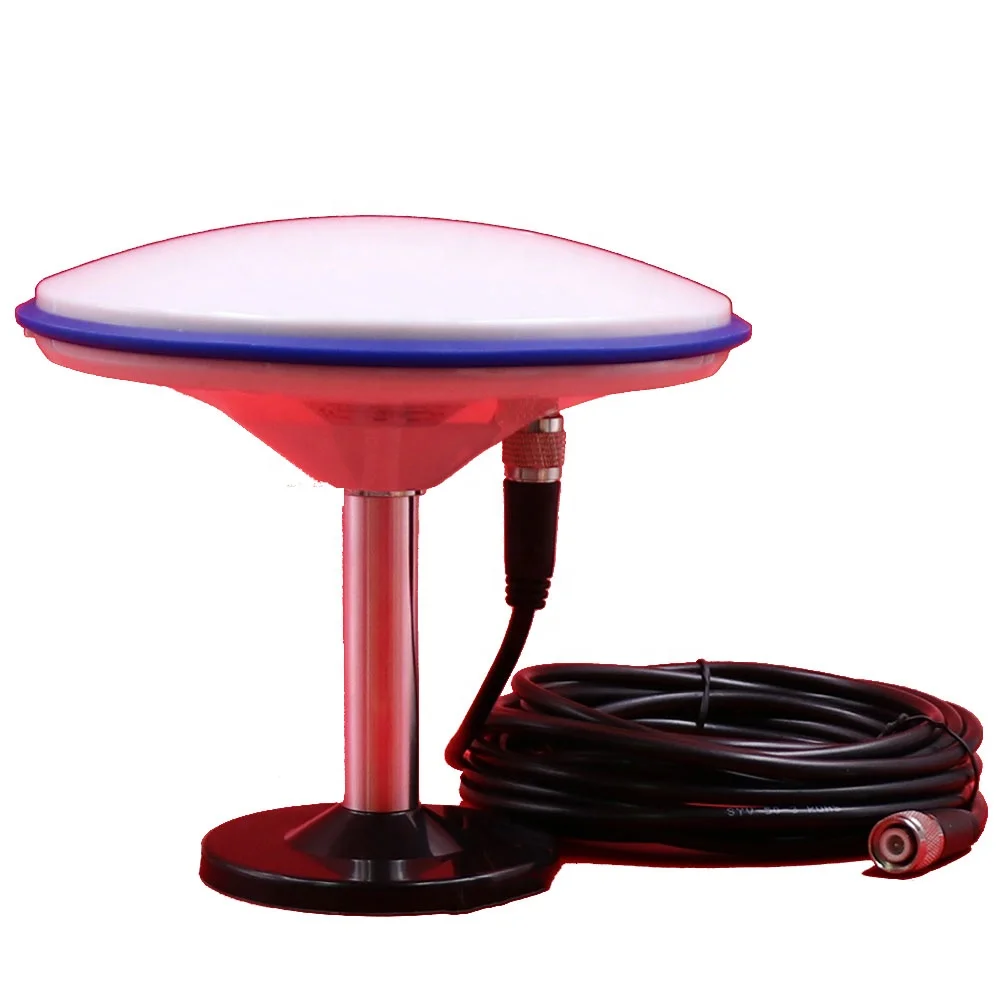

Universal GPS Receiver GPS/RTK Base Station Antenna CORS Mushroom Head Antenna GPS Glonass Galileo Beidou Receiver
Product Description
INTRODUCTION
This antenna can receive signals of GPS L1 L2,GLONASS G1 G2,BEIDOU B1 B2 B3 and GALILEO E1 E5b. It has features of high gain, good low elevation gain and stable phase center. It is suitable for high-precision survey with the four systems and widely used in many situations such as geodetic survey, road construction, oceanic survey, operation of containers in wharf.
Feature
Design of multiple feeding points is adopted to ensure coincidence of phase center and geological center, which will minimize the error of survey. The antenna’s high gain and wide beam guarantee good reception of satellite signals of low elevation Anti-high and low temperature impact, waterproof and anti-ultraviolet radome can assure the antenna to work outdoors for a long time.
Note: This price was for Antenna + base, Also we have Antenna; Base 9cm; TNC male 5M; TNC male 10M; Antenna + TNC male 5M; Antenna + TNC Male 10M; Base + TNC male 5M; Base + TNC male 10M; Antenna + base + TNC male 5M; Antenna + base + TNC male 10M. Please contact the customer service for the style you want.
Product Paramenters
Bands
GPS L1 L2 Gain at Zenith L1≥5.5dBi L2≥5.0dBi
GLONASS G1 G2 Gain at Zenith G1≥5.0dBi G2≥5.0dBi
GALILEO E1 E5b Gain at Zenith E1≥5.0dBi E5b≥4.5dBi
BEIDOU B1 B2 B3 Gain at Zenith B1≥5.0dBi B2≥5.0dBi B3≥4.5dBi
