Description
UM72 Single 41-50mm PCB Frame Module Din Rail Brackets 72mm Wide DIN Rail Enclosure Mounting Circuit Board
Product Description
The width of the PCB mounting slot is 72mm (it is recommended that the PCB width is 72mm, and the four corners are rounded to R0.5). When designing the PCB, do not place the components at least 2mm away from the edge of the board to avoid touching the mold base. If the PCB size you design is 100mm long, then you need to choose a 96mm strip length, because the left and right baffles have 2.0mm grooves inside. The length of this page is your PCB length. We will directly cut the length of the PCB. Cut into shells 4 mm shorter than your circuit board. (If there is no space of 2.0mm reserved at both ends of the length of your circuit board, please make special remarks)
Specification
item
value
Product name
Extruded strip PCB module frame
Color
green black gray orange can be optional
Length of base plate
1M
Width
Suitable for use with circuit board width 72MM
Insulation grade
Flame retardant VO grade
Bottom plate length
can be cut according to the length of PCB
Net weight
0.5KG
Installation method
DIN rail installation C45 rail installation
Remarks

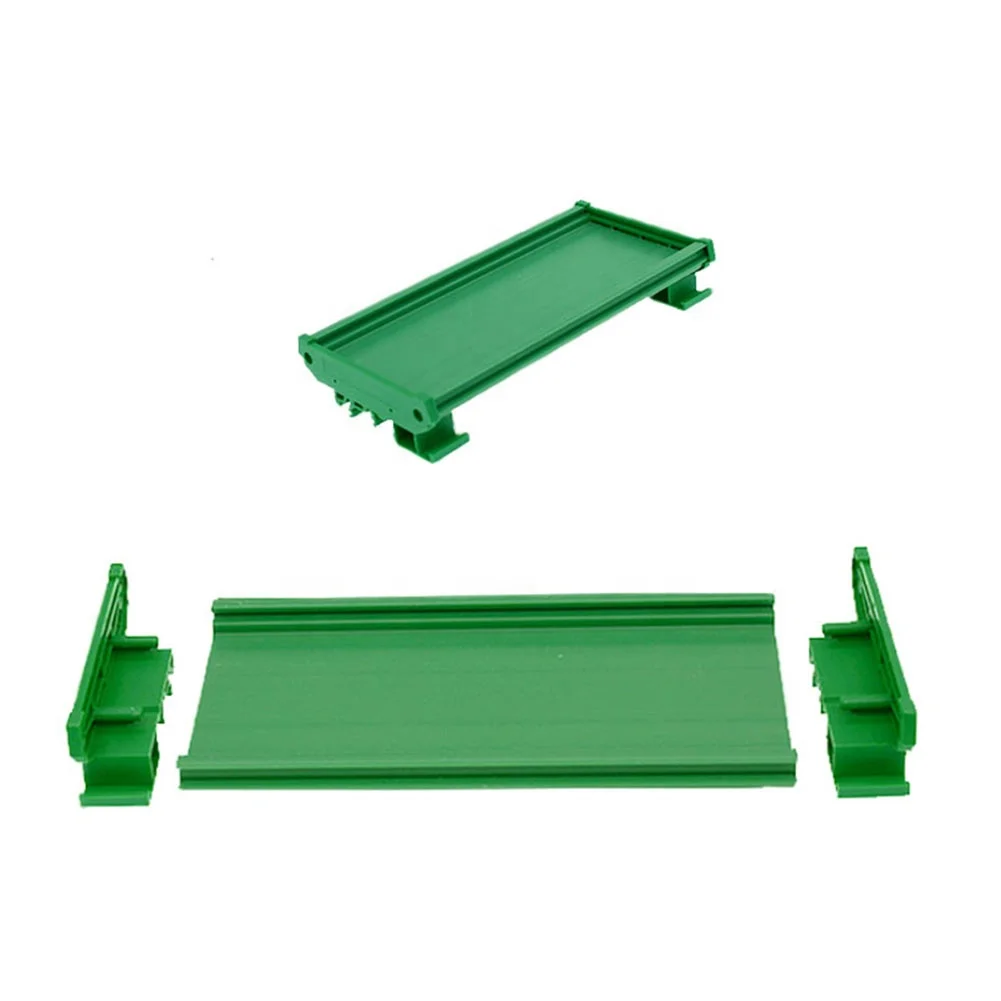

*The width of this product 72MM refers to the slot width of the shell suitable for the use of circuit board width 72MM. Baffle installation fixed The profile shell is composed of a bottom profile (cut from UM-72 extruded profile) and two left and right end plates UM-72, which are connected by screws, and have high mechanical stability!
