2.Adjust according to the required environment.
3.Beautiful and elegant appearance,Replace radiators
4.The product requires less water and heats up quickly.
5.Easy to install, convenient, and detachable, saving you valuable space.
1/6
${data.index + 1}/${data.total}
Description

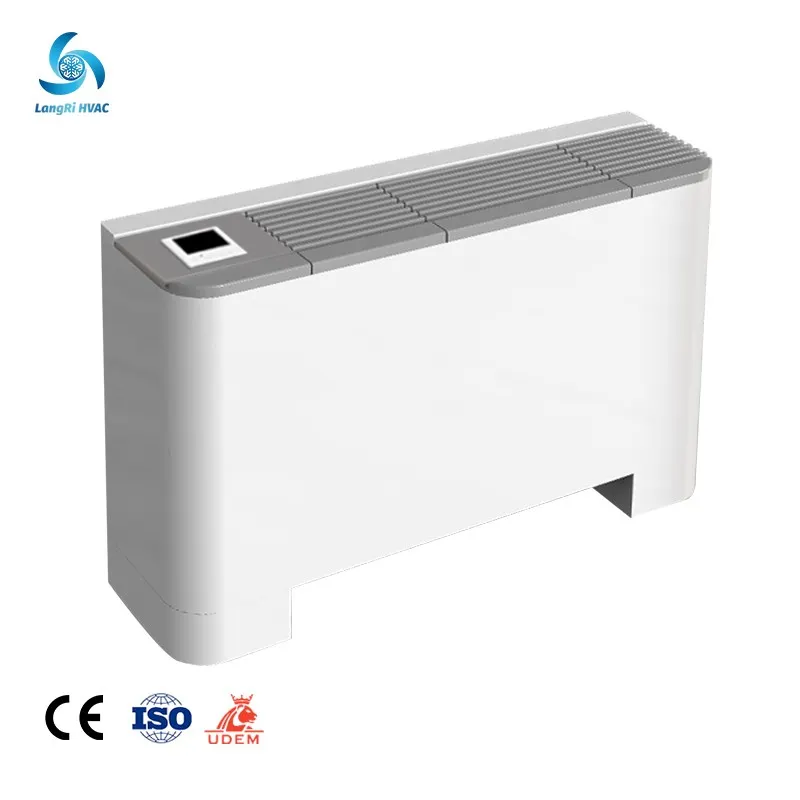

Universal exposed Fan Coil Unit
1.Two types of return air methods and multiple installation methods.
Surface cooler
Hydrophilic aluminum foil,
with a thickness of 0.105MM.
Multiple inlet and outlet collection heads can accelerate water circulation and increase water flow.
Efficient heat transfer with a spacing of 1.6-1.8mm.
Copper water head
Pure brass collector head with high corrosion resistance
and pressure resistance,
0.3mm thick copper tube,
7mm diameter for optimal heat transfer efficiency
Motor
Yong'an DC brushless motor.
In terms of noise life efficiency,
it is superior to AC motors.
Fixed position upgrade and
strengthened board.
Wind wheel
Using ABS material for the wind wheel.
Compared to iron wind wheel,
it has lower noise,
corrosion resistance,
longer lifespan, and higher efficiency.
Water tray
The steel water tray adopts high gloss spray coating,
with a smooth surface that does not stick to dust and is corrosion-resistant.
It is equipped with insulation cotton to isolate condensed water.
Thermostat
Thermostat, temperature and wind speed control, optional button and touchscreen styles
Product Paramenters
|
Model
|
FP-136
|
FP-170
|
FP-204
|
FP-238
|
|
Air volume m³/h
|
1360
|
1700
|
2040
|
2380
|
|
Cooling capacity W
|
7200
|
9000
|
10800
|
12600
|
|
Heating capacity W
|
11520
|
14400
|
17280
|
20160
|
|
Input power
|
156
|
174
|
212
|
253
|
|
Noise DB (A)
|
44
|
45
|
48
|
52
|
|
Water resistance KPa
|
40
|
40
|
40
|
50
|
|
Usage area
|
40m²
|
50m²
|
60m²
|
70-80m²
|
|
Water flow rate
|
1325
|
1545
|
1900
|
2200
|
|
Motor power
|
40W*16W
|
40W*2
|
50W*2
|
60W*2
|
|
Dimensions
|
1360*480*245
|
1660*480*245
|
1860*480*245
|
2060*480*245
|
|
Evaporator size
|
1100*210*40
|
1360*210*40
|
1560*210*40
|
1760*210*40
|
|
Air outlet size
|
1150*135
|
1410*135
|
1610*135
|
1810*135
|
|
Hanging hole spacing (mm)
|
1130
|
1390
|
1590
|
1790
|
|
Weight without return air box (KG)
|
27
|
32
|
35
|
37
|
|
Weight with return air box (KG)
|
31
|
37
|
42
|
44
|
|
Vertical
|
1408*640*240
|
1678*640*240
|
1868*640*240
|
2028*640*240
|
|
Horizontal
|
1408*560*240
|
1678*560*240
|
1868*560*240
|
2028*560*240
|
|
Model
|
FP-34
|
FP-51
|
FP-68
|
FP-85
|
FP-102
|
|
Air volume m³/h
|
340
|
510
|
680
|
850
|
1020
|
|
Cooling capacity W
|
1980
|
2730
|
3600
|
4500
|
5450
|
|
Heating capacity W
|
3160
|
4360
|
5760
|
7200
|
8720
|
|
Input power
|
44
|
59
|
72
|
87
|
108
|
|
Noise DB (A)
|
35
|
38
|
41
|
41
|
44
|
|
Water resistance KPa
|
10
|
20
|
30
|
30
|
30
|
|
Usage area
|
10m²
|
15m²
|
20m²
|
25m²
|
30m²
|
|
Water flow rate
|
302
|
454
|
605
|
756
|
907
|
|
Motor power
|
16W
|
20W
|
25W
|
30W
|
40W
|
|
Dimensions
|
760*480*245
|
860*480*245
|
960*480*245
|
1060*480*245
|
1160*480*245
|
|
Evaporator size
|
460*210*40
|
580*210*40
|
650*210*40
|
780*210*40
|
900*210*40
|
|
Air outlet size
|
510*135
|
630*135
|
700*135
|
830*135
|
950*135
|
|
Hanging hole spacing (mm)
|
490
|
610
|
680
|
810
|
930
|
|
Weight without return air box (KG)
|
13
|
15
|
16
|
18
|
20
|
|
Weight with return air box (KG)
|
17
|
19
|
20
|
22
|
25
|
|
Vertical
|
788*640*240
|
938*640*240
|
978*640*240
|
1098*640*240
|
1258*640*240
|
|
Horizontal
|
788*560*240
|
938*560*240
|
978*560*240
|
1098*560*240
|
1258*560*240
|
