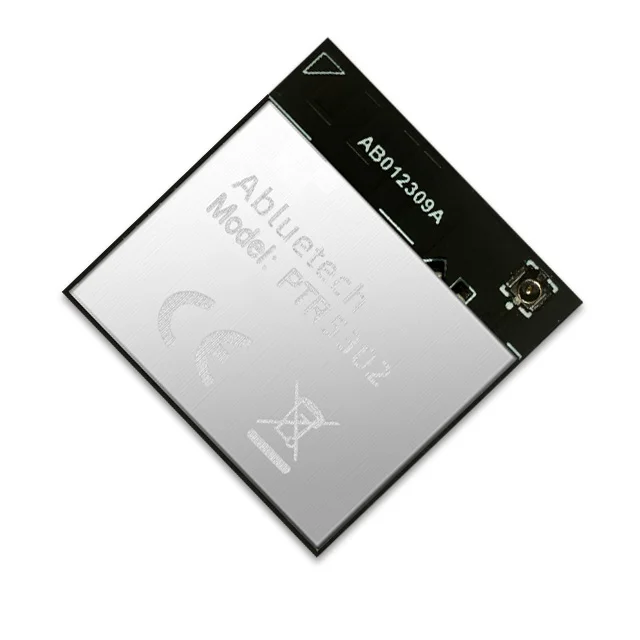

Ultra Low Power WiFi Bluetooth Combo Module support Wi-Fi Direct and Station Mode

WiFi Bluetooth Combo Module
$16.66
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Specification
Chipset
nRF5340+nRF7002
Working Frequency
Bluetooth 5.3, Bluetooth Mesh, ANT/ANT+, 2.4GHz private protocol, 802.15.4, Thread, Matter, and Zigbee
Transmit Power
Wi-Fi:+5~+19 dBm@2.4G / +5~+15 dBm@5G
BLE: +3dBm~-20dBm
Operating Voltage
Bluetooth: 1.7~5.5V
Wi-Fi: 2.9 ~ 4.5 V
Operating Temperature
-25°C-85°C
Antenna
Wi-Fi:2.4G/5G Wi-Fi Dual-Band Antenna
Receiving Sensitivity
Wi-Fi:-96.5dBm@2.4G / -90.5dBm@5G
BLE:-97.5dBm@BLE 1M
GPIO
35
Module Size
23.5*23.5*2mm
* Based on the nRF7002 ultra-low power dual-band Wi-Fi 6 chip * Based on the nRF5340 embedded ARM Cortex M33F dual-core processor * Supports IEEE 802.11 ax and IEEE 802.11 a/b/g/n/ac standards * Supports TWT energy-saving mechanism, orthogonal frequency-division multiple access (OFDMA), BSS Coloring coloring mechanism * Supports Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED a/b/g/n/ac, and Wi-Fi Enhanced Open
* Serial debug interface (SWD)
* Supports WPA3, WPA2, WPA standards
* Supports WMM, WMM- Power Save, Wi-Fi Agile Multiband, * Wi-Fi Direct standards
* Maximum Wi-Fi output power: +19 dBm,
output power adjustable: +5~+19 dBm
* Wi-Fi dual frequency: 2.4 GHz / 5 GHz
* Wi-Fi transmission power:
165mA@+15dBm, 2.4GHz, VBAT=3.6V;
244mA@+15dBm, 5GHz, VBAT=3.6V
* Wi-Fi receive power: 56 mA RX 2.4 GHz,
58 mA RX 5 GHz
Pin Images
