Description

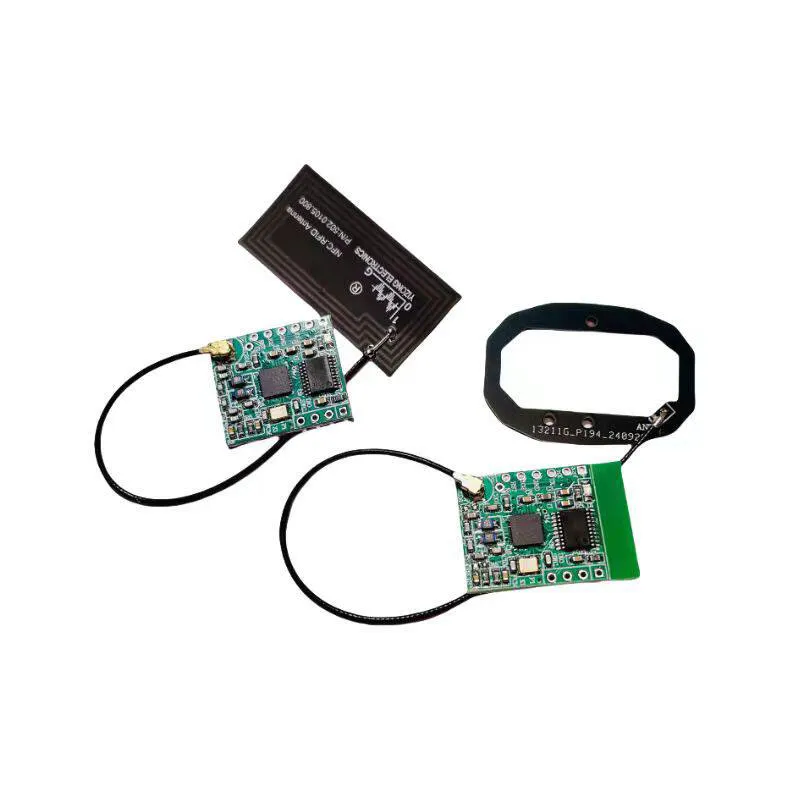

This is a universal contactless card reading module designed for seamless integration into smart devices. It features an ultra-compact main unit paired with a separate external antenna, allowing flexible placement in thin or space-limited products like interactive kiosks, tablet-based advertising players, and access control panels. Operating at 13.56MHz, it supports reading NTAG tags or MIFARE cards,ISO14443A RFID cards. The module outputs the card's unique identifier (UID) via a simple serial interface, making it an ideal plug-and-play solution for adding NFC/RFID functionality to various electronic systems.
特征
-
Slim Profile Design: The core reader module is exceptionally small, enabling installation in tight spaces. The split design with an external antenna offers maximum layout flexibility.
-
Wide Device Compatibility: Easily integrates with access control systems, Android/Linux tablets, advertising players, and self-service terminals to enable card/tag interaction.
-
Plug-and-Play Interface: Utilizes a straightforward TTL serial (UART) communication protocol, requiring only 3.3V power and a connection to the host's serial port for immediate operation.
-
Stable Performance: Provides a consistent read distance and reliable data output for a smooth user experience in payment, identification, or marketing interaction scenarios.
参数
-
Working Frequency: 13.56 MHz
-
Supported Card Types: NFC Tags (NTAG)or MIFARE Classic,ISO 14443 Type A cards.
-
Communication Interface: 3.3V TTL UART
-
Default Baud Rate: 9600
-
Operating Voltage: 3.3V DC (±5%)
-
Operating Current: < 50 mA
-
Read Distance: 0 - 30 mm (Depends on antenna and tag)
-
Data Output: Card UID (Unique Identifier) in hexadecimal format.
-
Antenna Connection: IPEX connector (for external antenna)
-
Module Dimensions: Approx. 23mm x 20mm
