Description
UHF Wireless Digital Audio Transceiver Lossless Wireless UHF Transmitter and Receiver Wireless Speaker Transceiver
Product Description
Feature

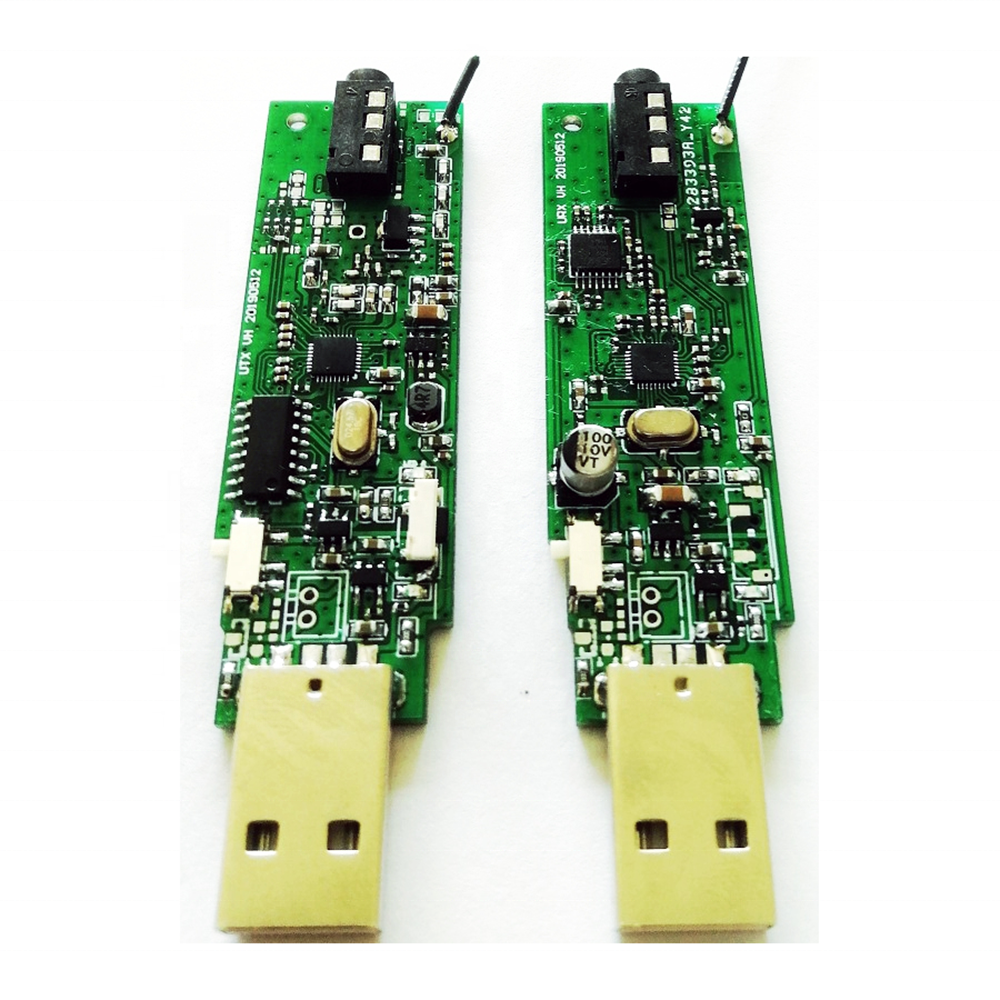

1. The module size is small, only 21 * 65mm, with a shell, you can directly assemble DIY into a complete finished product 2. Pure digital transmission, strong anti-interference ability, 3. The sound transmission delay is small, only 3ms. 4. Strong transmitting power (power 20dbm), long transmission distance 5. Standard USB interface for power supply, mobile power, mobile phone charging head, computer USB interface can become power supply equipment, which is very convenient. 6. The module comes with a lithium battery charging circuit, TX built-in booster circuit, and the idle mobile phone lithium battery can also become a power supply device 7. Two modes selection: A: Broadcast (one transmission, multiple reception) B: point-to-point (one transmitting and one receiving) 8.The module comes with an antenna.
Parameters
Working power
DC5.0V
Transmitting power
20DBm
Receiving sensitivity
-95DBm
Audio signal-to-noise ratio
96db
Sampling rate
48KHz
Transmission rate
204.8Ksps
Transmission frequency
UHF (500-980MHz)
Application
Wired speakers become wireless speakers, wireless transmission of musical instruments, stage sound layout, etc.
