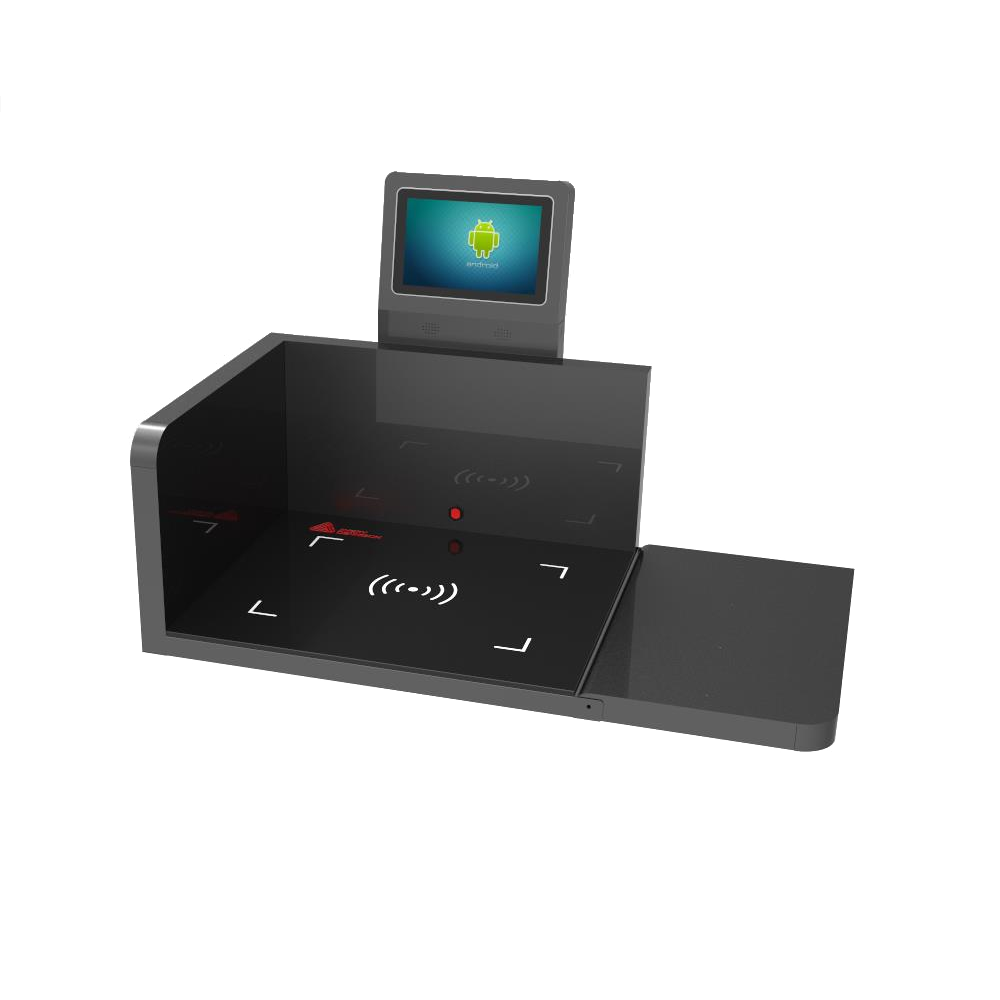

What is overview of UHF Self Service Checkout Terminal RFID Kiosk For Library?
UHF RFID Three-side Shielding All-in-one Desktop is designed with independent intellectual property rights and combined with proprietary high-efficiency signal processing algorithm. It can achieve speed reading for RFID tags while keeping high reading accuracy. It mainly applies receiving, delivery and verification of the whole box or single piece. And can also be integrated into logistics, access control system, anti-counterfeiting system, production process control and other radio frequency identification (RFID) systems.
What is the key features of UHF Self Service Checkout Terminal RFID Kiosk For Library?
* Support electronic tags of ISO18000-6B, EPC CLASS1 G2 standard.
* Support various client interfaces such as USB, RS232, TCPIP, etc..
* Small size and platform design, which is convenient for operation.
* Secondary Development:Provide DLL and DEMO program.
The Sample Applications of UHF Self Service Checkout Terminal RFID Kiosk For Library?
What is the specification of UHF Self Service Checkout Terminal RFID Kiosk For Library?
|
UHF Self Service Checkout Terminal RFID Kiosk For Library |
|
| Communication Interface | RS232/TCPIP /USB |
| External Power Adapter | 12-24V 3.5A |
| Size | External Size: 680*590*612mm Internal Size: 600*500*300mm |
| Enclosure Material | Spray-paint Sheet Metal |
| System | Android |
| Operating Voltage | 12-24V |
| Screen | 10.1 inches |
| Image Resolution | 1280*800 |
| Operating Temperature | -10°C~+60°C |
| Operating Humidity | <95%(+25°C ) |
| Air Interface Protocol | EPCglobal UHF Class 1 Gen2 /ISO 18000-6C, 6B |
| Working Frequency | 840MHz ~ 960MHz |
| Recommended Quantity of Tags | Single Package 5~10PCS,Single Box 30-50PCS |
| Load Capacity | 15KG |
| Output Power | 1-30dbm |
| Output Power Accuracy | +/- 1db |
| Output Power Flatness | +/- 0.2db |
| Weight | ≥30KG |
| Recommended Size of Boxes | Single piece or small amount is recommended Support 400mm*400mm*400mm boxes |
