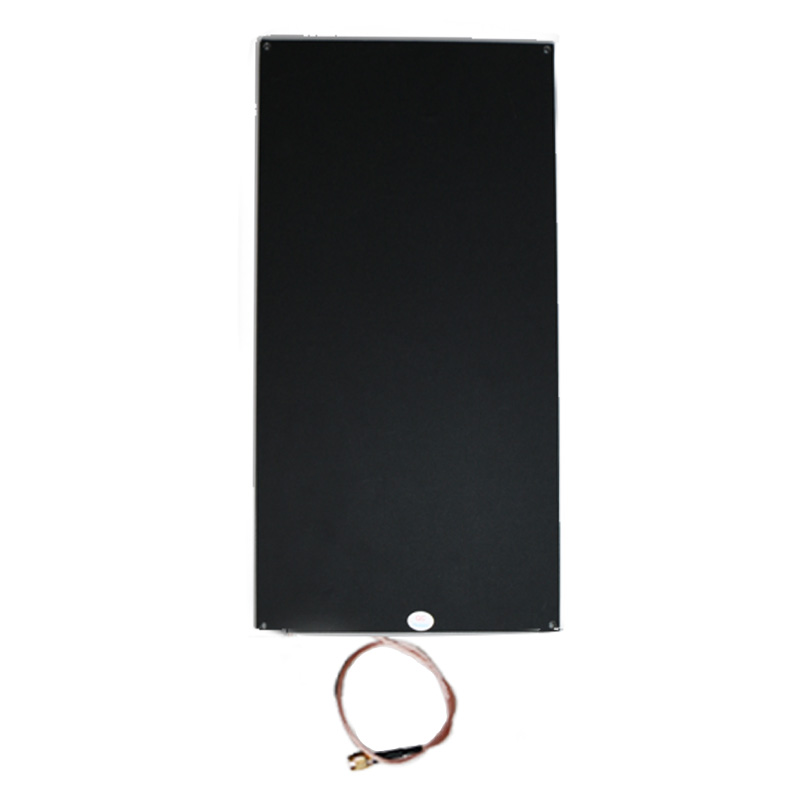

UHF RFID Reader Near Field Antenna 860MHz 960MHz UHF RFID Antenna
What is the overview of UHF RFID Reader Near Field Antenna 860MHz 960MHz UHF RFID Antenna?
What is the technical specification of A rduino Antenna Anti Theft Uhf Rfid Reader Short Range Rfid Antenna Dome?
Model
|
AU-GNP0606D
|
AU-GNP1510D
|
AU-GNP2323D
|
AU-GNP3030D
|
|
||||
Frequency
|
902-928MHz
|
|||
Dimension
|
62x62x6mm
|
150x100x6mm
|
230 x 230x 6mm
|
300x300x 6mm
|
Gain
|
0dBi
|
-15dBi
|
-15dBi
|
-10dBi
|
Polarization
|
Circular
|
|||
VSWR
|
≤1.8
|
|||
F/B Ratio
|
≥20
|
|||
Impedance
|
50Ω
|
|||
Max. Power
|
50W
|
|||
Protection
|
DC Ground
|
|||
Connector
|
SMA-Female
|
|||
Net Weight
|
0.1kg
|
0.12kg
|
0.3kg
|
0.4kg
|
Package Dimension
|
17 x 12 x 3cm
|
17 x 12 x 3cm
|
25 x 25 x 3cm
|
33 x 33 x 3cm
|
Gross Weight
|
0.2kg |
0.2kg
|
0.5kg
|
0.6kg
|
Radome Material
|
PVC
|
|||
Radome Color
|
Black
|
|||
Work Temperature
|
-40-70°C
|
Model
|
AU-GNP4020D
|
AU-GNP3224D
|
AU-GNP3523D
|
AU-GNP4032D
|
|
||||
Frequency
|
902-928MHz
|
|||
Dimension
|
400 x 200 x 6mm
|
320 x 240 x 6mm
|
350 x 230 x 6mm
|
400 x 320 x 6mm
|
Gain
|
-10dBi
|
|||
Polarization
|
Circular
|
|||
VSWR
|
≤1.8
|
|||
F/B Ratio
|
≥20
|
|||
Impedance
|
50Ω
|
|||
Max. Power
|
50W
|
|||
Protection
|
DC Ground
|
|||
Connector
|
SMA-Female
|
|||
Net Weight
|
0.8kg
|
|||
Package Dimension
|
42 x 22 x 3cm
|
34 x 26 x 3cm
|
37 x 25 x 3cm
|
42 x 34 x 3cm
|
Gross Weight
|
1kg
|
|||
Radome Material
|
PVC
|
|||
Radome Color
|
Black
|
|||
Work Temperature
|
-40-70°C
|
Model
|
AU-GNP4535D
|
AU-GNP5238D
|
AU-GNP6220D
|
AU-GNP5645D
|
|
||||
Frequency
|
902-928MHz
|
|||
Dimension
|
450 x 350 x 10mm
|
520 x 380 x 6mm
|
620x 205 x 6mm
|
560 x 450 x 6mm
|
Gain
|
-10dBi
|
|||
Polarization
|
Circular
|
|||
VSWR
|
≤1.8
|
|||
F/B Ratio
|
≥20
|
|||
Impedance
|
50Ω
|
|||
Max. Power
|
50W
|
|||
Protection
|
DC Ground
|
|||
Connector
|
SMA-Female
|
|||
Net Weight
|
0.8kg
|
|||
Package Dimension
|
47 x 37 x 3cm
|
54 x 40 x 3cm
|
64 x 22 x 3cm
|
58 x 47 x 3cm
|
Gross Weight
|
1kg
|
|||
Radome Material
|
PVC
|
|||
Radome Color
|
Black
|
|||
Work Temperature
|
-40-70°C
|
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We have super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
