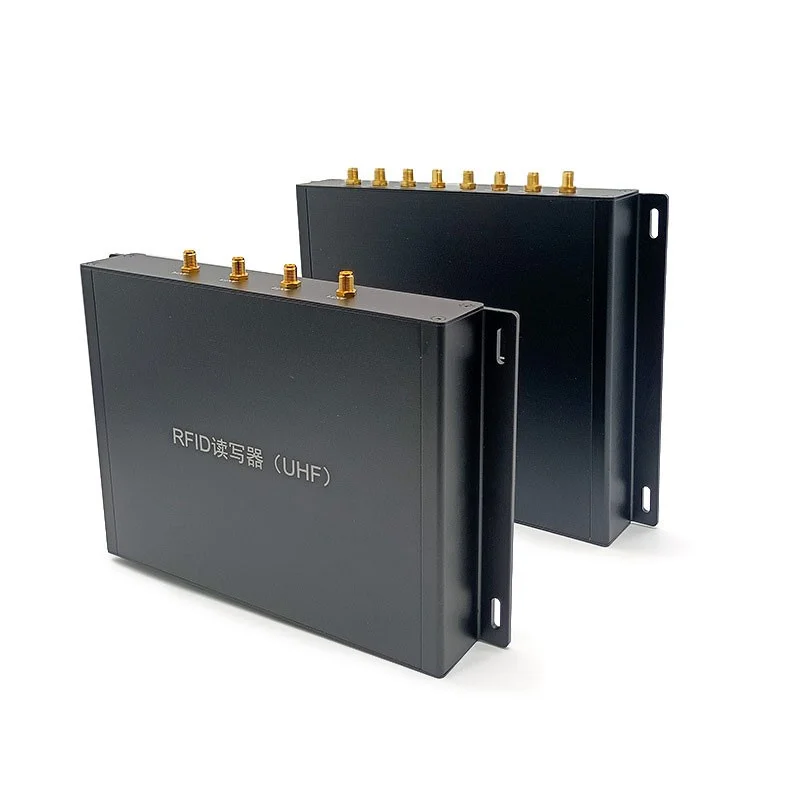

UHF RFID reader multi-channel long-distance split card reader passive electronic tag reader

$180.00
$200.00
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.

Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China

Support Department

Email: support@rfid-life.com

Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed
Description

Main features and main technical specifications

* Support EU 840~868MHz, US 902~928MHz working frequency (or customized)

*Supports EPC Global UHF class 1 gen2 / ISO18000-6C protocol RFID tags.

* Supports temperature sensor RFID tags, humidity sensor RFID tags and some other sensor RFID tags.

*FHSS or fixed frequency transmission.

* RF output power is up to 33dBm.

* Reading range 0~20M.

* Supports active, passive and triggered modes.

* Support independent or joint EPC, TID and USER inventory.

* Support IAP firmware upgrade.

* Low power consumption, using single +12 DC power supply.

* Support USB, RS232, RS485, Weigand, RJ45 (TCP/IP, UDP) interface, Bluetooth, WiFi and PoE optional.

*Supports 4 antenna SMA ports.

* Provide DEMO and SDK for development.

* Supports development based on Windows, Android, C++, C#, JAVA, etc.
