Description

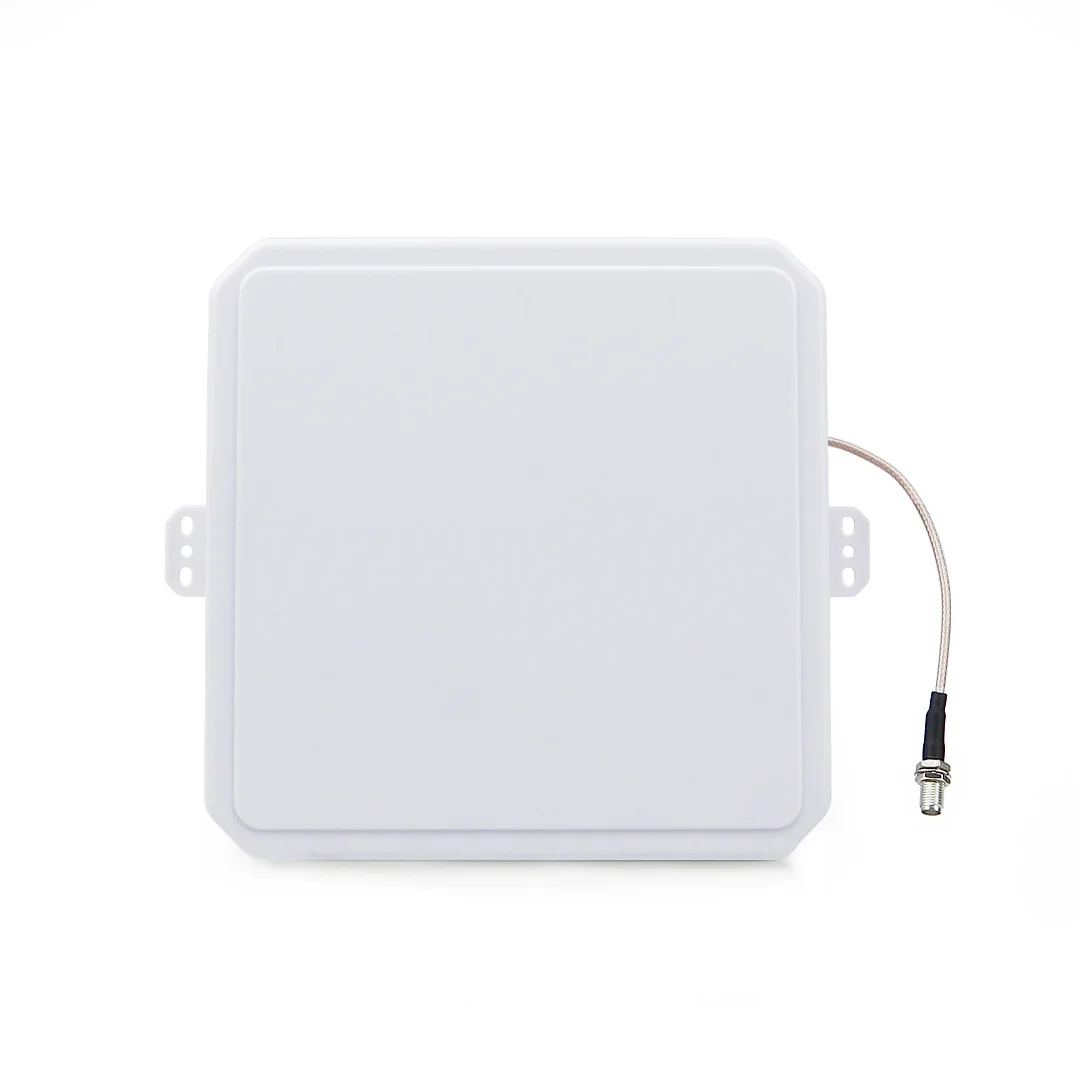

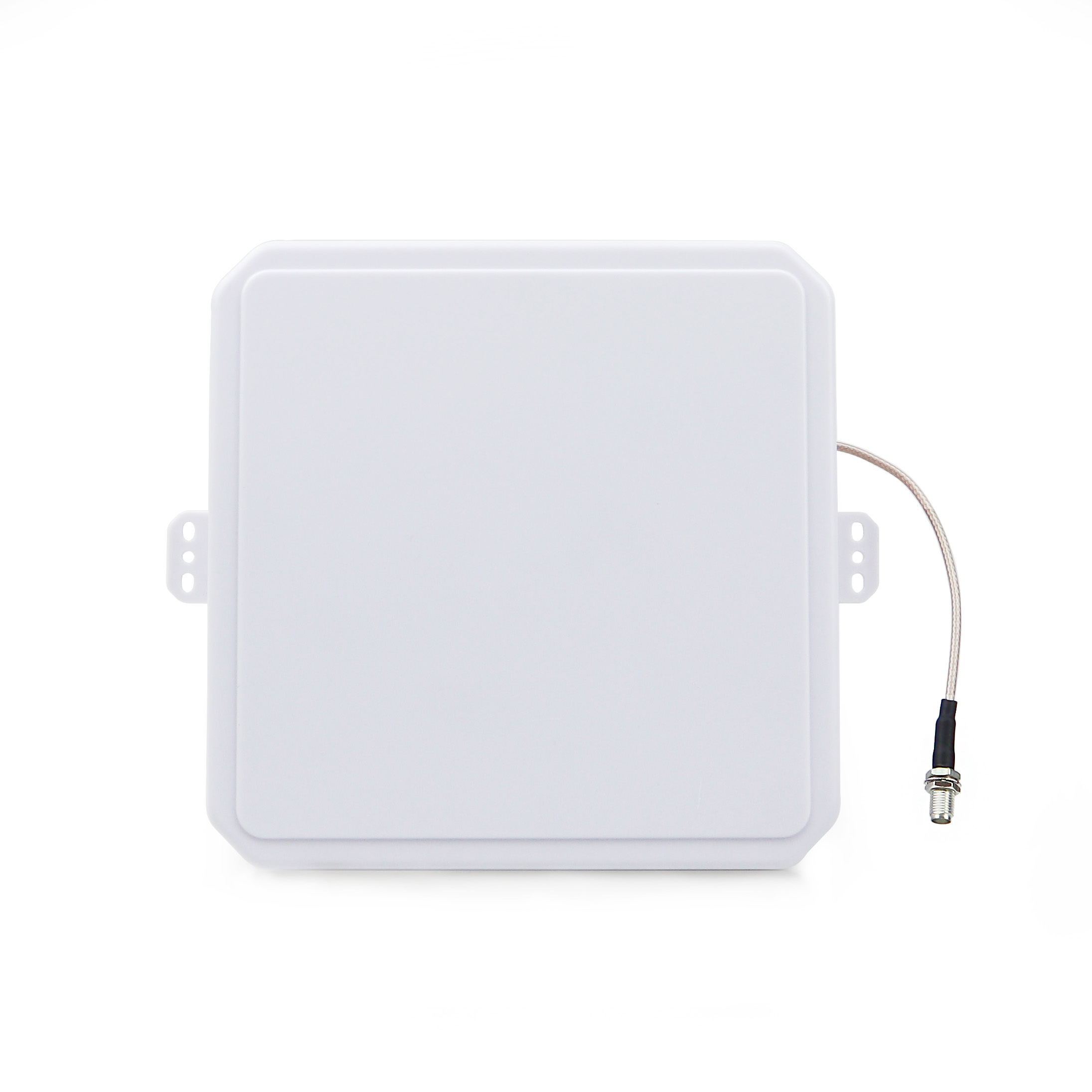

What is the overview of UHF RFID Near Field Tunnel 6dBi Small UHF Antenna With Bracket?
It is a high performance 5.5dBi UHF circular polarization antenna. It can be widely applied in many RFID application systems such as logistics, terminals, parking lots, shopping malls, toll station, access control, and anti-counterfeit and industrial production process control system.
What is the specification of UHF RFID Near Field Tunnel 6dBi Small UHF Antenna With Bracket?
|
Electrical Specifications
|
|
|
Frequency
|
840-960MHz
|
|
Gain
|
>7dBi
|
|
Polarization
|
Circular
|
|
Beam Width
|
Hor:80°/ Ver:65°
|
|
VSWR
|
≤1.4
|
|
Impedance
|
50Ω
|
|
Axial Ratio
|
≤2dB
|
| Mechanical Specifications | |
|
Connector
|
SMA-K
|
|
Connector Position
|
Side
|
|
Antenna Size
|
168*168*22mm
|
|
Net Weight
|
0.302kg
|
|
Radiation Material
|
Aluminum
|
|
Radome Material
|
ABS
|
|
Radome Color
|
White
|
|
Pole Diameter
|
Installation by 2 backrests
|
|
Radome Color
|
White/Yellow
|
|
Operation Temperature
|
-40~55°C
|
What is the dimension of UHF RFID Near Field Tunnel 6dBi Small UHF Antenna With Bracket?
RFID Products in Other Categories
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We has super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
