Product Introduction

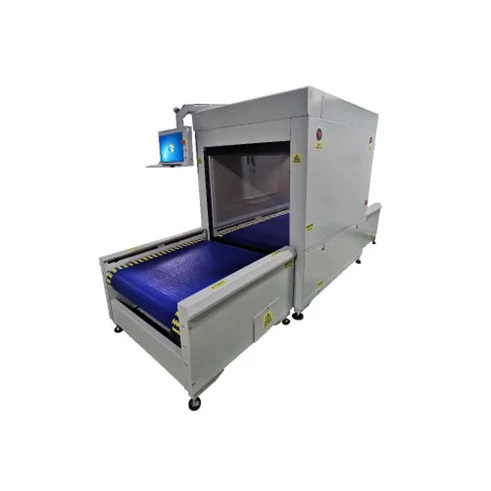

SR-RUX237 RFID Small-size Single Box Tunnel Machine which is independently designed and developed by our company. It takes RFID technology as its core, and combines mechanical design, multiple sensors, electromagnetic shielding, automatic control and other technologies to completely solve the problems of tags omission and cross-reading in the circulation of products in the supply chain, and meet the application needs of fast and accurate product circulation of enterprises. At the same time, the scanning channel cooperates with the warehouse management system to completely overcome the defects of barcode management, realize true single-item management, save labor costs, and greatly improve work efficiency.
Industry Application: The tunnel is mainly used for single pieces identification, such as warehouse management of fashion, cleaning, alcohol, electric power industry, comparison of SKU tag and box label, product inventory, etc.
Product Features
l High identification efficiency: It can read 200+pcs of tags at a time within 3-5 seconds.
l Professional motion control and mechanical design fully solves the problem of tag miss-reading.
l Compact electromagnetic shielding and radio frequency optimization can eliminate the harm of RF radiation to the human body, and the tag reading accuracy reaches 100% (Depends on the reading environment and performance of tags);
l The industrial computer software can control the function of the whole machine and monitor the running status. There are also external mechanical buttons, which are convenient for the operators to control the working status of the equipment at any time.
l Industrial roller conveyor line design fully solves the problem of conveyor line body deviation maintenance.
l There is maintenance door on both sides, which facilitates the equipment maintenance.
l Support the expansion of exception sorting modules to meet the needs of different users and support customers in secondary development of application software.
Specifications
|
Main Specifications |
|
|
Air Interface Protocol |
EPC Global Class1 Gen2/ISO 18000-6C |
|
RFID Frequency |
865~868/902~928MHz (frequency customization optional) |
|
RFID Frequency Mode |
Fixed Frequency / Frequency Hopping, 10 Frequency Hopping Points |
|
Reader |
E710 Solution Reader |
|
Reader Output Power |
1-30dBm |
|
Conveyor Speed |
Up to 30m/min |
|
Conveyor Load Bearing |
Up to 50KG |
|
Efficiency |
5-6 boxes/min |
|
Number of Tag Reading |
200+pcs |
|
Reading Efficiency |
Within 3-5 seconds |
|
Reading Mode |
Motion/Motionless |
|
Operating Mode |
Interval T cycle / Continuous operation / External trigger |
|
Screen |
15.6-inch Resistive Touch (Embedded) |
|
Programmable Controller |
Made in China |
|
Industrial Computer |
J4125/4G |
|
Photoelectric Switch |
8 Groups/Imported |
|
Automatic Conveyor Belt |
Three Conveyors/ Independent Power Control |
|
Material of Conveyor Belt |
Industrial Chain Plate Belt |
|
Electronic Control System |
Chinese PLC |
|
Antenna |
4 Groups of 8dbi Antennas |
|
Load Capacity |
50kg |
|
Adjustable Speed of Conveyor |
0-30m/min |
|
Reversible or not |
Reversible Conveyor |
|
Opening Speed |
2.5 second |
|
Dock With Production Line or Not |
No |
|
Physical Environment |
|
|
Total Size (mm) |
2440 (length) × 1040 (width) × 1680 (height) |
|
Inner size(mm) |
1400 (length) × 800 (width) × 800 (height) |
|
Front/Rear Conveyor Size (mm) |
900 (length) × 970 (width) × 500 (height) |
|
Maximum Passable Size of Box (mm) |
1000 (length) × 750 (width) × 750 (height) |
|
Weighing Module |
Optional |
|
Sorting Module |
Optional |
|
Total Weight |
About 500KG |
|
Operating Temperature |
-20鈩�– 60鈩� |
|
Storage Temperature |
-10鈩儈60鈩� |
|
Operating Humidity |
20 – 95% (non-condensing) |
|
Work Voltage |
220VAC(±10%)50±3HZ |
|
Power |
1000W |
|
Enclosure Material |
Spray-paint Carbon Steel |
|
Shielding Performance |
5-10CM |
