Description
General Description:

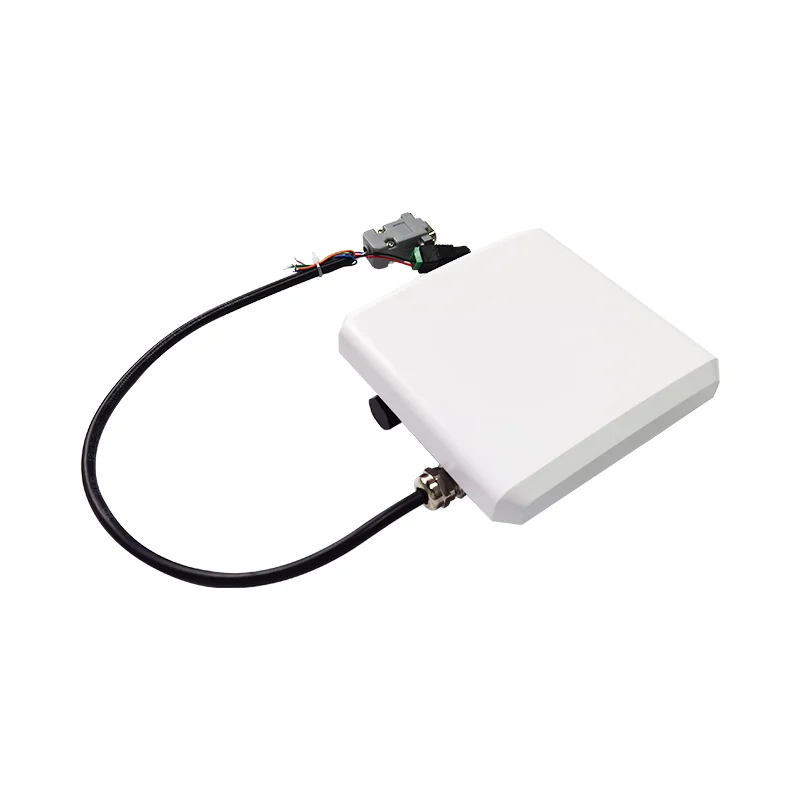

SW6904 is a high performance UHF RFID Trash Can Manage Reader. It is designed mainly for industrial production process control system.
Application:
Trash Can Manage
Industrial production process control
Production flew-line management
Attendance management and more
Electric vehicle management
AGV Car
Features:
1. Self-intellectual property;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 26dBm (adjustable);
6. 4dBi MetalAntenna with effect distance up to 0~3.0m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485 interface, RJ45;
10. Support ModBus.
* Effective distance depends on antenna, tag and environment.
Trash Can Manage
Industrial production process control
Production flew-line management
Attendance management and more
Electric vehicle management
AGV Car
Features:
1. Self-intellectual property;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 26dBm (adjustable);
6. 4dBi MetalAntenna with effect distance up to 0~3.0m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485 interface, RJ45;
10. Support ModBus.
* Effective distance depends on antenna, tag and environment.
Product mode explanation:
|
Model
|
Interface
|
|
SW6904
|
Standard(RS232, RS485, Trigger)
|
|
SW6904T
|
Standard with RJ45
|
Product Technical Parameters
|
Type
|
||
|
Model Number
|
6904
|
|
|
Type
|
UHF RFID Trash Can Manage Reader
|
|
|
Physical parameters
|
||
|
Dimensions
|
133x133x54mm
|
|
|
Net Weight
|
2.0Kg
|
|
|
Gross Weight
|
2.5Kg
|
|
|
Package size
|
40.5*30.5*10.5cm
|
|
|
Shell material
|
ABS and Metal
|
|
|
Color
|
white
|
|
|
Environmental parameters
|
||
|
Operation Temperature
|
-20~+60℃
|
|
|
Storage Temperature
|
-40~+85%
|
|
|
Humidity
|
5%～95% RH, Non-condensing
|
|
|
Waterproof Rank
|
IP67
|
|
|
Performance
|
||
|
Frequency
|
902~928MHz,860~868MHz(frequency customization optional)
|
|
|
Ant.
|
4 dBi Metal Antenna
|
|
|
RF Power
|
0 - 26dBm
|
|
|
Read Distance *
|
0-3.0m * Effective distance depends on antenna, tag and environment.
|
|
|
Write Distance *
|
0-1.5m * Effective distance depends on antenna, tag and environment.
|
|
|
Read Rate
|
200cnt / second
|
|
|
Read Type
|
ISO18000-6C（EPC Gen2）
|
|
|
Reading Prompt
|
Buzzer
|
|
|
Working Voltage
|
DC +9 - 24V, 6W
|
|
|
Work Mode
|
Active mode, Answer mode, Trigger mod, Password mode
|
|
|
Communication
|
RS232, RS485, Trigger,
RJ45(Optional) |
|
|
Net
|
RJ45 support TCP Client/Server, Modbus, DNS, DHCP.
HTTP Protocol(Optional), MQTT(Optional), LLRP(Optional) |
|
|
SDK
|
||
|
SDK
|
Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android, Modbus.
|
|
Download file:
ReaderSoft download address:
http://www.mediafire.com/file/nwlvxzxkgxu2g5x/ReaderSoftV3.1.rar/file
SDK download address:
http://www.mediafire.com/file/cvl207a4bg97b90/SW_SDK_V3.1.rar/file
ReaderSoft download address:
http://www.mediafire.com/file/nwlvxzxkgxu2g5x/ReaderSoftV3.1.rar/file
SDK download address:
http://www.mediafire.com/file/cvl207a4bg97b90/SW_SDK_V3.1.rar/file
