Description
UG-9664HDDAG01 0.95 Inch Full Color 96*64 OLED Display Module SSD1331 COG Parallel LCD 23 Pins OLED Display Module
Product Description
0.95 inch full color OLED 96*64 dot matrix welding 23PIN UG9664HDDAG01 oled color screen
Specification
item
value
Size
0.95inch
Color
Full Color
Module Construction
COG
Product
UG-9664HDDAG01
Driving Method
Passive Matrix
Number of Pixels
96RGB × 64
Active Area (mm)
20.14 × 13.42
Panel Size (mm)
25.70 × 22.20 × 1.5
Pixel pitch (mm)
0.07 x 0.21
Pixel Size (mm)
0.05 × 0.19
Weight
1.8g
Duty
1/64
FPC Pins
23
Color
65,536 Colors
Porwer Supply Voltage
2.4 ~ 3.5V
Frame Rate
100 Frames / Sec
Operating temperature
-30 ~ 70 ℃
Storage Temperature
-40 ~ 80 ℃
Drive IC
SSD1331
Brightness
80 (Min) cd / m2
Power Consumption
90 (Typ) cd / m2
Driving Voltage
14V
Interface
Parallel / 4-wire SPI
Folding Ability
Folding Type
Assembly
Soldering
(Typ)
100 (Typ) cd / m2

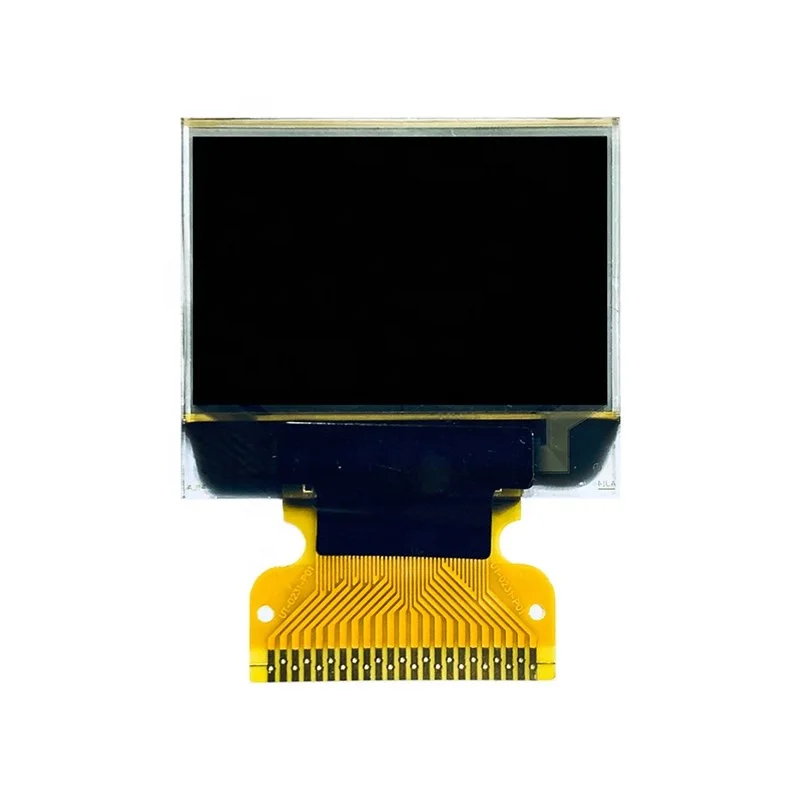

Details Images
