Uart Can Converter Small TTL Serial RS232 / 485 Serial to CAN Adapter Transparent Converter Serial to Can Converter
Product Description

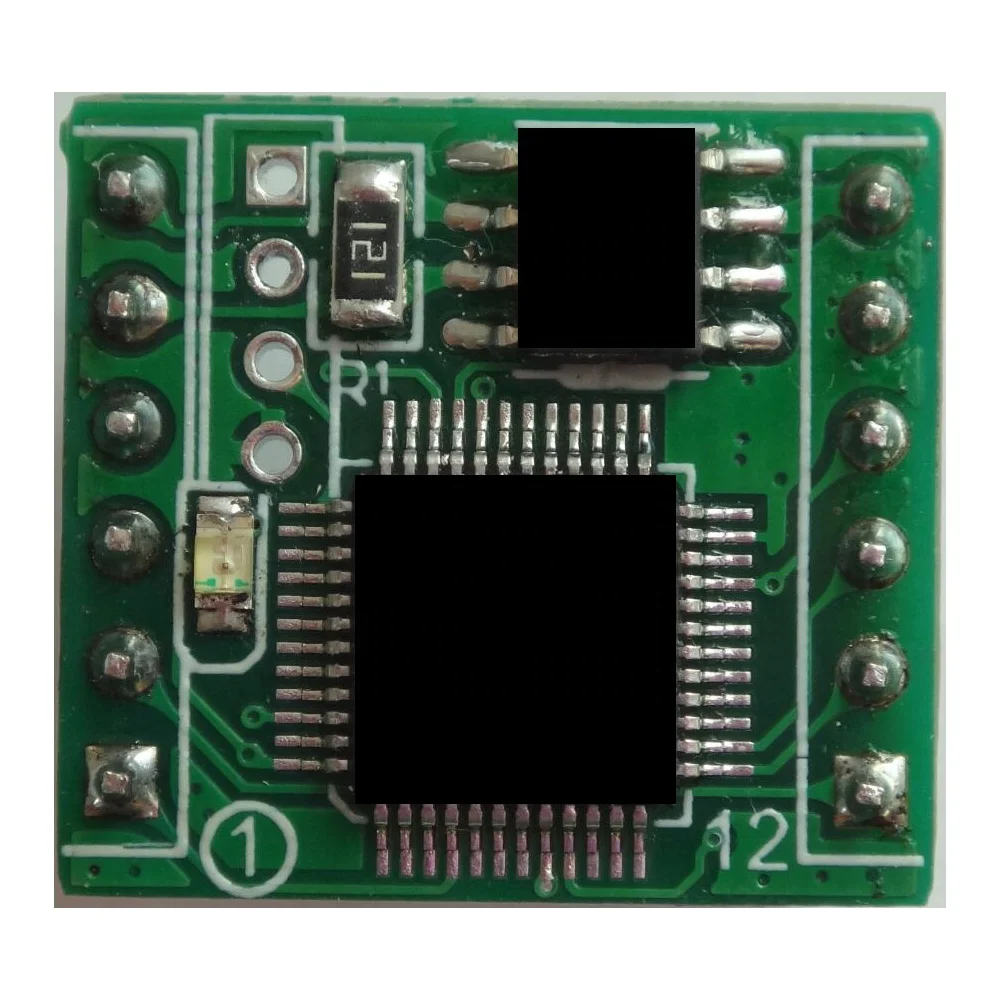

Small and exquisite, high performance, high stability serial to CAN module. It has 1 TTL interface and 1 CAN interface. The baud rate of the serial port supports 1200 ~ 460800bps; the baud rate of CAN supports 10kbps ~ 1000kbps. The firmware of the device can be upgraded through the TTL interface, which is very convenient to use. Can easily complete the interconnection between serial devices and CAN devices.
Hardware features
Power: 3.3V@40ma CPU: 32-bit high-performance processor CAN interface: electrostatic protection; surge protection; excellent EMC performance TTL: baud rate supports 1200 ~ 460800 Communication indicator: on-board RUN, COM, CAN indicator, easy to use Reset / restore factory settings: with reset / restore factory settings signal Working temperature: industrial grade: -4085 ℃ Storage temperature: -65 ~ 165 ℃ Humidity range: 5 ~ 95% relative humidity
Equipment characteristics
· Realize two-way data communication between CAN and TTL; · The firmware of the device can be upgraded through TTL, which is convenient for customizing the firmware; Interface static protection; surge protection; excellent EMC performance; 14 sets of configurable filters; · 3 working modes: transparent conversion, transparent belt logo conversion, format conversion; With offline detection and automatic recovery functions; · Comply with CAN2.0B specification, compatible with CAN2.0A; meet ISO11898-1 / 2/3. · Baud rate supports 10kbps ~ 1000kbps. CAN buffer up to 1000 frames to ensure no data loss; · High-speed conversion, serial port at 115200 baud rate, CAN at 250kbps, CAN transmission speed up to 1270 extended frames / second (close to the theoretical maximum of 1309); serial port at 460800 baud rate, CAN at 1000kbps, CAN transmission speed Up to 5000 extended frames / second;
|
1
|
UART LED, TTL communication indicator signal, you can connect an LED, blink when data is received
|
|
2
|
CANLED, CAN communication indicator signal can be connected to an LED, blinking when data is received
|
|
3
|
RUN_LED, the system running indicator signal can be connected to an LED to indicate whether the system is normal
|
|
4
|
NC, reserved pins must be left floating
|
|
5
|
CANHCAN differential positive, 120 ohm resistor is connected inside the module
|
|
6
|
CANLCAN differential negative
|
|
7
|
3.3V module power supply positive, 3.3V@40ma
|
|
8
|
GND, module power supply negative
|
|
9
|
CFG, reset / restore factory pull down to reset within 5 seconds, restore factory after 5 seconds
|
|
10
|
DIR for RS485 direction control
|
|
11
|
RXDTTL data reception 12, TXDTTL data transmission
|
Module parameter configuration
This module can use "intelligent embedded CAN to serial port configuration software" to realize the parameter configuration of the module through the TTL interface. If the device cannot be connected due to accidental configuration errors, you can use the "CFG" signal to restore the factory parameters (pull down the CFG, hold it for 5 seconds, and release the three green indicator lights after flashing). Serial server configuration software Before configuration, you must know the RS232 / 485 baud rate of the module's last successful configuration. If you forget it, you can restore the module to the factory. The factory parameters are 115200, 8, N, 1:
After obtaining the parameters successfully, you can modify the parameters. After the modification is complete, click "Save Device Parameters", and then restart the device. The following explains the parameters in the configuration software.
