Description
Product Description

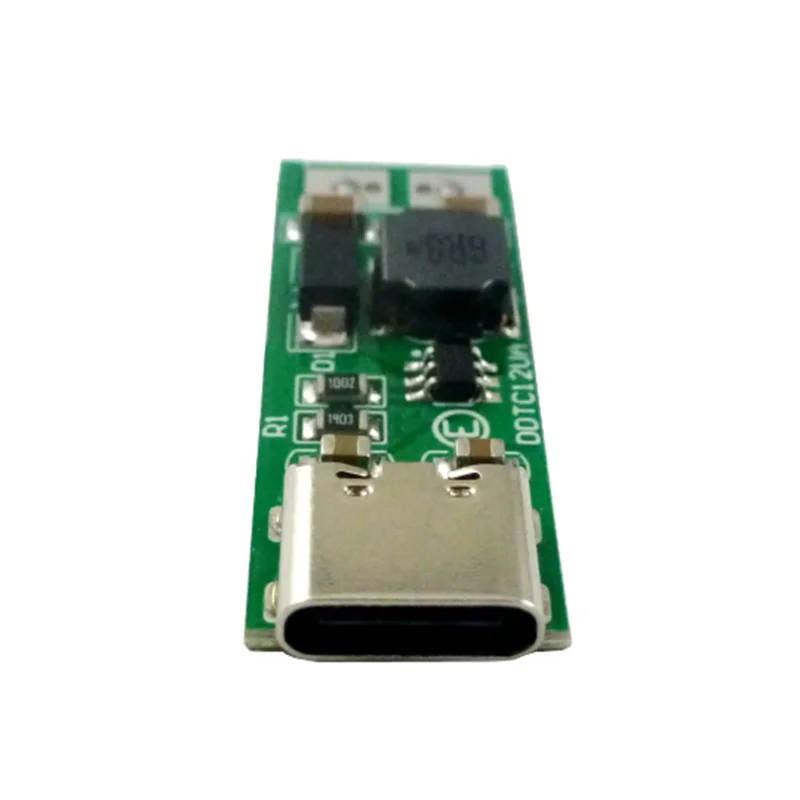

Eletechsup Type-C USB Female Input DC DC Boost Step-up Converter 5V to 6V 9V 12V 15V 24V Power module DDTC12UA
Introduction
Description:
DC DC Boost Converter Module working frequency 1.2MHZ.
Up to 95% Efficiency (usually is 84%-92%)
Quiescent Current (PFM) : 100uA. Quiescent Current (PWM): 1.6mA
Automatic Pulse Frequency Modulation Mode at Light Loads
Under voltage lockout,Current limiting,Thermal overload protection
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
Size : 31mm x 11.5mm x 4.5mm Weight : 2g
Output 6V : Input voltage DC 4.5 ~ 5.5V,output DC 6V±3% Maximum output : 6V/1500MA Input DC 5V 1.32A,Output 6V 1.00A; Input DC 5V 1.63A,Output 6V 1.20A; Input DC 5V 2.00A,Output 6V 1.50A;
Output 9V : Input voltage DC 4.5 ~ 5.5V,output DC 9V±3% Maximum output : 9V/1000MA(See the table below for details) Input DC 5V 1.00A,Output 9V 0.52A; Input DC 5V 1.50A,Output 9V 0.76A; Input DC 5V 2.00A,Output 9V 1.00A;
Output 12V : Input voltage DC 4.5 ~ 5.5V,output DC 12V±3% Maximum output : 12V/750MA(See the table below for details) Input DC 5V 1.00A,Output 12V 0.39A; Input DC 5V 1.50A,Output 12V 0.57A; Input DC 5V 2.00A,Output 12V 0.75A;
Output 15V : Input voltage DC 4.5 ~ 5.5V,output DC 15V±3% Maximum output : 15V/600MA(See the table below for details) Input DC 5V 1.00A,Output 15V 0.31A; Input DC 5V 1.50A,Output 15V 0.45A; Input DC 5V 2.00A,Output 15V 0.60A;
Output 24V : Input voltage DC 4.5 ~ 5.5V,output DC 24V±3% Maximum output : 24V/300MA(See the table below for details) Input DC 5V 1.00A,Output 24V 0.19A; Input DC 5V 1.50A,Output 24V 0.27A; Input DC 5V 1.60A,Output 24V 0.30A;
Applications
Battery powered equipment
Instrumentation, multimeter
Type-c USB equipment
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
Model aircraft
power bank
LED Motor
WIFI Router
PLC RS485 devices
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
