Description
Product Description

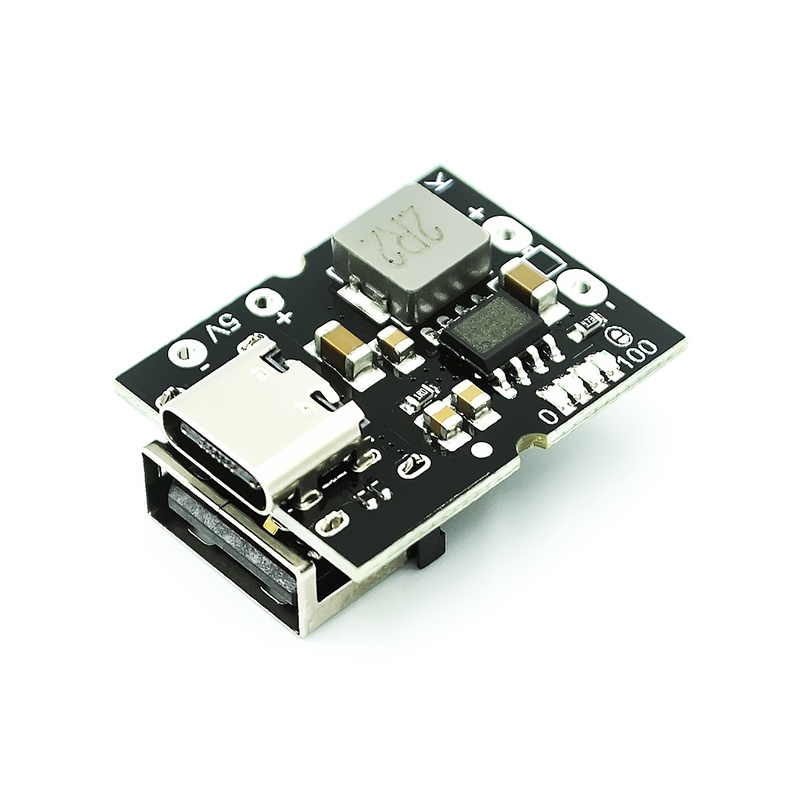

Type-C input compatible with 4.2V/4.35V lithium battery High precision 5V2A integrated charging and discharging module
Introdction
Basic parameter Input voltage range :5~5.5V Charging cut-off voltage: (4.2V/4.35V)0.5% Charging current :24A5% Boost output voltage :5V~5.15V(line loss compensation) Boost output voltage ripple :100mV Boost output current :2A Boost conversion efficiency :92.5%(3.6V input, 5V2A output) Static battery current :<30uA
