Description
Product Description
|
Physical Parameter
|
||
|
Size
|
55mm*45mm*16mm
|
|
|
Material
|
ABS+PC
|
|
|
Color
|
White
|
|
|
Weight
|
20g
|
|
|
Environmental Parameters
|
||
|
Working Humidity
|
<95%
|
|
|
Working Temperature
|
-25 ~ 70℃
|
|
|
Storage Temperature
|
-40℃~ 85℃
|
|
|
Waterproof
|
No
|
|
|
Performance parameter
|
||
|
Static (standby) working current
|
13uA
|
|
|
Operating Voltage
|
3V
|
|
|
Battery
|
CR2450
|
|
|
Working Current (Transmit signal)
|
17mA
|
|
|
Battery Life
|
2Year
|
|
|
Collision Ability
|
>200PCS
|
|
|
2.4G Parameter
|
2.45GHz, 250K rate, FSK modulation
|
|
|
Transmit Time
|
Active 1 time in 20 seconds / Passive 3 times per second
|
|
|
Transmit Power
|
4dBm (factory setting)
|
|
|
Working Distance
|
80m
|
|
|
125Khz/13.56Mhz
|
Optional
|
|
|
125Khz Working Distance
|
<4m
|
|
|
13.56Mhz Working Distance
|
0-3cm
|
|
1. Product Summary

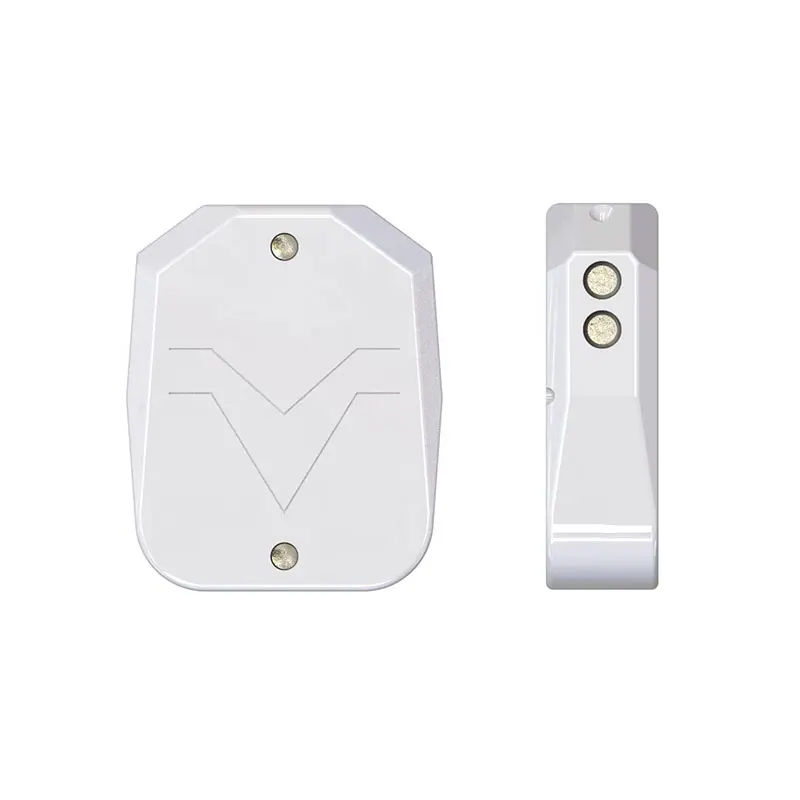

Tool tag is an electronic tag mainly designed for tool management. The electronic tag cooperates with the read-write device through the 2.4G protocol, which can complete the monitoring, tracking, and alarm of the specified tool. The tool tag is fixed on the tool with a steel cable and has a physical tamper-resistant function.
2. Product Feature
● Tri-band support: 2.4G signal transmission, 125K low frequency activation, 13.56MHz identification; ● Reading method: read-only; ● High speed recognition: the highest recognition speed can reach 60 km / h; ● High anti-interference: No special requirements for various interference sources on site; ● Anti-electromagnetic interference: 10V / m0.1 ~ 1000MHz AM AM wave; ● Anti-suddenness: Advanced anti-collision technology can identify more than 200 tags at the same time; ● Security: physical anti-disassembly, anti-drop and anti-impact, no mechanical failure, fully sealed structure, anti-harsh environment, unauthorized removal or destruction, the system triggers an alarm3.Product Feature
● Tri-band support: 2.4G signal transmission, 125K low frequency activation, 13.56MHz identification; ● Reading method: read-only; ● High speed recognition: the highest recognition speed can reach 60 km / h; ● High anti-interference: No special requirements for various interference sources on site; ● Anti-electromagnetic interference: 10V / m0.1 ~ 1000MHz AM AM wave; ● Anti-suddenness: Advanced anti-collision technology can identify more than 200 tags at the same time; ● Security: physical anti-disassembly, anti-drop and anti-impact, no mechanical failure, fully sealed structure, anti-harsh environment, unauthorized removal or destruction, the system triggers an alarm
4.Precautions
● Do not put it into the fire or store it in a high temperature environment over 85 ℃; ● Do not use sharp tools to damage; ● Do not place it near corrosive articles; ● Do not change the parameters, specifications and models of components during maintenance; ● Do not put the tag in a closed space; ● Do not collide with the tag violently; ● Do not use heavy objects to squeeze the tag.
