Max Load weight 260kg
Description
PRODUCT DETAILS

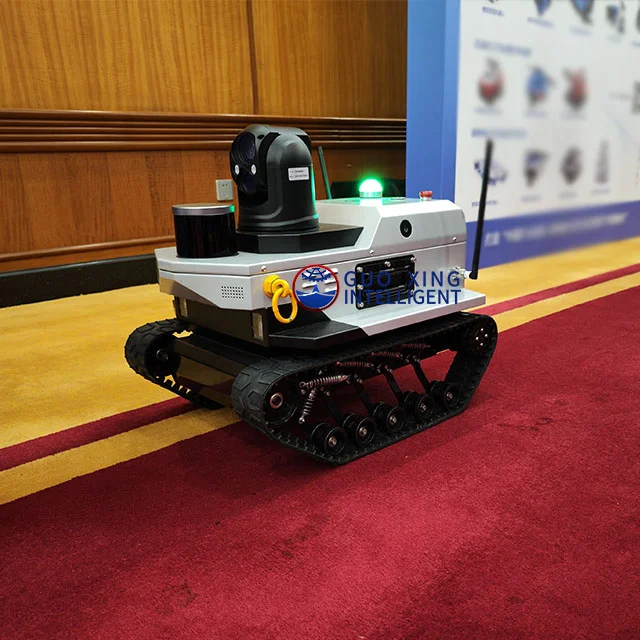

Tracked chassis mobile platform commercial robots ros Lidar robot tank car ugv robot with HD camera safari138T
138T Crawler Robot Chassis is born for steadiness, which can satisfy high requirements for cross-country and steady properties of mini-type investigation robots.
12 damping shock absorbers and unique design of interior and exterior patterns make the chassis smoother and steadier while keeping the grip.
Furthermore, its vibration journey lists top among the same series of products, especially suitable for robots loading various cameras.
Furthermore, its vibration journey lists top among the same series of products, especially suitable for robots loading various cameras.
FEATURES
138T can customize a variety of advanced operation modes, provide motion control CAN protocol, and support secondary development.
Widely used for the development of special robots such as
* Patrol inspection
* Exploration
* Rescue
* Special shooting
* Special transportation
Widely used for the development of special robots such as
* Patrol inspection
* Exploration
* Rescue
* Special shooting
* Special transportation
Water-proof Robot Chassis
Model:
PLT1000
PKT1200
Waterproof grade: IP66,
PKT1200
Waterproof grade: IP66,
Optional IP67
Explosion-proof Robot Chassis
Model:
PKT1100 & Ex
PKT1300 & Ex
Explosion-proof grade:
PKT1300 & Ex
Explosion-proof grade:
Exd(id) II T4 Gb
Waterproof grade: IP67
Heavy Duty Robot Chassis
Model:
LKT1500 Load weight 300kg
LKT2000 Load weight 400kg
LKT2000 Load weight 400kg
Wheeled Robot Chassis
Model:
SV1000 Four wheel differential
HV1000 Front wheel Ackerman steering
OV600 Four-wheeled Four turns
OV600 Four-wheeled Four turns
XH2700 Four-wheel electric steering column
|
Item
|
138T
|
600T
|
PLT-1000
|
Safari-880T
|
Safari-900T
|
LKT1500
|
|||||||
|
Power
|
DC brushless motor
|
DC brushless motor
|
DC brushless motor
|
DC brushless motor
|
DC brushless motor
|
DC brushless motor
|
|||||||
|
Working environment temperature
|
-20℃~55℃
|
-20℃~55℃
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~55℃
|
-20℃~60℃
|
|||||||
|
Suspension system
|
Christie
|
Christie
|
Christie + Matilda four wheel balance suspension
|
Christie + Mathilda 4-wheel balance
|
Christie
|
Christie
|
|||||||
|
Rated power
|
138W*2
|
650W*2
|
1000W*2
|
1KW*2
|
1000W*2
|
2000W*2
|
|||||||
|
Operation speed
|
0~1.2m/s
|
0~1.4m/s
|
0~1.6m/s
|
0~1.6m/s
|
0~1.6m/s
|
0~1.3m/s
|
|||||||
|
Max obstacle clearance
|
50mm
|
170mm
|
180mm
|
200mm
|
160mm
|
220MM
|
|||||||
|
Max climb ability
|
30°
|
35° （able to climb stairs）
|
40° （able to climb stairs）
|
40°（able to climb stairs）
|
35°（able to climb stairs）
|
40°able to climb stairs
|
|||||||
|
RC distance
|
open 100M
|
open 300M
|
open 300M
|
open 300M
|
open 300M
|
open 300M
|
|||||||
|
Working time
|
3H
|
1.5H
|
1.15H
|
1h20m
|
1.5H
|
1.5H
|
|||||||
|
RC function
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
|||||||
|
Size
|
Outer Dimension
|
600*450*190mm
|
1020*760*360mm
|
1100*800*460mm
|
1010*720*435mm
|
1215*820*440mm
|
1650*990*620mm
|
||||||
|
Inner dimension
|
300*240*80mm
|
600*300*230mm
|
800*370*300mm
|
600*320*240mm
|
1050*375*150mm
|
1270*400*310mm
|
|||||||
|
Height of chassis
|
90mm
|
90mm
|
120mm
|
140mm
|
185mm
|
170MM
|
|||||||
|
Width of track
|
80mm
|
150mm
|
150mm
|
150mm
|
150mm
|
150MM
|
|||||||
|
Grounding length
|
330mm
|
540mm
|
740mm
|
740mm
|
760mm
|
995MM
|
|||||||
|
Weight
|
Self weight
|
24kg
|
131KG
|
170kg
|
135kg
|
185kg
|
500KG
|
||||||
|
Load weight
|
20kg
|
70KG
|
100kg
|
Max.120kg
|
100kg
|
300KG
|
|||||||
|
Material
|
Body
|
Stainless steel plate
|
carbon steel
|
Stainless steel plate
|
Stainless steel plate
|
carbon steel
|
Steel pipe
|
||||||
|
Track
|
High quality rubber with Kevlar fiber embedded
|
High quality rubber with Kevlar fiber embedded
|
High quality rubber with Kevlar fiber embedded
|
High quality rubber with Kevlar fiber embedded
|
High quality rubber inlaid with metal and Kevlar
|
High quality rubber with steel plate embedded
|
|||||||
|
Battery
|
Capacity
|
20AH
|
30AH
|
30AH
|
30AH
|
30AH
|
100AH
|
||||||
|
Voltage
|
24V
|
48V
|
48V
|
48V
|
48V
|
48V
|
|||||||
1. Chassis body is made of stainless steel, solid and durable.
2. Independent Christie suspension, shock absorption, more stable.
3. Superior grip, perfect obstacle-crossingperformance.
4. Operation in complex environment.
*Make the industry more convenient!
Also provide completed customized robot solutions!
Users can communicate with the main control through CAN bus protocol.
Application:
Waterway surveying and mapping
Waterway surveying and mapping
Mineral exploration
Pipeline inspection
Security inspection
Firefighting robot chassis
Firefighting robot chassis
Unconventional photographing
Special transportation
Main Parts
Package will include below main parts.
The robot chassis is ready to run when you get the product.
AFTER-SALE SERVICE
1: Online technology support!
2: Free video support
3: Free spare parts during warranty period
4: We have distributor station in Europe, North America, Southeast Asia
5: Worldwide on-site training, maintenance and repair services.
