Description
Product Description

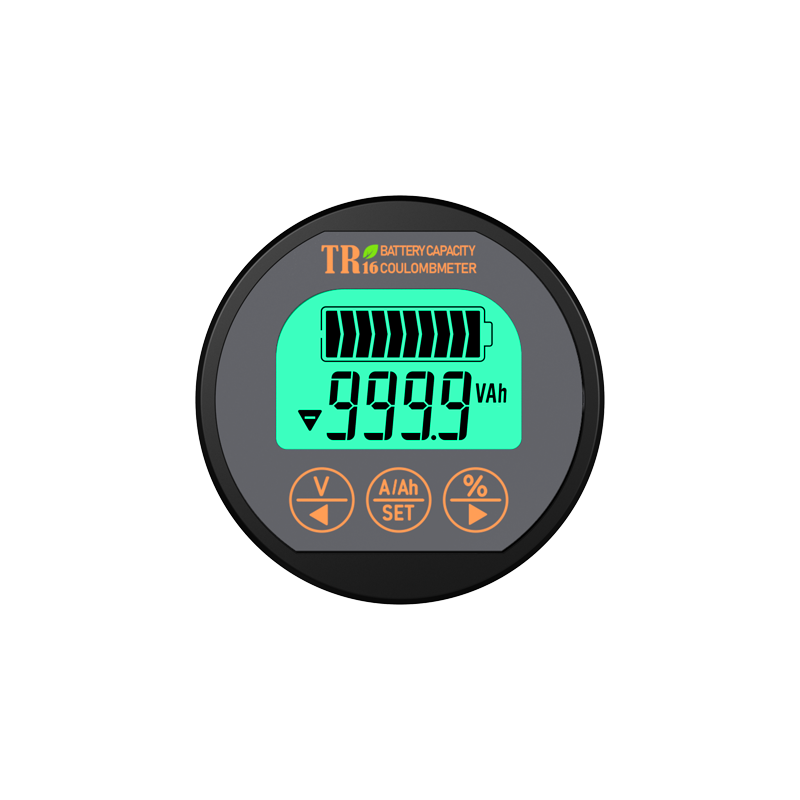

TR16 DC 100V Battery Tester 50A 100A 350A Battery Capacity Tester Digital Waterproof Ammeter Voltmeter
Description:
TR16 is a kind of high accuracy current type battery capacity tester(also known as coulometer), which can test the voltage, current and capacity of battery to help users know the state of battery in time.
TR16 have memory function. It is suitable for mobile and portable equipment, e-bike, balance cars, cleaning machines, instruments, and so on.
Features:
-Full-sealing waterproof design, with stable performance under rainy day, hot environment and cold environment.
-Large capacity design, max 999.9AH settable, compatible with all kinds of batteries.
-High accuracy design, the testing error of charge and discharge quantity of electricity is ≤1%.
-Equipped with LCD display, you can see the electric quantity, voltage, current clearly.
-Suitable for lithium batteries, lithium iron phosphate batteries, leadacid batteries and nickel-metal hydride batteries which working voltage is from 8V to 120V.
-Help testing the voltage, current and capacity of battery to help users know the state of battery in time.
-Suitable for mobile and portable equipment, e-bike, balance cars, cleaning machines, instruments, and so on.
Specifications:
Name: Battery Capacity Tester
Model: TR16
Material: ABS
Testing-range: 8-120V
Current: 50A, 100A, 350A(optional)
Electric quantity display:50A 80V,100A 80V,350A 80V
0AWorking dissipation: 10.0-12.0mA
Standby dissipation: 0.5-0.6mA
Sleep dissipation: 50-60μA
Voltage accuracy: ±1.0%
Current accuracy: ±1.0%
Capacity accuracy: ±1.0%
Backlight on current(50A): 50.0mA
Backlight on current(>50A): 100.0mA
Preset capacity value: 0.1-999 Ah
Current of 50A sampler: 0.0-75.0A
Current of 100A sampler: 0.0-150.0A
Current of 350A sampler: 0.0-500.0A
Temperature-range: -10 to 60 ℃
Item size: 59 * 59 * 20mm / 2.32 * 2.32 * 0.79in
TR16 is a kind of high accuracy current type battery capacity tester(also known as coulometer), which can test the voltage, current and capacity of battery to help users know the state of battery in time.
TR16 have memory function. It is suitable for mobile and portable equipment, e-bike, balance cars, cleaning machines, instruments, and so on.
Features:
-Full-sealing waterproof design, with stable performance under rainy day, hot environment and cold environment.
-Large capacity design, max 999.9AH settable, compatible with all kinds of batteries.
-High accuracy design, the testing error of charge and discharge quantity of electricity is ≤1%.
-Equipped with LCD display, you can see the electric quantity, voltage, current clearly.
-Suitable for lithium batteries, lithium iron phosphate batteries, leadacid batteries and nickel-metal hydride batteries which working voltage is from 8V to 120V.
-Help testing the voltage, current and capacity of battery to help users know the state of battery in time.
-Suitable for mobile and portable equipment, e-bike, balance cars, cleaning machines, instruments, and so on.
Specifications:
Name: Battery Capacity Tester
Model: TR16
Material: ABS
Testing-range: 8-120V
Current: 50A, 100A, 350A(optional)
Electric quantity display:50A 80V,100A 80V,350A 80V
0AWorking dissipation: 10.0-12.0mA
Standby dissipation: 0.5-0.6mA
Sleep dissipation: 50-60μA
Voltage accuracy: ±1.0%
Current accuracy: ±1.0%
Capacity accuracy: ±1.0%
Backlight on current(50A): 50.0mA
Backlight on current(>50A): 100.0mA
Preset capacity value: 0.1-999 Ah
Current of 50A sampler: 0.0-75.0A
Current of 100A sampler: 0.0-150.0A
Current of 350A sampler: 0.0-500.0A
Temperature-range: -10 to 60 ℃
Item size: 59 * 59 * 20mm / 2.32 * 2.32 * 0.79in
