Description
THS4131 differential transmitters and receiver unity gain differential amplifier differential amplifier using op amp
Parameter

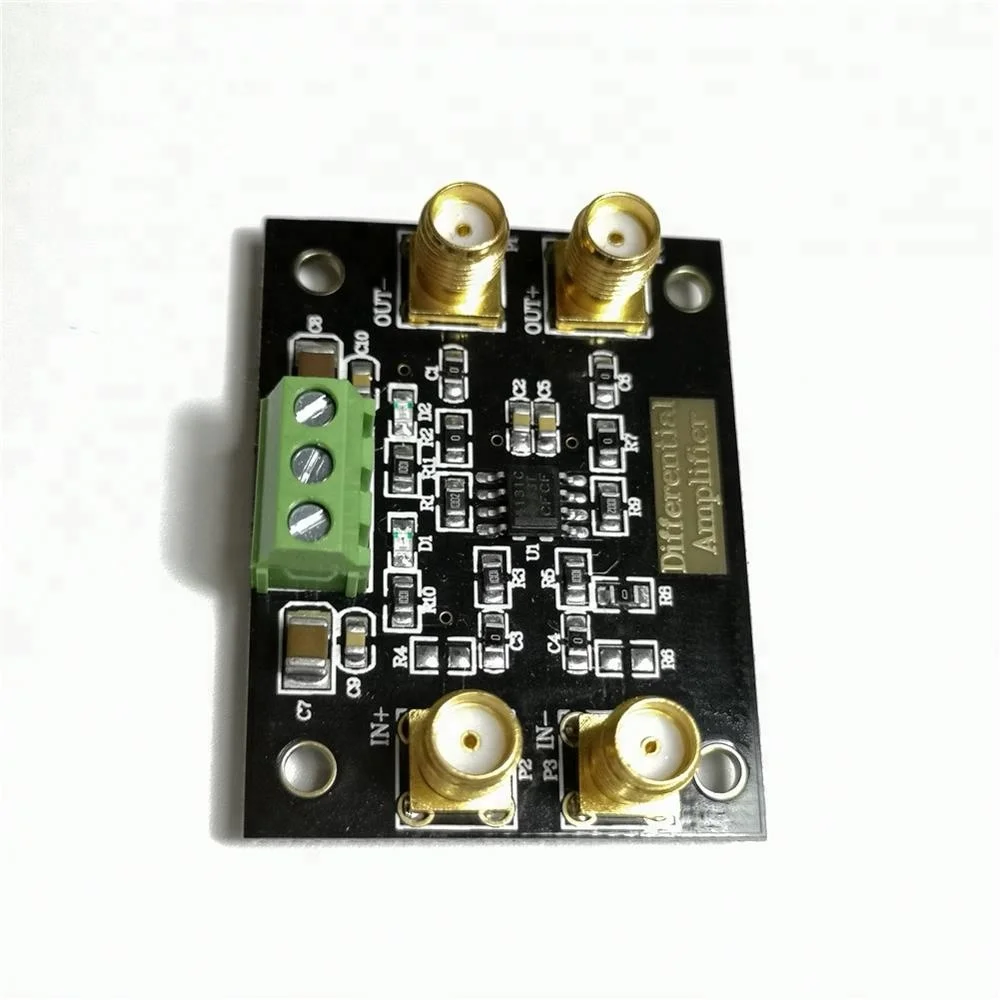

Name: THS4131 Fully Differential Amplifier Size: 45mm X 34mm Supply Voltage Range: 5V Single Supply ±15V Dual Supply Highlights This module can implement single-ended to differential, single-ended input, and double-ended output. Has high performance, low noise, wide power supply voltage range and other advantages. The THS413x device is a member of the advanced Texas Instruments BiComl complementary bipolar process fully differential input/differential output device manufacturing. The THS413x consists of a true fully differential signal path from input to output. This design produced excellent common-mode noise suppression wells that improved total harmonic distortion. Chip features High performance 150 MHz - 3 dB bandwidth (VCC = ±15V) 51V/us slew rate -100dB third harmonic distortion (250kHz) 2. Low noise 1.3 nV/vHz Input Reference Noise Differential input/cent output Balanced Output Suppresses Common Mode Noise Reduce second harmonic distortion from dry differential output 3. Wide supply voltage range VCC-5 V Single Supply to ±15V Dual Supply ICC (SD) = 860 u A Shutdown Mode (THS4130) Chip application Single-ended to differential conversion Differential ADC Driver Differential antialiasing Differential transmitters and receivers Output Level Translator
