Description
Product Description
The through-hole conductive slip ring is a collective name for a series of conductive slip rings with a hole in the center, also called a hollow shaft slip ring, which is mainly used for transmitting precise signals, weak current, high current and high voltage; Mainly designed for gas-liquid pipelines to pass or rotate motor shafts The use of advanced precious metal cluster brush multi-point contact ensures reliable contact under extremely low friction. Through hole diameter from 12.7mm to 210mm Standardized products, in stock Gold plated ring + alloy brush (gold plated) Support signal, power mixing transmission Custom circuit count and current voltage based on standard models

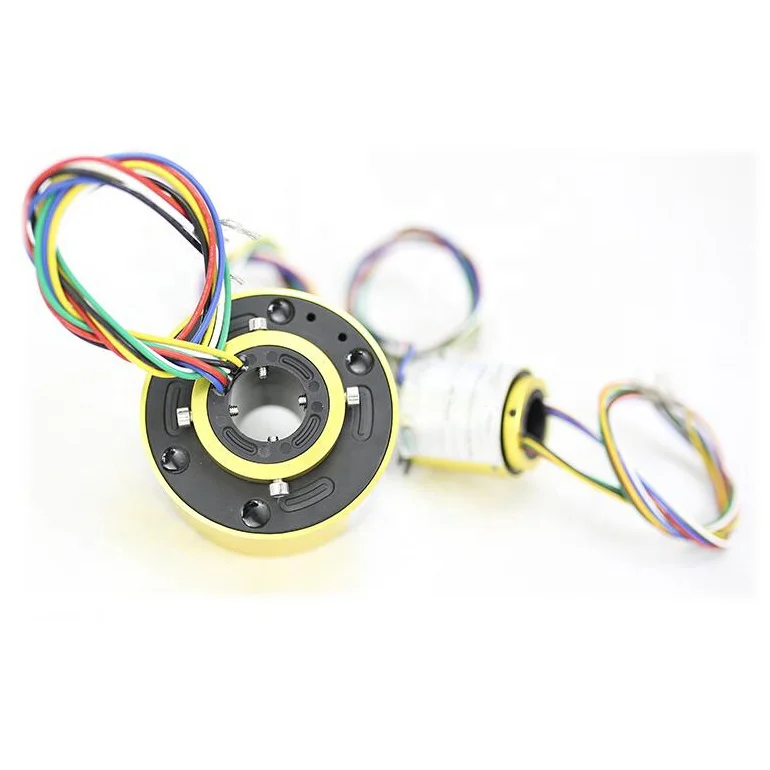

The MT1256 is a standard series of through-hole slip rings (high-speed through-hole slip rings) with a via diameter of 12.7 mm (for any <=12.7 mm) and a 56 mm outer diameter precision conductive slip ring. Support signal (2A), 10A, magnification *10A, voltage 440VAC/VDC. Compared with similar products, it has high rotation precision, stable performance and long life. The contact material is made of precious metal + super hard gold plating, the torque is small, the operation is stable, the service life is long, the resistance fluctuation is small, the contact resistance is small, and the excellent transmission performance is ensured. Typical applications include automation equipment, work turntables, camera heads, robots, etc.
Customizable Parameters:
Customizable parameters: Plant number / aperture / size / current / protection level / slip ring speed Combined transmission video / USB / HDMI / fiber / RF / Ethernet signal Combined gas/liquid
Default send Through hole diameter 12.7mm, outer diameter: 56mm MT1256. Other type please send a message to us.
