Description

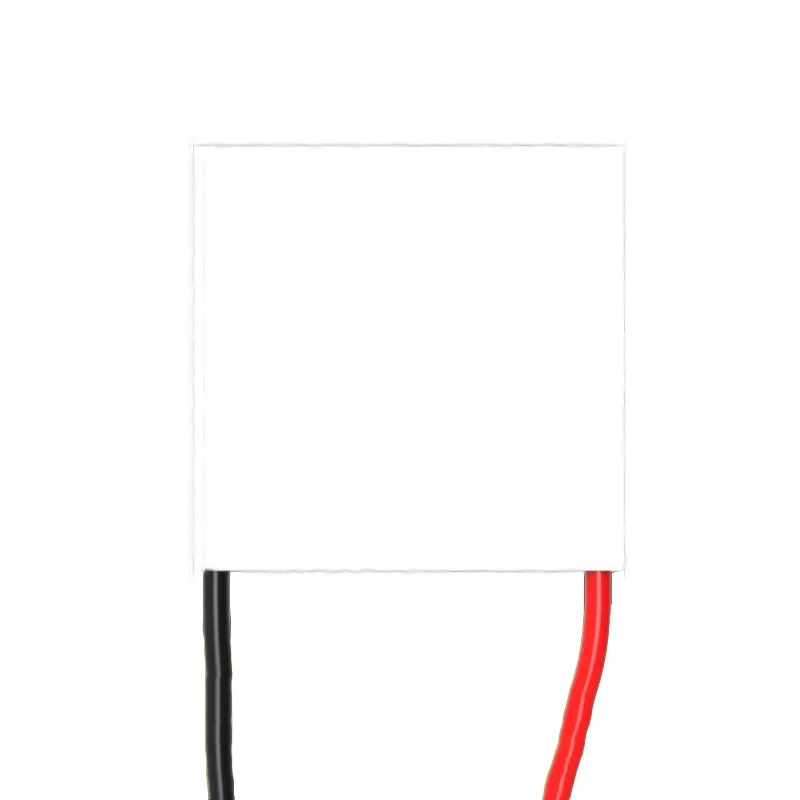

TEP1-126T200 40*40mm Semiconductor Thermoelectric Power Generator High Temp 200 Degree Piezoelectric Ceramic Generator
Product Description
In actual use, some customers achieve a single-chip output of more than 10W. Use temperature between -40 degrees to 200 degrees: Short-term temperature resistance of 240 degrees Long-term working temperature can withstand 200 degrees
Specification
Model
TEP1-126T200
Size
40*40*3.8mm
Lead length
about 20CM
Use
there is a literal close to the low temperature source (heating surface), no literal close to the high temperature source (heating surface). A temperature difference is established between the two sides, and the greater the temperature difference, the greater the power emitted.
Installation Instructions
The red line is the output positive pole, and the black line is the output negative pole. When there is a temperature difference, electricity can be generated.
Installation Precautions
The power generation sheet must be installed on a flat surface (especially the heat dissipation surface) to transfer cold and heat through the thermally conductive metal block. The height error of the installation surface shall not exceed 20 microns, and the temperature of the heating surface shall not exceed 200 degrees. In actual use, it is necessary to pay attention to the temperature transfer of the hot and cold surfaces, and do a good job of heat insulation and heat dissipation.
