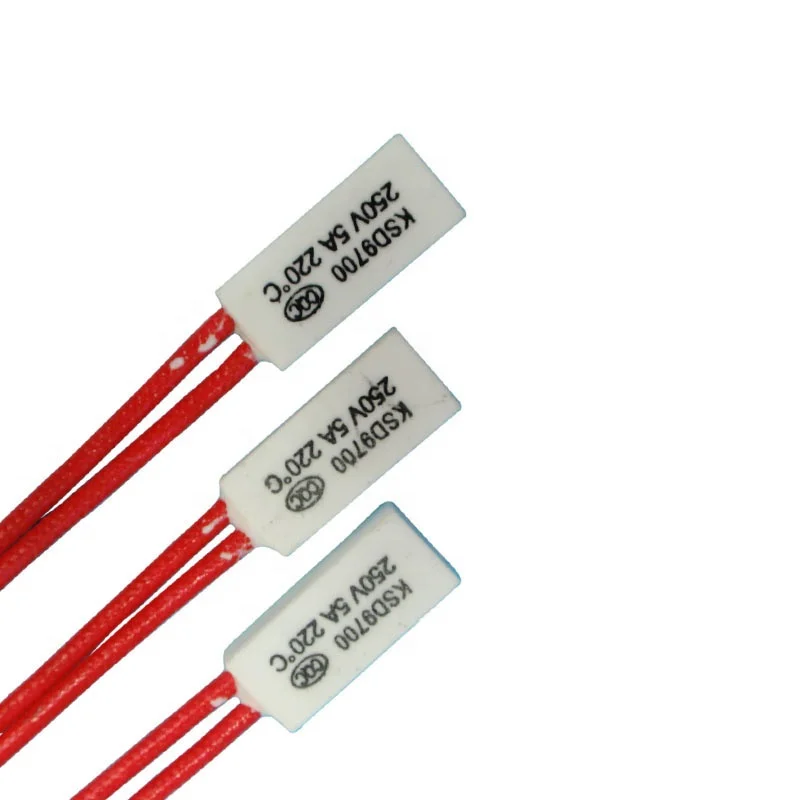

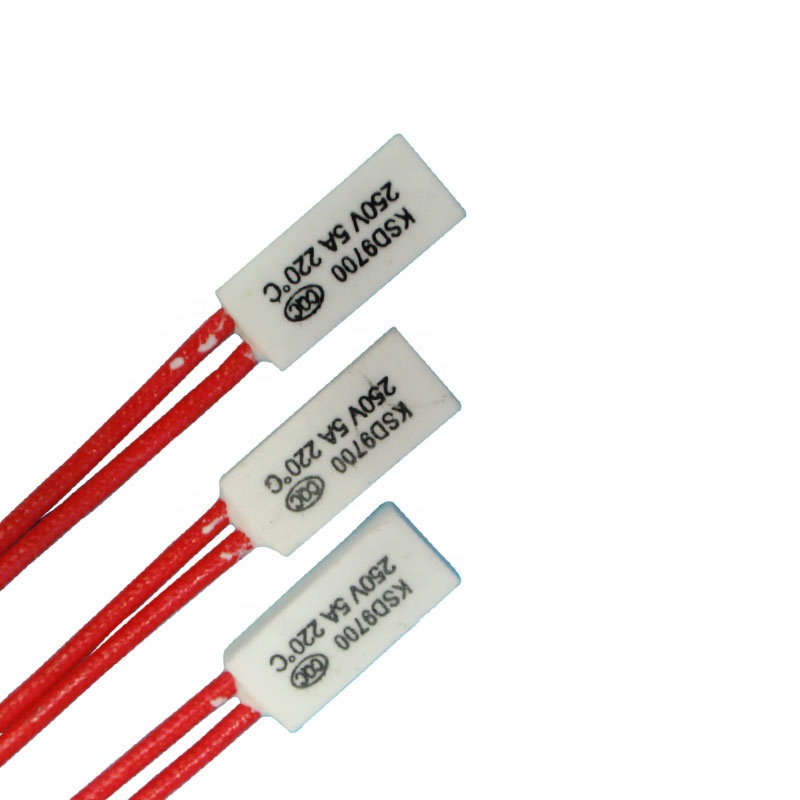

Temperature Control Switch KSD9700 Thermo Protector 0 to 240 Degrees NO NC 5A 10A 250V Thermal Heat Protector Switch
Product Description
We have following can choose, pls leave us a note.
Style: 5A metal normally closed-over temperature power off, 5A metal normally open-over temperature power on, 5A-plastic case-normally closed 5A-plastic case-normally open, 10A-metal case-normally closed, 10A-metal case-normally open, 10A-ceramic shell-normally closed, 10A-ceramic shell-normally open, 16A-metal shell-normally closed, 30A-metal shell normally closed
Temperature range: 0 ℃, 5 ℃, 10 ℃, 15 ℃, 20 ℃, 25 ℃, 30 ℃, 35 ℃, 40 ℃, 45 ℃, 50 ℃, 55 ℃, 60 ℃, 65 ℃, 70 ℃, 75 ℃, 80 ℃, 85 ℃, 90 ℃, 95 ℃, 100 ℃, 105 ℃, 110 ℃, 115 ℃, 120 ℃, 125 ℃, 130 ℃, 135 ℃, 140 ℃, 145 ℃, 150 ℃, 155 ℃, 160 ℃, 165 ℃, 170 ℃, 175 ℃, 180 ℃, 185 ℃, 190 ℃, 195 ℃, 200 ℃, 210 ℃, 220 ℃, 230 ℃, 240 ℃, 245 ℃, 250 ℃
Specification
|
5A plastic case
|
20*8* 4mnm
|
5A 250V/12V/24V (AC and DC universal)
|
||
|
5A metal shell
|
20*7.4*3. 8mm
|
5A 250V/12V/24V (AC and DC universal)
|
||
|
10A metal shell
|
20*7.4*3. 8mm
|
10A 250V/12V/24V (AC and DC universal)
|
||
|
10A ceramic housing
|
20*8.5* 5mm
|
10A 250V/12V/24V (AC and DC universal)
|
||
|
16A metal shell
|
21. 5*8*4. 25mm
|
16A 250V/12V/24V (AC and DC universal)
|
||
|
30A metal shell
|
22*1 3*5.0mm
|
30A 250V/12V/24V (AC and DC universal)
|
||
|
Small plastic shell
|
15*5.4*2. 4mm
|
2A 250V/12V/24V (AC and DC universal)
|
||
|
Medium volume plastic housing
|
1 5*7*3.5mm
|
5A 250V/12V/24V (AC and DC universal)
|
||
|
Cable length default 7cm
|
||||
|
Action temperature （℃）
|
Reset temperature（℃）
|
Action temperature（℃）
|
Reset temperature（℃）
|
|
15
|
≥0
|
125
|
85±15
|
|
20
|
≥5
|
130
|
90±15
|
|
25
|
≥10
|
135
|
95±15
|
|
30
|
≥15
|
140
|
100±15
|
|
35
|
≥20
|
145
|
105±15
|
|
40
|
≥20
|
150
|
110±15
|
|
45
|
≥25
|
155
|
115±15
|
|
50
|
≥30
|
160
|
120±20
|
|
55
|
≥30
|
165
|
125±20
|
|
60
|
40±8
|
170
|
130±20
|
|
65
|
45±10
|
175
|
135±20
|
|
70
|
45±15
|
180
|
140±20
|
|
75
|
50±15
|
185
|
145±20
|
|
80
|
55±15
|
190
|
150±25
|
|
85
|
55±15
|
195
|
155±25
|
|
90
|
60±15
|
200
|
160±25
|
|
95
|
65±15
|
205
|
160±25
|
|
100
|
65±15
|
210
|
165±25
|
|
105
|
70±15
|
215
|
165±25
|
|
110
|
75±15
|
220
|
170±30
|
|
115
|
75±15
|
225
|
170±30
|
|
120
|
80±15
|
230
|
170±30
|
Installation Instructions
Precautions for use
1. Do not deform or collapse the shell during installation! 2. This product is not suitable for temperature sensing in the air, only suitable for contact temperature sensing! (It can be fixed with thermal conductive silicon, cable tie, iron wire, fixing seat or 704 silicone rubber, etc.) 3. The metal case is charged and it is not suitable for working in water. When the plastic shell is put into water to work, the insulating sealant should not be immersed. 4. When the product is installed, the temperature control switch should be close to the installation surface of the controlled appliance. So as not to feel inaccurate.
